Kanish Metals is a well-known supplier and producer of titanium grade 9 bars and rods in Dubai, UAE, that caters to industries with high-performance products with strength, corrosion, and low weight. With consistent quality and international standards compliance, Kanish Metals supplies precision-engineered titanium products designed to suit critical applications. Titanium grade 9, or Ti-3Al-2.5V, boasts an excellent strength-to-formability ratio, suitable for aerospace, marine, and industrial applications. Kanish Metals, with prompt delivery and customer-oriented quality, is a reliable supplier of high-quality titanium solutions in the Middle East and the world.
Titanium grade 9 bars and rods consist of around 90% titanium, 3% aluminum, and 2.5% vanadium. This alpha-beta alloy is highly resistant to corrosion, particularly in seawater and chemical exposure. Mechanically, it provides a tensile strength of approximately 620 MPa and yield strength of approximately 480 MPa, good ductility, and resistance to fatigue. Titanium grade 9 is weldable and formable, which makes it distinct from stronger but less workable titanium grades. Such properties make it suitable for structural elements demanding moderate strength and ease of fabrications at the expense of corrosion resistance.
| Grade | GRADE 9 TITANIUM ROUND BAR |
|---|---|
| Grade 9 Titanium Square bar size | 4 to 100mm |

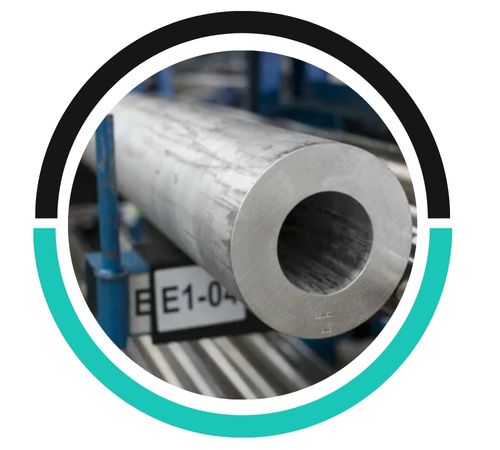

| Titanium Grade 9 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Grade 9 Titanium Alloy Hex Bar size | 2-100mm A/F |
| Grade 9 Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

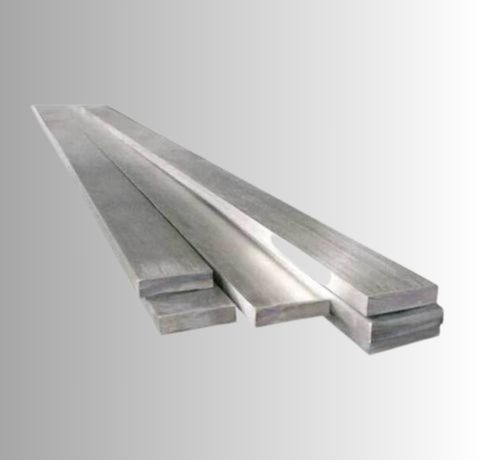

| Titanium Grade 9 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Grade 9 Titanium Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Grade 9 Titanium Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Grade 9 Section | 3.0 to 12.0mm thickness |
| Grade 9 Titanium Alloy Round bar size | Diameter: 3-~800mm |
| Grade 9 Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Grade 9 Round Bar Standard Dimensions | Diameter / Height: |
| Grade 9 Titanium Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Grade 9 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Grade 9 Titanium Alloy Technique | Grade 9 Titanium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Grade 9 Titanium Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

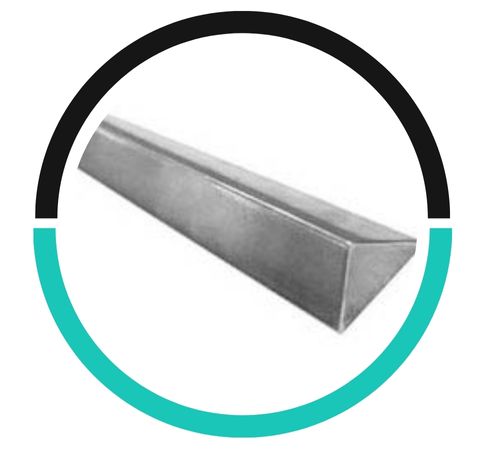

| Form | Grade 9 Titanium Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Grade 9 Titanium Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 9 | 3.7195 | R56320 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 620 | 520 | 15 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.48 g/cc | 0.162 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

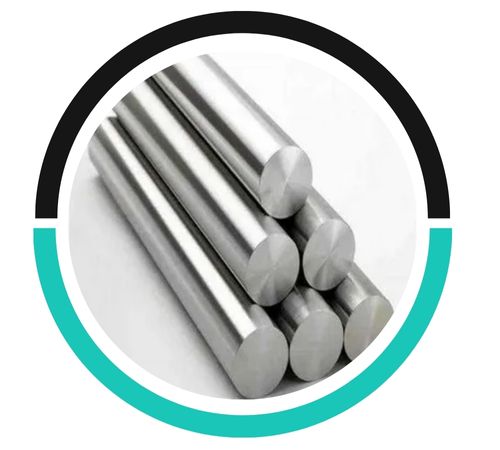

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 9 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Yes, Titanium Grade 9 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
Titanium 9 bars and rods are extensively applied in situations where strength, lightness, and corrosion resistance are paramount. In the aerospace sector, they are utilized for the use of hydraulic tubing, airframe parts, and exhaust systems. In naval applications, they are used in boat skeletons, masts, and fittings because of the superior resistance to sea water. The alloy is also widely used in the chemical processing and medical fields for equipment and implants. It is also used in sports equipment such as bicycles and golf clubs, balancing performance and durability. Its broad range of properties makes it ideal for both structural and functional applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
