Kanish Metals is a prominent manufacturer and exporter of titanium grade 4 bars and rods in Dubai, UAE, providing top-quality titanium material for critical industrial use. Known for providing high-performance materials, Kanish Metals guarantees that every titanium grade 4 product matches international quality standards. Recognized for being the strongest of commercially pure titanium grades, titanium grade 4 is also resistant to corrosion and possesses good formability. Kanish Metals is dedicated to precision, reliability, and customer satisfaction, providing industries like aerospace, marine, chemical processing, and medical with reliable and long-lasting titanium solutions.
Titanium grade 4 bars and rods consist of about 99.2% pure titanium with traces of oxygen, nitrogen, carbon, and iron to provide additional strengthening. It is the strongest of the commercially pure grades of titanium with a tensile strength of around 550–670 MPa and a yield strength of about 480–600 MPa. It possesses good corrosion resistance, especially in oxidizing and chloride environments. Grade 4 is weldable and possesses excellent formability but is less ductile than grades 1 to 3. It exhibits a high strength-to-weight ratio and resistance against severe chemicals, thus suitable for applications with high performance.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

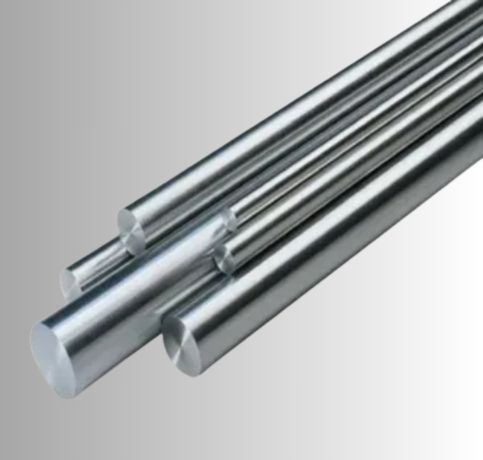

| Round bar size : | Diameter: 3-~800mm |

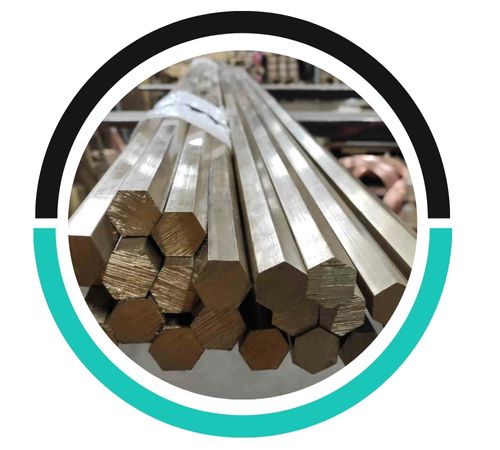

| Hex Bar size : | 2-100mm A/F |

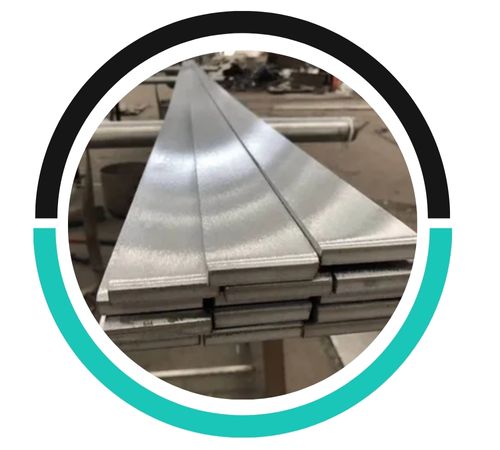

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

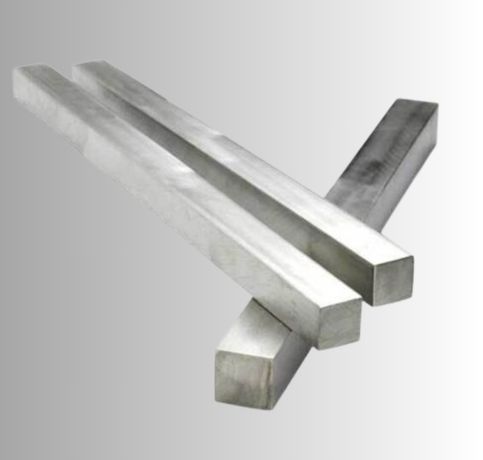

| Square bar size : | 4 to 100mm |

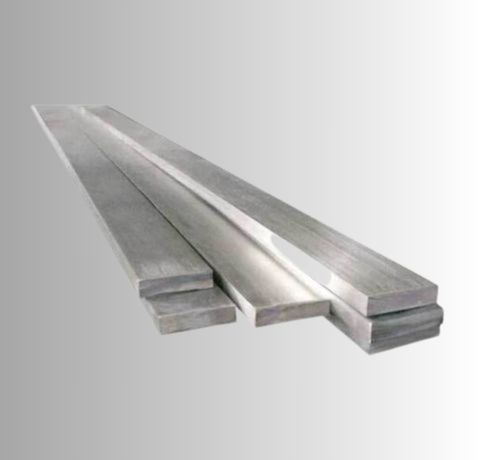

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

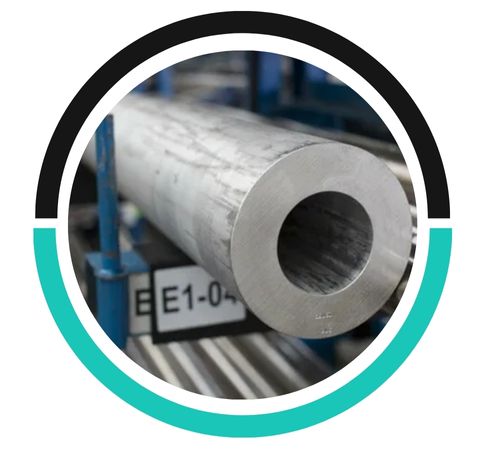

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Titanium grade 4 bars and rods find broad application in those industries that demand high strength, corrosion resistance, and biocompatibility. In the aerospace industry, they are applied in airframe structure and engine parts that face extreme operating conditions. Chemical processing industries employ them in heat exchangers, reactors, and piping systems as a result of their corrosive agent-resistant properties. In the marine environment, they prove to be perfect for saltwater-exposed components. Medical industries also take advantage of titanium grade 4, especially in surgical implants and orthopedic appliances. Its reliability and strength qualify it for power generation, desalination, and oil and gas applications too.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
