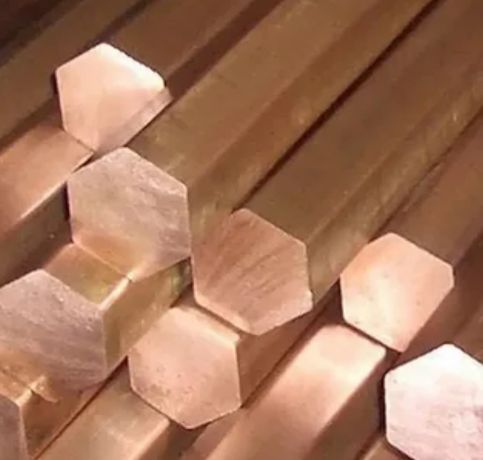

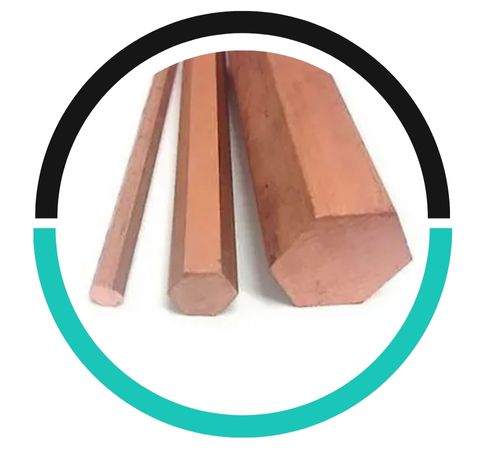

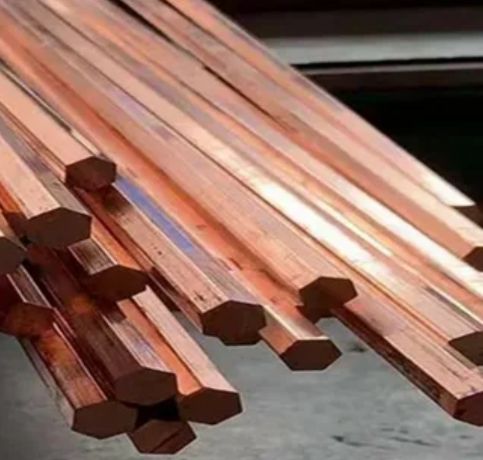

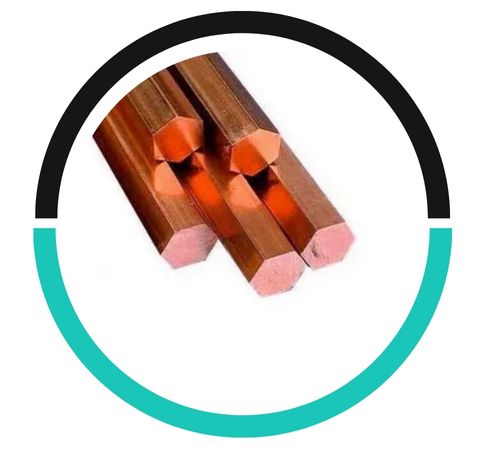

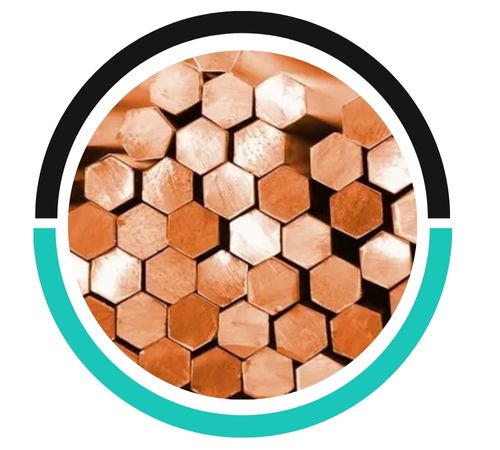

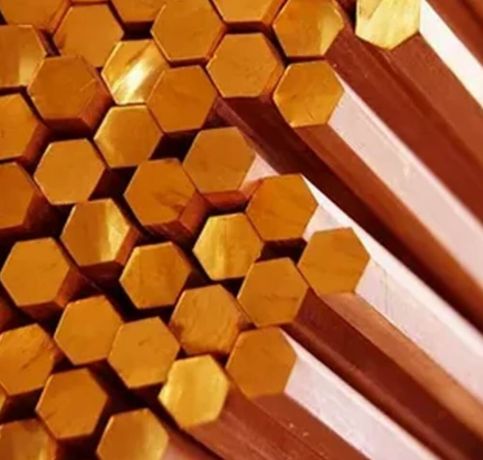

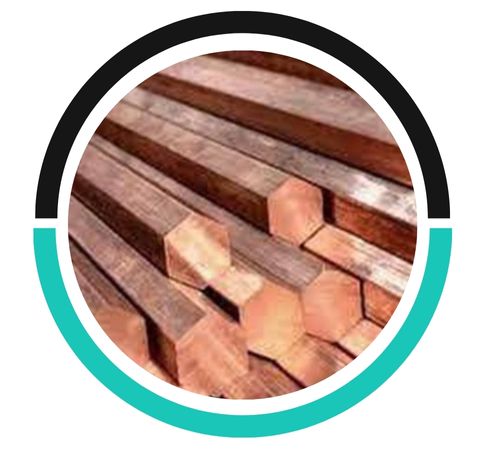

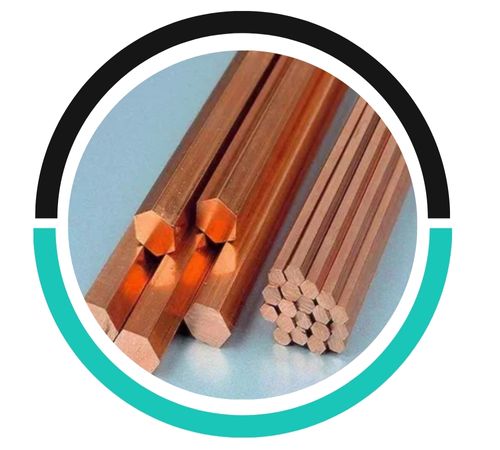

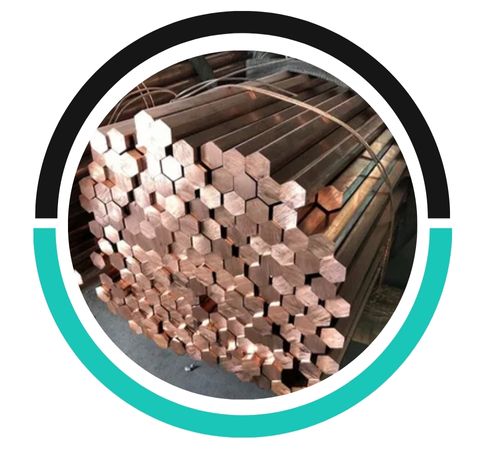

Kanish Metals stands out as a top-notch manufacturer and supplier of premium Copper Nickel Hex Bars in Dubai, UAE. We cater to industries that demand exceptional corrosion resistance and strength. Our hex bars are meticulously crafted to meet international standards, ensuring they hold up beautifully in tough marine and chemical settings. Renowned for their impressive resistance to seawater corrosion and biofouling, these bars find their place in shipbuilding, desalination, and chemical processing. At Kanish Metals, we pride ourselves on delivering reliable, high-performance Copper Nickel hex bars with consistent quality and prompt delivery throughout the UAE and Middle East.
When it comes to composition and mechanical properties, Copper Nickel Hex Bars typically feature either 90% Copper and 10% Nickel (CuNi90/10) or 70% Copper and 30% Nickel (CuNi70/30), along with small amounts of iron and manganese to boost their mechanical strength and corrosion resistance. These alloys showcase tensile strengths between 350 and 550 MPa and elongation rates of 20% to 40%. They excel in resisting seawater corrosion, erosion, and biofouling, while also offering good thermal conductivity and weldability. Their robust mechanical properties and corrosion resistance make them perfect for challenging marine and industrial applications.
| Properties | Description |
|---|---|
| Standard | ASTM B 111 |
| Range | 5 mm To 500 mm thick in 100 mm TO 6000 mm |
| Wire Range | 50 Swg. to 4 Swg. |
| Length | 100 mm to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh |
| Application | Sea water pipework, Offshore fire water systems, Heat exchangers and condensers, Sheathing of legs and risers on offshore platforms and boat hulls, Hydraulic lines, Fish cages for aquaculture, Desalination units. |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| CUNI Hex Bar | Size(mm) | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 | 45 | 50 | 56 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WT / mtr (KG) | 2.05 | 2.59 | 2.49 | 3.87 | 5 | 6.27 | 7.2 | 8.19 | 10.37 | 11.55 | 12.8 | 16.2 | 20 | 25.08 | |
| WT / feet (KG) | 0.62 | 0.79 | 0.76 | 1.18 | 1.52 | 1.91 | 2.19 | 2.5 | 3.16 | 3.52 | 3.9 | 4.94 | 6.1 | 7.65 |
| Hex bar – metric sizes and weights | ||
|---|---|---|
| Size | KG’s / metre | Standard length (m) |
| 13 x 5 | 0.46 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 10 x 3 | 0.24 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Copper Nickel Hex Bars are widely utilized in marine engineering for creating seawater piping systems, condenser tubes, and components for offshore platforms, thanks to their remarkable corrosion resistance. They’re also essential in the chemical processing sector for equipment that comes into contact with aggressive fluids, as well as in desalination plants where resistance to saltwater is vital. Beyond that, these bars are integral to shipbuilding, power generation, hydraulic systems, and cooling equipment. Their outstanding durability and resistance to biofouling make Copper Nickel hex bars ideal for long-term use in harsh, corrosive environments, ensuring they perform reliably over time.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
