Kanish Metals is a reliable manufacturer and exporter of titanium grade 11 rods and bars in Dubai, UAE, offering high-quality titanium materials designed for exceptional performance under severe chemical and marine conditions. With emphasis on international compliance, precision, and quality, Kanish Metals provides titanium grade 11 products that are highly resistant to corrosion, particularly under reducing and mildly oxidizing conditions. Titanium grade 11 is similar to grade 1 but with the addition of palladium for increased corrosion protection. Used in industries like chemical processing, oil and gas, and desalination, Kanish Metals provides reliable supply and product integrity consistency.
Titanium grade 11 bars and rods consist of commercially pure titanium with a trace addition of palladium (0.12–0.25%), which considerably enhances corrosion resistance in acidic and chloride-bearing environments. This alloy possesses mechanical properties comparable with grade 1, having a tensile strength of approximately 240–370 MPa and a yield strength of about 170–275 MPa. Titanium grade 11 retains high ductility, weldability, and cold formability. The inclusion of palladium extends its crevice corrosion and stress corrosion cracking resistance, making it suitable for applications where performance is critical in hostile chemical and marine environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

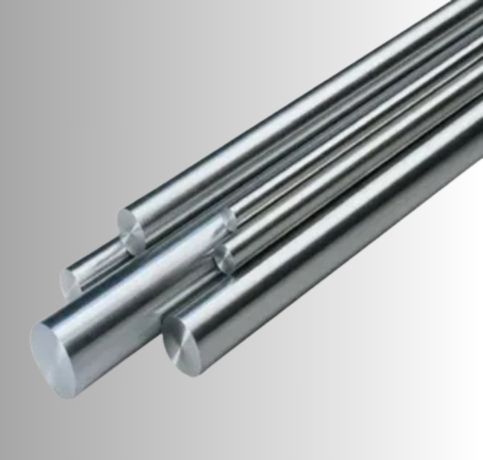

| Round bar size : | Diameter: 3-~800mm |

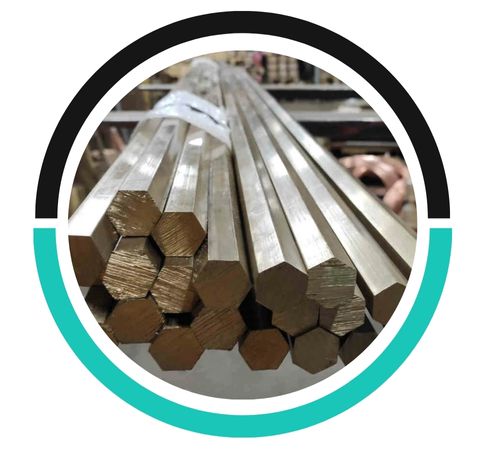

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

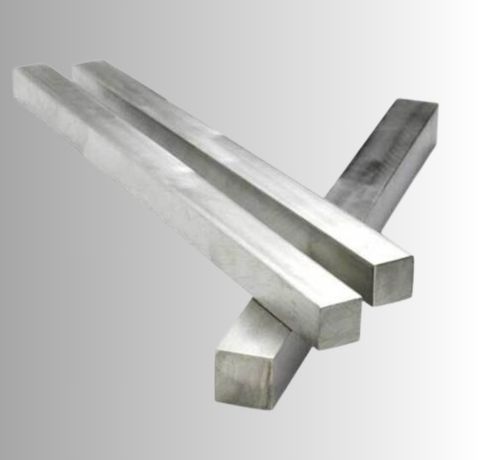

| Square bar size : | 4 to 100mm |

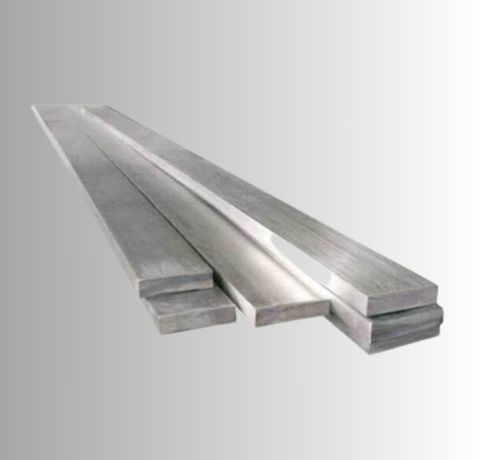

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium 11 bars and rods find extensive use in processes that involve remarkable corrosion resistance in demanding environments. In chemical processing, they are well suited to process acidic or chloride solutions in heat exchangers, pressure vessels, and piping systems. In offshore and marine applications, they provide sustained performance in saltwater exposure. The oil and gas sector employs this alloy for sour gas as well as corrosive media. Grade 11 is also utilized in pollution control systems and desalination plants, where its high corrosion resistance and formability provide durability, safety, and low maintenance in harsh operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
