Kanish Metals is a reliable Hastelloy X Bars and Rods manufacturer and supplier, located in Dubai, UAE, providing high-quality products designed for durability in high temperatures and corrosion resistance. Hastelloy X is a nickel-based superalloy used extensively in harsh environments where oxidation, thermal stress, and mechanical load are ubiquitous. Kanish Metals provides precision-made bars and rods to international specifications, which guarantee performance and durability in mission-critical applications. With emphasis on quality, customization, and timely delivery, Kanish Metals provides services to industries like aerospace, petrochemical, heat treatment, and power generation within the UAE and international markets.
Hastelloy X consists mainly of nickel (~47%), chromium (~22%), iron (~18%), and molybdenum (~9%), along with minute quantities of cobalt and other components for improved performance. This alloy possesses outstanding oxidation resistance up to 1200°C, combined with good formability, weldability, and creep-rupture strength. It generally possesses tensile strength of approximately 750–850 MPa and retains its mechanical properties in conditions of high stress, high temperatures. Hastelloy X is also resistant to stress-corrosion cracking and carburization and is thus applicable both structurally and thermally under severe conditions.
| Standards : | ASTM B572, ASME SB572 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

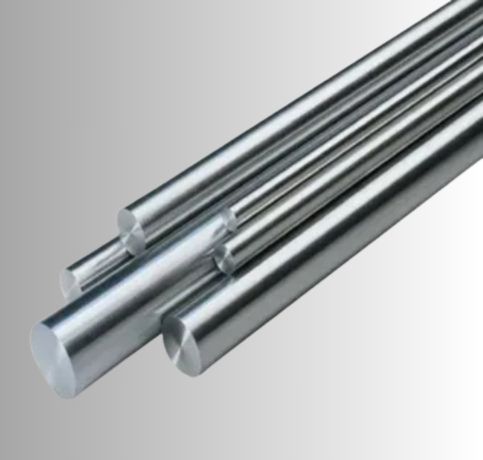

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

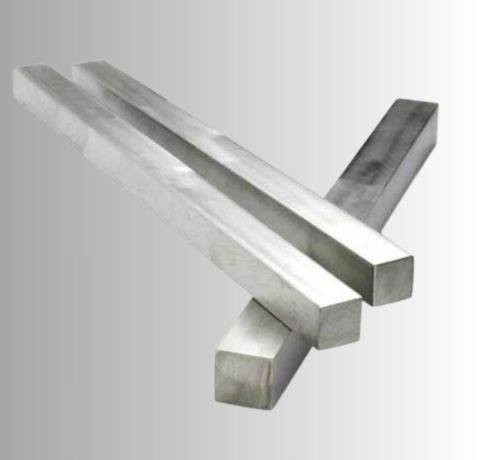

| Square bar size : | 4 to 100mm |

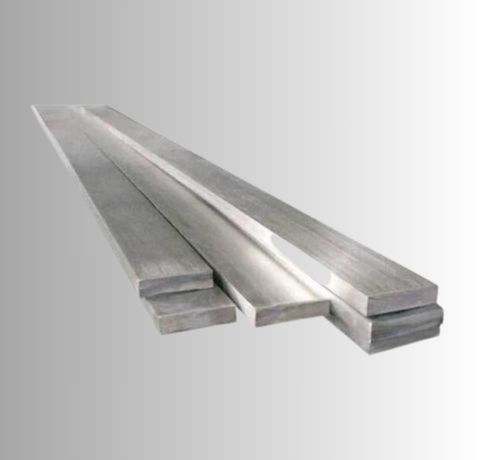

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | C0 | S | Fe | Ni | Cr | Mo | P |
| Hastelloy X | 0.05 – 0.15 | 1.00 max | 1.00 max | 0.50 – 2.50 | 0.03 max | 17.00 – 20.00 | Balance | 20.50 – 23.00 | 8.00 – 10.00 | 0.04 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Hastelloy X rods are typically available in sizes ranging from 1/8" to 6" in diameter, with custom sizes also offered. Common finishes include hot-rolled, cold-drawn, and polished finishes to suit various applications.
Yes, Hastelloy X rods can be welded using standard welding techniques. They require careful control of heat and welding parameters to maintain their high-temperature resistance and strength.
Hastelloy X bars are known for their exceptional high-temperature strength, oxidation resistance, and excellent resistance to thermal-fatigue and stress-corrosion cracking. They also offer excellent weldability and formability for demanding applications.
Hastelloy X Rods and Bars are utilized extensively in applications involving high temperature strength and corrosion resistance. Typical uses are in gas turbine engine parts, combustor cans, afterburners, furnace components, heat exchangers, and petrochemical reactor systems. The alloy is well suited to aerospace and industrial processes where thermal cycling and oxidation resistance is needed. It is also employed in chemical plants and nuclear reactors owing to its strength at high temperatures and its resistance to aggressive chemicals. Hastelloy X is a material of choice for parts that are subjected to extreme thermal as well as mechanical stress.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
