Kanish Metals is a well-established producer and supplier of Monel Bars and Rods, Dubai, UAE, serving a diverse segment of industries with high-quality nickel-copper alloy products. Recognized for quality, accuracy, and international standards compliance, Kanish Metals supplies Monel bars and rods that provide superior corrosion resistance, particularly in marine and chemical environments. Such products are produced through sophisticated processes to provide high strength and durability. Backed by on-time shipment, customer-oriented solutions, and cost-effective price, Kanish Metals has emerged as a reliable source for Monel bar and rod supply in the domestic as well as the global market.
Monel is a nickel-copper alloy normally consisting of approximately 65–70% nickel and 20–29% copper, with minor levels of iron, manganese, carbon, and silicon. This alloy provides Monel with superior corrosion resistance, particularly in seawater, hydrofluoric acid, and alkaline systems. It possesses a tensile strength of between 480 and 900 MPa, as well as a yield strength of 170 to 620 MPa, based on the grade and condition. Monel provides mechanical strength at elevated and low temperatures and is weldable and only moderately hard, rendering it appropriate for several demanding applications.

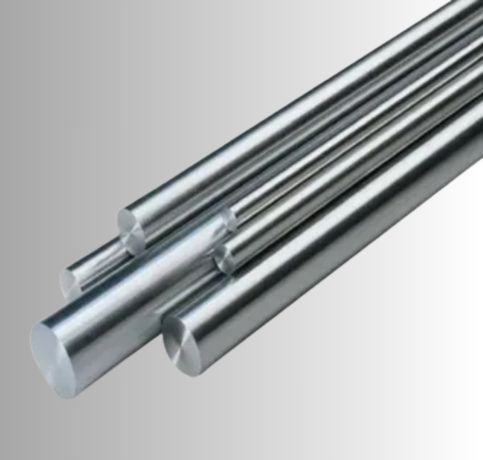

Monel Round Bar Specification : ASTM B164 / A479, ASME SB164 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | – |
Yes, Monel alloy bars are highly corrosion-resistant, particularly to seawater, acids, and alkalis. Their exceptional resistance makes them suitable for harsh environments and applications requiring durability.
Yes, Monel rods can be customized in size and length to meet specific application requirements. They are available in various diameters and lengths, ensuring versatility for different industries.
Monel alloy bars and rods perform excellently in high-temperature environments, maintaining strength and resistance to oxidation. They are ideal for applications in extreme heat, such as chemical processing and marine industries.
Monel Rods and Bars find extensive application in marine engineering, chemical processing, oil and gas, and aerospace industries. Applications range from shafts to pump and valve parts, fasteners, heat exchangers, and marine fittings. Monel is suited for offshore equipment and chemical plant use owing to its great resistive nature towards seawater and aggressive chemicals. It finds application in fuel and water tanks, electronic devices, and process piping systems as well. The durability of the alloy under harsh environments also renders it ideal for high-performance applications where corrosion and mechanical degradation are major issues.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
