Kanish Metals stands out as a reliable manufacturer and supplier of Hastelloy Bars and Rods in Dubai, UAE, delivering top-notch products that meet international standards. These Hastelloy Bars and Rods are celebrated for their remarkable resistance to corrosion, oxidation, and stress cracking, making them essential in demanding industries. Kanish Metals prides itself on precision engineering, exceptional finishing, and prompt delivery, ensuring they are a trusted partner for clients both in the UAE and around the world. With a commitment to durability and performance, these bars and rods come in various grades, sizes, and specifications to cater to diverse industrial needs.
The composition of Hastelloy Bars and Rods primarily includes nickel, molybdenum, iron, and chromium, with small amounts of tungsten and cobalt depending on the specific grade. This distinctive blend offers impressive resistance to strong oxidizers, reducing agents, and harsh chemical environments. On the mechanical side, Hastelloy Bars and Rods boast high tensile strength, excellent ductility, and good hardness, maintaining their structural integrity even under extreme temperatures. Their outstanding metallurgical stability and resistance to localized corrosion guarantee long-lasting performance in tough industrial settings.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

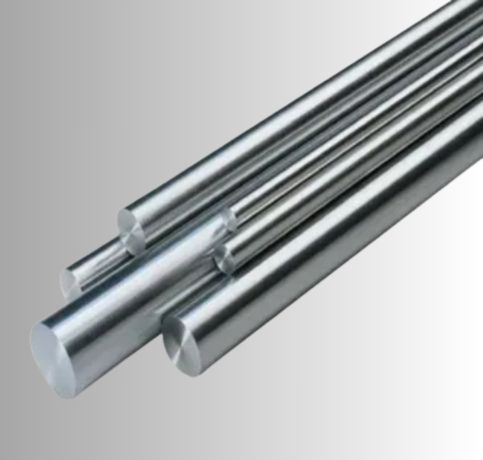

| Hastelloy Round Bar size | Diameter: 3-~800mm |
| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

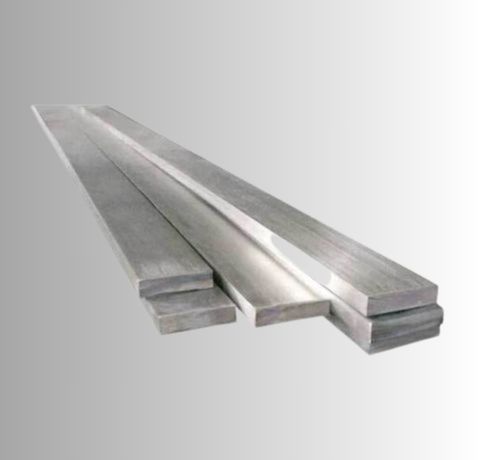

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
These Hastelloy Bars and Rods find extensive application in industries where top-notch corrosion resistance is vital, such as chemical processing, power generation, petrochemicals, and marine engineering. They are perfect for crafting reactor vessels, piping systems, pressure vessels, heat exchangers, and flue gas scrubbers. Additionally, these rods are utilized in aerospace, pollution control, and waste treatment sectors due to their ability to endure aggressive acids and harsh environments. Their blend of strength, durability, and chemical resistance makes them the go-to material for critical applications across a wide array of industrial fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
