Kanish Metals is a reputable manufacturer and supplier of titanium grade 8 bars and rods in Dubai, UAE, providing quality titanium products for challenging environments. With an emphasis on precision and robustness, Kanish Metals provides materials that are compliant with stringent international standards and specifications. Titanium grade 8 is characterized by high corrosion resistance and moderate strength and is used for chemical processing, aerospace, and industry. Supported by sophisticated infrastructure and customer-centric approach, Kanish Metals caters to both domestic and international markets with trustworthy, high-performance titanium solutions of customized nature suited to intricate engineering requirements.
Titanium alloy grade 8 bars and rods consist mainly of titanium alloyed with 3% aluminum and 0.8% nickel, which increases their corrosion and strength. This alloy is highly resistant to high-temperature oxidizing surroundings and chlorides. The mechanical properties of titanium grade 8 include tensile strength of approximately 690 MPa and yield strength of about 620 MPa, which also possess good ductility and superior corrosion resistance in acidic and high-temperature environments. It offers structural integrity in hostile industrial conditions, with a balance of strength and corrosion resistance at relatively low weight and weldability.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

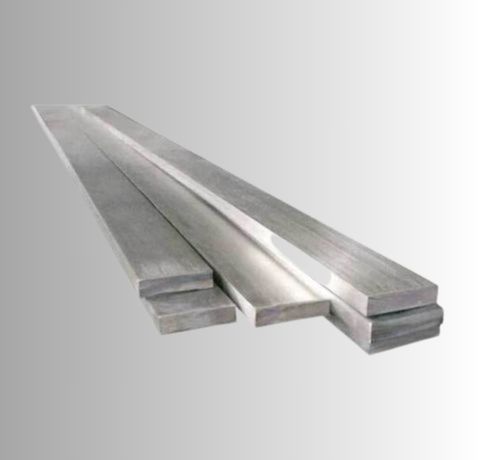

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

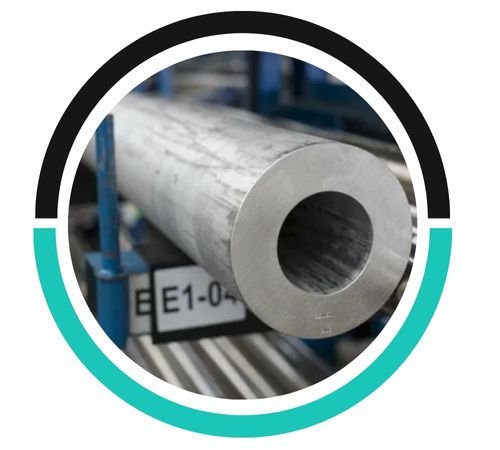

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 8 | – | R54810 |
| Grade | O | N | C | H | Fe | Al | Mo | V |
| 8Al 1Mo 1V | 0.15 | 0.05 | 0.08 | 0.0125 | 0.3 | 7.5-8.5 | 0.75-1.25 | 0.75-1.25 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| 8Al 1Mo 1V | 1020 | 930 | 10 | 40 | 350 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Titanium Grade 8 Bars and Rods offer high strength, excellent corrosion resistance, and superior performance in high-temperature environments, making them ideal for aerospace and marine applications.
Titanium Grade 8 combines 90% titanium, 6% aluminum, and 4% vanadium, offering enhanced strength and heat resistance compared to other grades, making it suitable for demanding industrial applications.
Titanium grade 8 rods and bars are extensively employed in applications where superior corrosion resistance and average strength are needed. In chemical processing, they are suited for reactors, heat exchangers, and piping systems exposed to corrosive fluids. Their strength-to-weight ratio is high and can withstand extreme temperatures, making them useful in aerospace applications. They are also applied in power generation, marine parts, and desalination facilities. The reliability of the alloy in oxidizing and mildly reducing conditions makes it suitable for usage when dealing with acids, chlorides, and high-temperature operations while providing long service life and minimum maintenance in a variety of applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
