Kanish Metals is a renowned producer and supplier of titanium grade 3 bars and rods with its headquarters in Dubai, UAE, recognized for providing top-notch titanium products to various industries. With an emphasis on quality control and customer satisfaction, Kanish Metals offers titanium grade 3 material that is in international compliance in terms of strength, durability, and resistance to corrosion. Higher in strength compared to grades 1 and 2 yet with good weldability and formability, the commercially pure titanium grade is supplied by Kanish Metals for use in aerospace, chemical processing, and marine industries. Kanish Metals promises timely delivery and precision-crafted titanium solutions.
Titanium grade 3 bars and rods contain 99.2% pure titanium and traces of iron and oxygen as alloying elements. This grade provides superior corrosion resistance in oxidizing environments and moderate strength relative to other commercially pure titanium grades. It possesses a tensile strength of about 620 MPa and a yield strength of about 450 MPa. Titanium grade 3 is also weldable and has good ductility and resistance to fatigue. Due to its high corrosion resistance, particularly against seawater and other chemicals, and reasonable mechanical properties, it is ideal for demanding applications in harsh environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

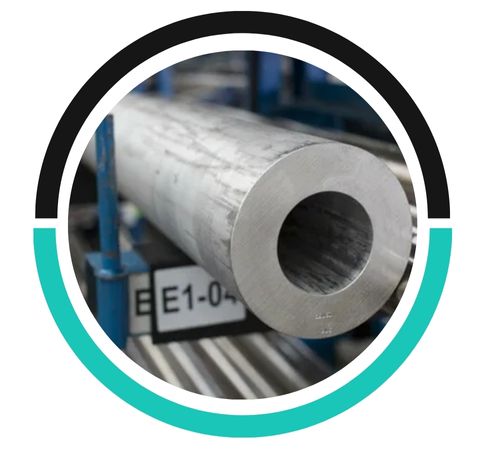

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Titanium grade 3 bars and rods are commonly employed in industries where there is a need for high corrosion resistance and moderate mechanical strength. They find optimum use in chemical processing as heat exchangers, pressure vessels, and piping systems that are exposed to corrosive materials. In the aerospace industry, they are employed for structural elements where strength is desired without additional weight. It is also suitable for marine and offshore use in saltwater environments due to its resilience. It is also utilized in medical, power generation, and desalination plants where its corrosion resistance guarantees durability with minimal maintenance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
