Kanish Metals is a trusted producer and exporter of titanium grade 6 bars and rods in Dubai, UAE, with high-performance titanium products for challenging industrial applications. Renowned for providing internationally standard products, Kanish Metals supplies titanium grade 6 materials with remarkable strength, corrosion resistance, and high-temperature stability. This alloy, a combination of aluminium and tin with titanium, is ideal for applications where the formability and thermal resistance are both the most important. With an eye for precision, quality, and timely delivery, Kanish Metals caters to industries like aerospace, marine, and chemical processing in the UAE and overseas.
Titanium grade 6 rods and bars contain 5% aluminium and 2.5% tin, the rest being titanium. This α alloy possesses superior high-temperature creep and strength retention, as well as weldability and corrosion resistance. Tensile strength ranges between 750 and 860 MPa, while yield strength is around 690 MPa. It also has superior oxidation resistance and good mechanical stability within service temperatures of 400°C. These characteristics render titanium grade 6 useful in structural applications under high temperature conditions when other grades become weakened or corroded.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

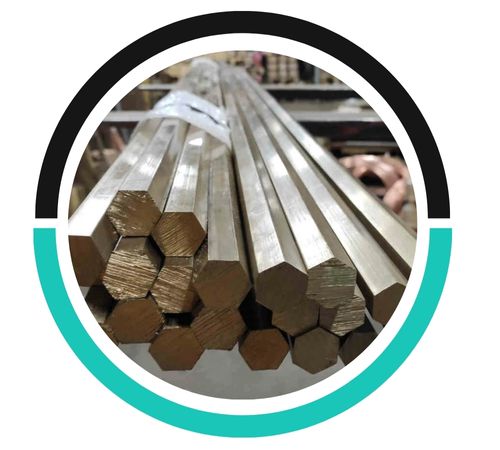

| Hex Bar size : | 2-100mm A/F |

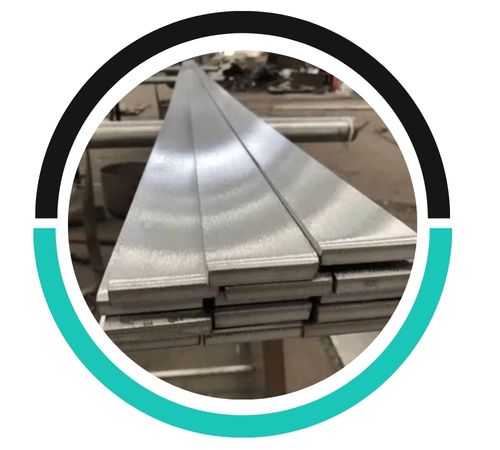

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

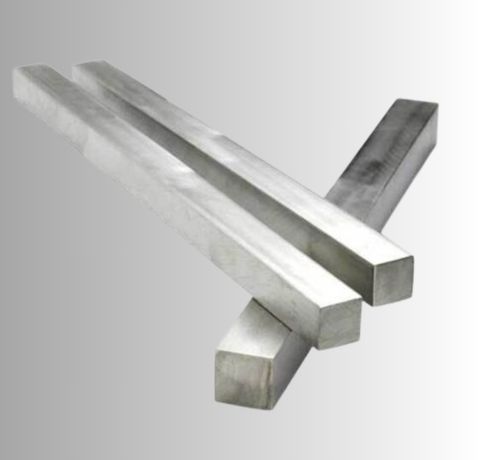

| Square bar size : | 4 to 100mm |

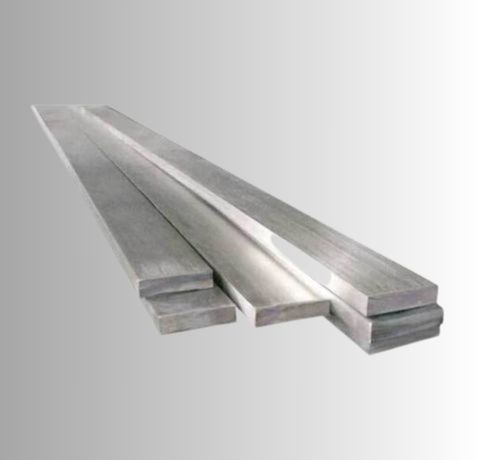

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

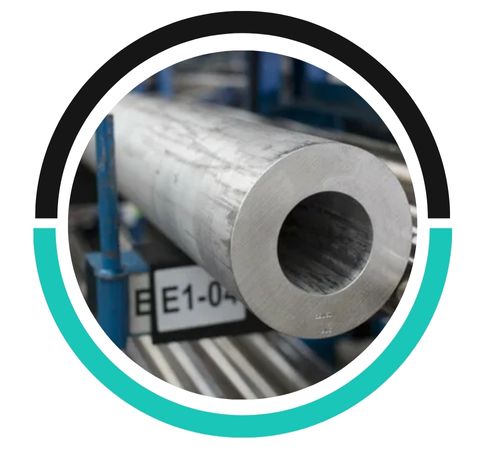

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Titanium grade 6 rods and bars find application in areas requiring higher thermal as well as mechanical performance. In aerospace, they are used for airframe structures, jet engine parts, and turbine casings owing to their high strength-to-weight ratio and resistance to heat. For piping systems, heat exchangers, and reactors in chemical processing, they are applied in the case of high temperature and corrosion resistance. The marine industries appreciate this alloy for saltwater-exposed structural fittings and parts. Moreover, titanium grade 6 can be used by military, auto, and industrial organizations where there is a need for consistent performance under stress and thermal condition.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
