Kanish Metals is a well-established producer and supplier of titanium grade 1 bars and rods in Dubai, UAE, that specializes in producing high-quality titanium products to industries requiring purity, corrosion resistance, and workability. Titanium grade 1 is the most ductile and soft of all commercially pure grades of titanium and is, therefore, suitable for welding and forming purposes. Kanish Metals makes sure that every product is up to international standards of strength, durability, and chemical resistance. Operating in industry segments like marine, medical, chemical processing, and aerospace, the company believes in precision, reliability, and customer satisfaction.
Titanium grade 1 bars and rods consist of 99.5% pure titanium with extremely low oxygen, nitrogen, carbon, and iron contents. Titanium grade 1 is highly corrosion resistant in a broad variety of conditions, including seawater and most acids. Mechanically, titanium grade 1 has a tensile strength of approximately 240–370 MPa and yield strength of approximately 170–275 MPa. It is also very ductile, has cold formability, and weldability. Its high corrosion resistance and low density make it suitable for use in cases where long performance in corrosive environments and lightweight are needed.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

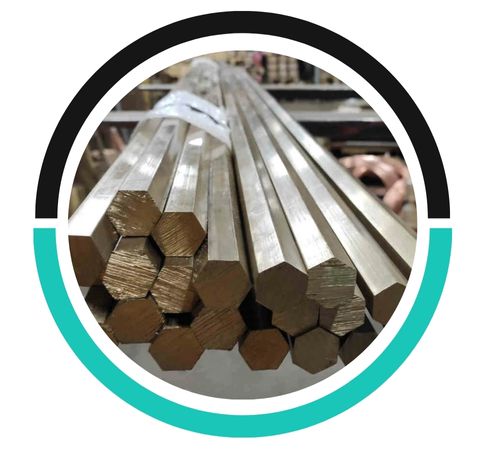

| Hex Bar size : | 2-100mm A/F |

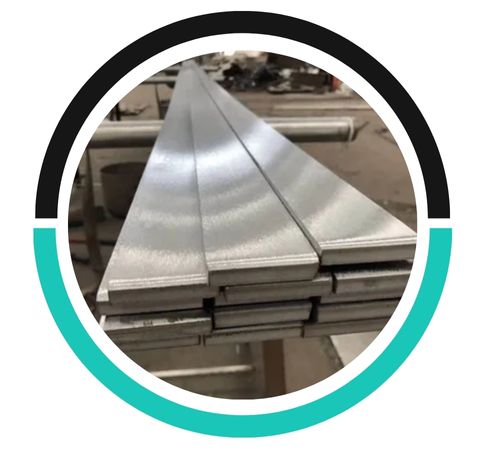

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

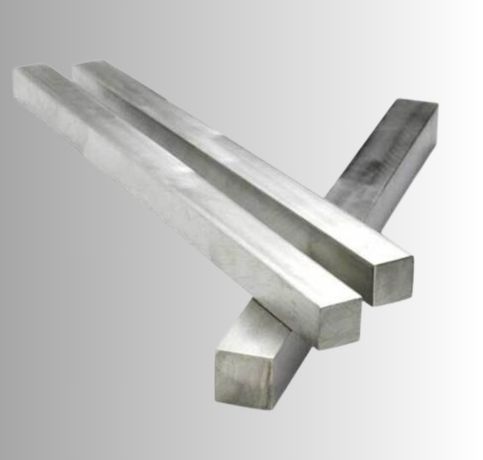

| Square bar size : | 4 to 100mm |

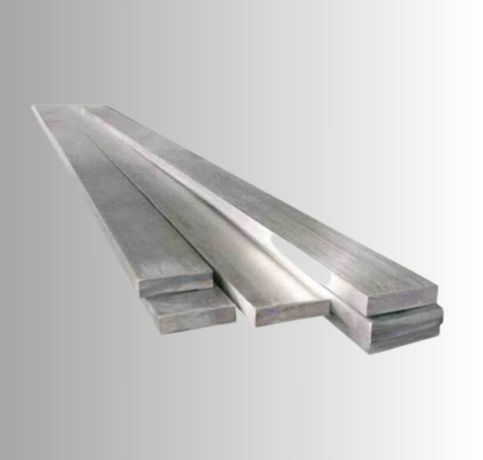

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

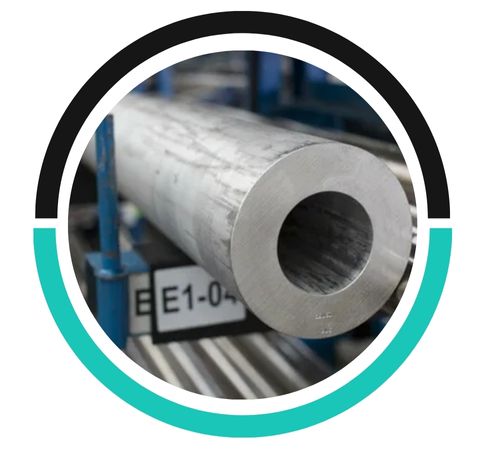

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae
Titanium grade 1 rods and bars are in common use in industries where the requirements are high ductility, superior corrosion resistance, and weldability. The marine industry is well suited to use them in saltwater-exposed applications such as fittings, heat exchangers, and pumps. They find applications in chemical processing in vessels, pipes, and equipment which deal with corrosive or acidic materials. Grade 1 titanium is sought after by the medical sector for surgical items and implantable devices because it is biocompatible. They also use it in aerospace structures, desalination facilities, and power plants, where long-term, corrosion-resistant material is imperative.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
