Kanish Metals is a well-established producer and supplier of Incoloy Forgings, located in Dubai, UAE, providing high-strength, corrosion-resistant parts suited for harsh industrial conditions. Incoloy is a series of nickel-iron-chromium alloys designed for superior performance in exposure to high temperature, pressure, and chemicals. Kanish Metals provides precision-forged components meeting international quality standards, providing mechanical stability and extended service life. With extensive manufacturing capabilities and a high emphasis on customer-specific solutions, Kanish Metals caters to industries like chemical processing, oil and gas, power generation, and marine engineering in the UAE and overseas markets.
Forgings made from alloys such as Incoloy 800, 800H, 800HT, 825, and more are each designed with proprietary thermal and corrosion-resistant properties. Such alloys have 30–46% nickel, 19–23% chromium, and additions such as molybdenum, copper, and titanium for improved performance. They have tensile strengths of 500–850 MPa and good resistance to oxidation, carburization, and stress corrosion cracking. Incoloy has good structural strength at elevated temperatures and resists corrosion from acidic and marine environments and is thus a convenient material for heavy-duty, high-stress applications.
| Specifications | ASTM B564, ASME SB564 |
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

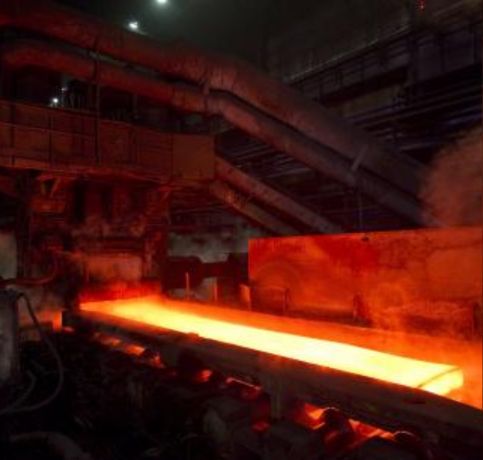

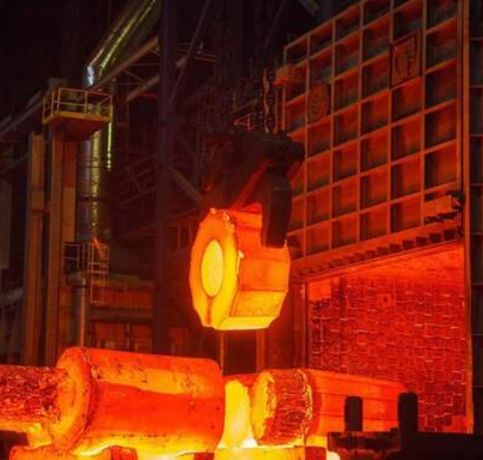

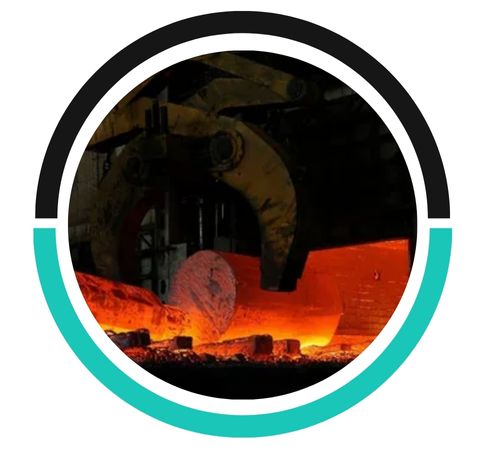

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
Yes, Incoloy forgings are highly corrosion-resistant, especially to oxidation and carburization, making them ideal for high-temperature and harsh environments, such as chemical processing and power generation applications.
Incoloy forgings are used in aerospace for turbine engine components, exhaust systems, and heat exchangers due to their excellent heat resistance, strength, and corrosion resistance in extreme temperature environments.
The ideal temperature range for forging Incoloy is typically between 2,100°F (1,150°C) and 2,300°F (1,260°C). This range ensures optimal material flow and properties without compromising strength or integrity.
Incoloy Forgings have extensive applications where corrosion resistance, thermal stability, and strength are the key considerations. Typical applications are flanges, pressure vessels, heat exchangers, tube sheets, pump shafts, and valve parts. In oil and gas production, they are utilized in sour gas and seawater-exposed downhole tools and piping systems. Incoloy forgings also find applications in chemical plants, refineries, and power generation facilities, where parts need to be capable of withstanding high temperatures, corrosive chemicals, and mechanical stress. Their durability and adaptability make them a widely used material in static and dynamic high-performance applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
