Kanish Metals stands out as a top manufacturer and supplier of Monel Forgings in Dubai, UAE. They pride themselves on delivering high-quality products that are built to resist corrosion, provide strength, and ensure durability. These Monel Forgings are meticulously engineered to endure tough conditions, whether it’s harsh chemicals, marine environments, or high temperatures, making them perfect for critical industrial uses. With a commitment to strict quality control and advanced forging techniques, Kanish Metals guarantees that their products boast dimensional accuracy, toughness, and long-lasting performance, catering to the needs of industries like chemical processing, marine engineering, aerospace, and power generation. They offer Monel Forgings in a variety of grades and sizes to meet the diverse needs of engineering and industrial applications.
The composition of Monel Forgings primarily includes 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, carbon, and silicon. These forgings deliver impressive tensile strengths ranging from 550–860 MPa, yield strengths between 240–450 MPa, and elongation rates of 30–50%, depending on the specific grade. The alloy is known for its remarkable resistance to seawater, acids, alkalis, and stress corrosion cracking, while also showcasing excellent mechanical stability, toughness, and performance at high temperatures. Plus, they offer good weldability and formability, making them versatile for various industrial applications.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

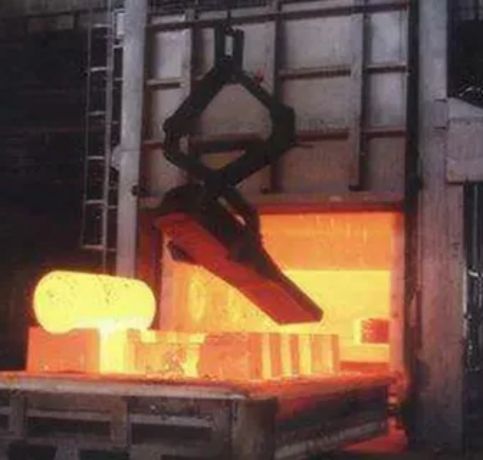

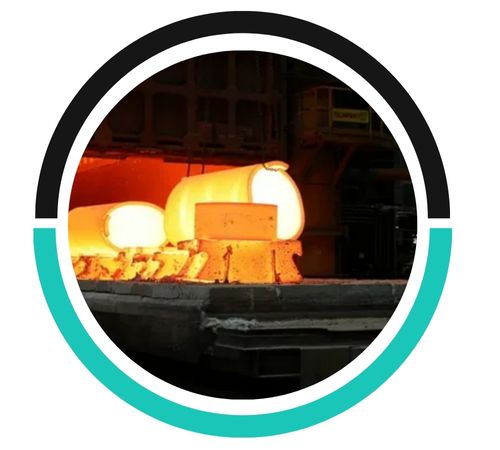

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
Monel Forgings are extensively utilized in industries that demand high-performance materials capable of withstanding extreme conditions. They are particularly suited for chemical processing equipment, marine shafts, pump and valve components, heat exchangers, and aerospace applications. Their exceptional resistance to pitting, stress corrosion cracking, and oxidation makes them ideal for offshore oil and gas facilities, nuclear reactors, desalination plants, and the petrochemical sector. Additionally, they find applications in high-performance automotive and industrial machinery where durability, corrosion resistance, and structural integrity are crucial. Monel Forgings truly deliver a dependable blend of strength and corrosion resistance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
