Kanish Metals stands out as a top-notch manufacturer and supplier of premium Hastelloy forgings right in the heart of Dubai, UAE. Known for their precision-engineered components, Kanish Metals focuses on delivering robust and corrosion-resistant Hastelloy forgings that cater to a variety of industrial needs. With state-of-the-art manufacturing facilities and a talented team of professionals, they guarantee consistent quality, timely deliveries, and competitive pricing. Whether it’s for marine, chemical processing, or aerospace applications, Kanish Metals is dedicated to surpassing client expectations with certified products that meet international standards. Their commitment to excellence has established them as a reliable partner in the global metal supply chain.
Hastelloy is a remarkable corrosion-resistant metal alloy, primarily made up of nickel, with varying levels of molybdenum, chromium, iron, and cobalt depending on the specific grade (like C22 or C276). It boasts impressive resistance to strong oxidizers, reducing agents, and high-temperature environments. Typically, its mechanical properties include a tensile strength ranging from 690 to 785 MPa, yield strength between 283 and 355 MPa, and elongation of up to 40%. Even in extreme conditions, it retains excellent ductility and toughness. These characteristics make Hastelloy forgings perfect for demanding applications where strength, resistance, and durability are essential.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Hastelloy C22, Hastelloy C276
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C 276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C 22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Alloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
To improve the surface finish of Hastelloy forgings, use techniques like polishing, grinding, or shot peening. Additionally, chemical or electrochemical cleaning can remove surface contaminants and enhance smoothness.

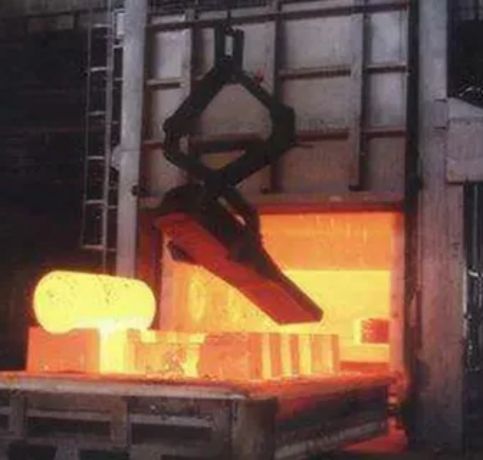

The most suitable forging techniques for Hastelloy include open-die forging and closed-die forging, which ensure optimal material flow and minimize defects. These methods provide the necessary strength and precision for high-performance applications.
To determine if Hastelloy forgings meet your needs, evaluate their chemical composition, mechanical properties, and corrosion resistance in your specific operating conditions. Conduct material testing or consult with suppliers for tailored solutions based on your application requirements.
Hastelloy forgings find their place in various industries that require exceptional corrosion resistance and strength in harsh conditions. In the chemical processing field, they are perfect for reactors, heat exchangers, and pressure vessels due to their ability to withstand acids and aggressive chemicals. In aerospace, Hastelloy is utilized for engine components and other critical parts that must endure extreme environments. Its versatility and reliability make it a preferred choice across sectors where performance and longevity are non-negotiable.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
