Aluminium 5086 Forgings

Kanish Metals stands out as a reliable manufacturer and supplier of Aluminium 5086 Forgings in Dubai, UAE. They pride themselves on delivering top-notch products tailored to meet the needs of various industries, including marine, automotive, aerospace, and structural sectors. These forgings are celebrated for their remarkable strength, lightweight nature, and outstanding resistance to corrosion, making them perfect for tough environments like seawater and industrial settings. With a commitment to precision engineering and long-lasting durability, Kanish Metals guarantees that their Aluminium 5086 Forgings deliver exceptional performance, reliability, and an extended service life across a broad spectrum of industrial and commercial uses.

Aluminum 5086 Press Forging Manufacturer in Abu Dhabi, Aluminium 5086 Compression Forging Al Ain, Aluminium Alloy 5086 Impression Die Forging Size Chart, Aluminum Alloy UNS A95086 Upset Forging Dealer in Al Ain, Al 5086 Open Die Forging Price in Sharjah, Stockist of Aluminum 5086 in Jebel Ali, DIN 3.3545 Aluminium Alloy Closed Die Forging Price List in Dubai, Aluminum Alloy UNS A95086 Open Die Forging Weight Chart, Aluminium 5086 Closed Die Forging Exporter in Abu Dhabi, Al 5086 DIN 3.3545 Closed Die Hammer Forging Supplier in UAE

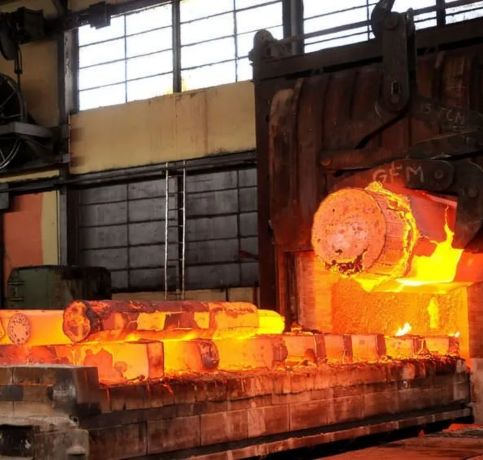

Aluminium 5086 Rolled Forging

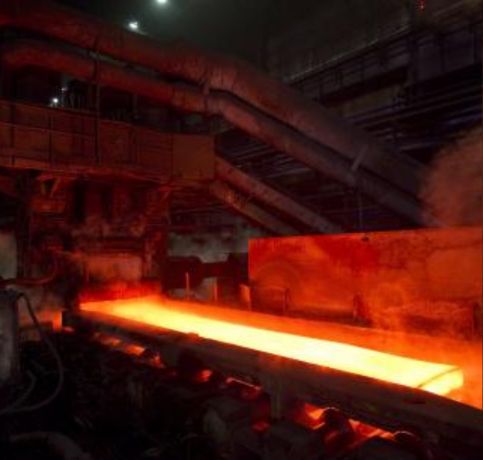

Aluminium 5086 Cold Forging

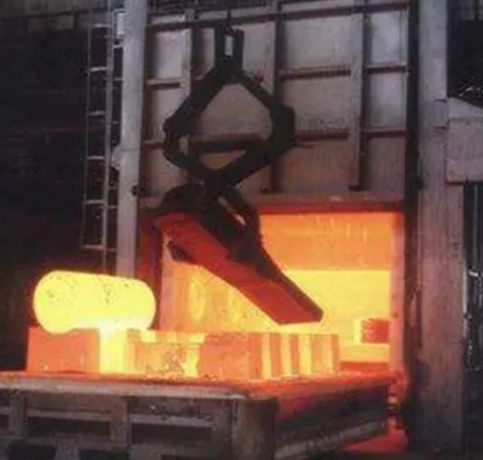

Aluminium 5086 Hot Forging

What is Aluminium 5086 Forgings?

Aluminium 5086 Forgings are mainly made of aluminium, with magnesium being the primary alloying element, complemented by trace amounts of iron, chromium, silicon, and manganese. This unique blend offers impressive resistance to saltwater corrosion, making it a go-to choice for marine applications. On the mechanical side, it boasts medium to high strength, good weldability, and excellent fatigue resistance. With a tensile strength that ranges from 275 to 350 MPa and remarkable ductility, it retains its toughness even in colder temperatures, ensuring dependable performance in challenging conditions.

Aluminium 5086 Open Die Hammer Forging Stockist in Dubai, Aluminum 5086 Impression Die Forging Distributor in Sharjah, Aluminium 5086 Cold Forging Stockist Ajman, 5086 Aluminium Alloy Open Die Forging Exporter in UAE, Aluminum Alloy DIN 3.3545 Compression Forging Price in Ajman, DIN 3.3545 Al Upset Forging Dimensions Jebel Ali, Aluminium 5086 Forgings Supplier in Sharjah, Al 5086 Open Die Hammer Forging Supplier in Jebel Ali, UNS A95086 Aluminium Alloy Press Forgings in Abu Dhabi

Aluminium 5086 Forgings Specifications

Standards : ASTM B247, B247

Temper : H14

Specification : DIN, ASTM, BS and all International Standards

Flat bar blocks : up to 27″ width and 15,000 lbs.

Cylinders and sleeves : up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs : up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings : up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts : up to 144″ maximum length and 20,000 lbs.

Aluminium 5086 Forgings Chemical Compositions

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others, each	Others, total	Al
0.4	0.5	0.1	0.20-0.70	3.5-4.5	0.05-0.25	0.25	0.15	0.05	0.15	Balance

You Need Our Support, to Have Any Projects?

Test Certificate

Why Kanish Metals?

Packaging

Aluminium 5086 Forgings Mechanical Properties

Proof Stress	Tensile Strength	Hardness Brinell	Elongation
125 Min MPa	275 – 350 MPa	75 HB	12 Min %

Aluminium 5086 Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4	AG4MC	3.3545	A95086	AlMg4	5086	AlMg4Mn

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 5086 Forgings Types

Aluminium Alloy 5086 Hot Forging Exporter in Al Ain, Aluminium 5086 Forgings Manufacturer in Ajman, Aluminium Alloy 5086 Forgings Industrial Forgings Distributor Exporter in UAE, Aluminum Alloy 5086 Seamless Rolled Forging Supplier in Jebel Ali, Al 5086 Forgings Cold Forging Size Chart in Dubai, Aluminium DIN 3.3545 Compression Forging Size Chart in Sharjah, UNS A95086 Aluminium Open Die Forging Stockist in Jebel Ali, ASTM B221 Al Forging Price List Abu Dhabi, Aluminum 5086 Press Forging Supplier in UAE

Frequently Asked Questions (FAQ)

Can Aluminum 5086 be used for high-temperature forging applications?

Aluminum 5086 is not ideal for high-temperature forging applications due to its relatively low melting point and limited strength at elevated temperatures. It is better suited for marine and structural applications.

What are the advantages of using Aluminum 5086 for custom forgings?

Aluminum 5086 offers high strength, excellent corrosion resistance, and weldability. It is ideal for marine environments, aerospace applications, and custom forgings requiring durability, lightweight properties, and easy fabrication.

How does the workability of Aluminum 5086 affect the forging process?

Aluminum 5086's excellent workability enables easy forging, allowing it to maintain strength and formability. However, its susceptibility to cold working requires careful temperature control during forging to prevent cracking.

Aluminium 5086 Forgings Uses

These forgings find their way into various industries that demand high corrosion resistance and strength. In the marine world, they are utilized in shipbuilding, boat hulls, and offshore structures due to their seawater resilience. The automotive and transportation sectors incorporate them into vehicle frames, armor plating, and pressure vessels. The aerospace and defense industries also reap the benefits of their lightweight yet robust characteristics. Additionally, they are used in pipelines, storage tanks, and industrial machinery. Thanks to their exceptional durability, resistance to harsh conditions, and ease of fabrication, Aluminium 5086 Forgings are a vital material for numerous engineering and structural applications.
