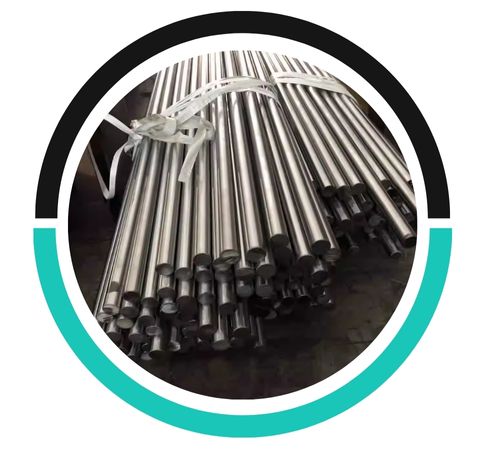

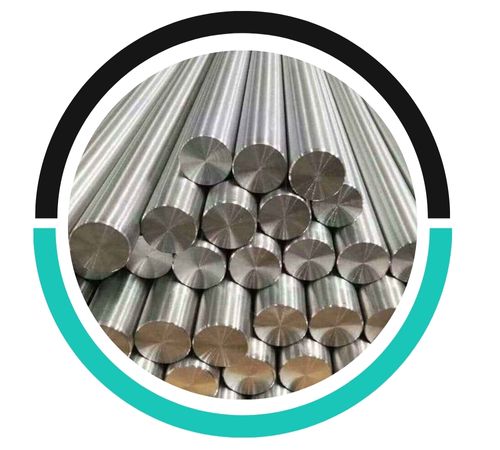

Kanish Metals stands out as a reliable manufacturer and supplier based in Dubai, UAE, specializing in top-notch Stainless Steel 904L Bars and Rods. These products are celebrated for their exceptional corrosion resistance, impressive durability, and extended service life. Crafted to excel in harsh environments—think acidic, chloride-rich, and seawater conditions—these bars and rods boast a low carbon content along with high levels of chromium, nickel, molybdenum, and copper. This unique composition grants them remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking, making them perfect for critical industrial applications.
The Stainless Steel 904L Bars and Rods are rich in nickel and chromium, with the addition of molybdenum and copper to boost their resistance against reducing acids like sulfuric and phosphoric acids. Their low carbon content helps prevent carbide precipitation, which in turn ensures excellent weldability and formability. These bars deliver high tensile and yield strength, good impact toughness, and strong resistance to stress corrosion cracking. Their mechanical stability under high-pressure and high-temperature conditions makes them a go-to choice for industries that operate in aggressive environments.
| Grade | SS 904L – UNS N08904 |
|---|---|
| Specification | ASTM A276 UNS N08904, WS 1.4539, AFNOR Z2CNDU 25-20 |

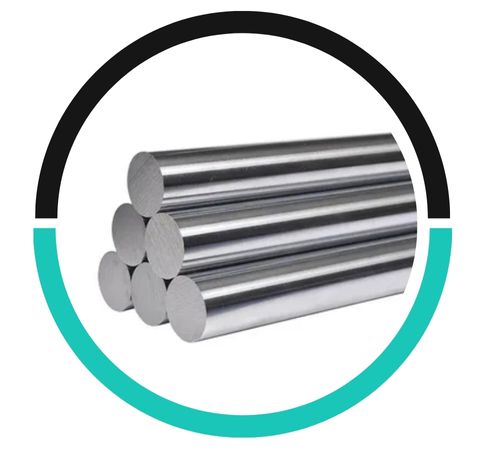

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 904Lmm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel 904L Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Stainless Steel 904L Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our stockyad location for fast delivery across India | Coimbatore, Bhubaneswar, Ahmedabad, Bengaluru, Thiruvananthapuram, Agra, Chennai, Noida, Mumbai, Shivamogga, Dhanbad, Hyderabad, Tiruchirappalli, Tirunelveli, Pune, Pimpri-Chinchwad, Navi Mumbai |
| Our Stainless Steel 904L Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Stainless Steel 904L is a high-alloy, corrosion-resistant material that contains significant amounts of nickel, chromium, and molybdenum. It is designed for use in highly corrosive environments, offering excellent resistance to acids, particularly sulfuric acid, and chloride corrosion. It is commonly used in chemical processing, marine, and pharmaceutical industries.
The key benefits of Stainless Steel 904L Bars and Rods include exceptional resistance to corrosion, excellent weldability, and good formability. These properties make them ideal for applications in aggressive chemical environments, marine applications, and other high-performance settings.
You’ll find Stainless Steel 904L Bars and Rods widely utilized in sectors where top-tier corrosion resistance is a must. They’re commonly found in chemical processing plants, marine engineering, seawater cooling systems, and the pulp and paper industry. In the oil and gas sector, they play a crucial role in pipelines, heat exchangers, and processing equipment. Their durability also makes them a solid option for the pharmaceutical, petrochemical, and power generation industries. With their ability to withstand harsh reducing acids and chloride-rich environments, Stainless Steel 904L Bars and Rods are a dependable choice for critical engineering and heavy-duty industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
