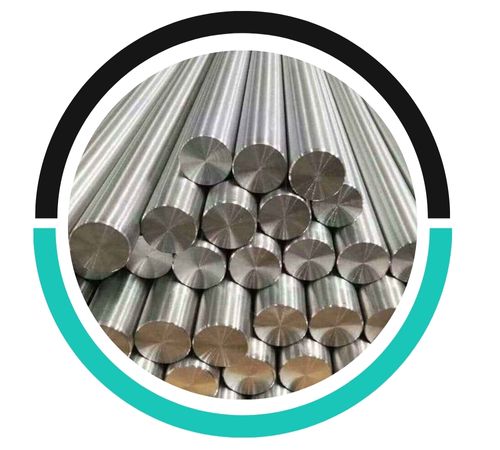

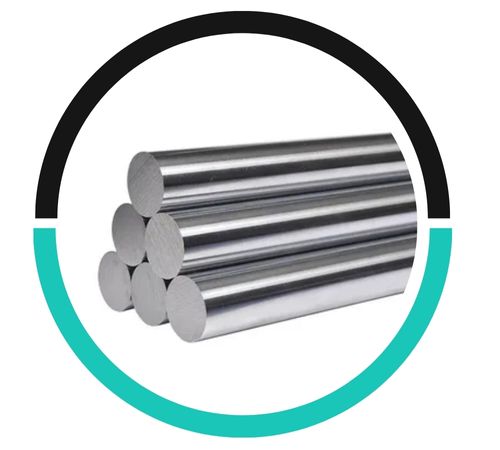

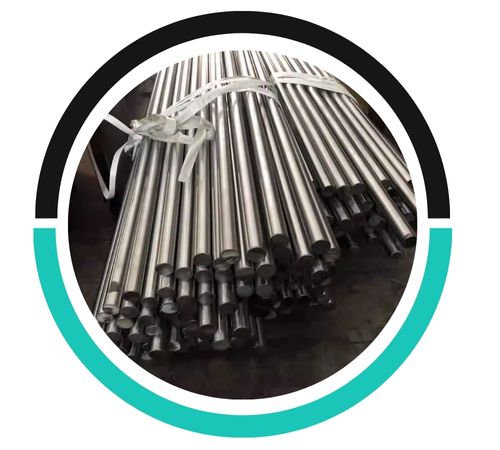

Kanish Metals stands out as a top manufacturer and supplier in Dubai, UAE, known for its premium Stainless Steel 440C Bars and Rods. These products are celebrated for their remarkable hardness, impressive wear resistance, and long-lasting durability. Industries that require materials with high strength and corrosion resistance in mild environments frequently turn to these bars and rods. Stainless Steel 440C is a high-carbon martensitic stainless steel that can achieve the highest hardness among stainless steels when heat-treated, making it a go-to choice for crafting components that need precision, toughness, and longevity even in tough conditions.
The composition of Stainless Steel 440C Bars and Rods includes high carbon, chromium, and trace amounts of manganese, silicon, and molybdenum. This unique blend results in exceptional hardness and mechanical properties. They boast high tensile and yield strength, outstanding edge retention, and excellent wear resistance. While they do offer moderate corrosion resistance, their performance can be significantly improved with proper heat treatment. Thanks to their strength and toughness, these bars and rods are perfect for applications that demand hardness and dimensional stability.
| Specification | ASTM A479/ SA479 ASTM A276/ ASME SA276 |
|---|---|
| Grade | Stainless Steel 440C (UNS S44004) |
| Hex Bar size | 18 to 57mm (11/16″ – 2-3/4″) |
| Round bar size | OD 4mm to 500mm |
| Square bar size | 18mm to 47mm (11/16″- 1-3/4″) |
| Billet Size | 1/2″- 495mm Dia. |
| Rectangles Size | 33 x 30mm – 295 x 1066mm |
| Bright Bar | OD 4mm to 100mm |
| Tolerance | K12 H12, K10, H9, H11, H8, H13K9, H10, K11, or as per need |
| Flat bar size | 1/2” to 10” in thickness of 2 to 150mm |
| Angle bar size | 3*20*20~12*100*100 |
| Finish | centreless ground, Cold (bright) drawn, hot rolled, peeled, smooth turned, hot rolled annealed, slit rolled edge, Bright, Rough Turned, Grinding, Polish & Black |
| Form | Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc. |
| Technique | 440C Stainless Steel Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled |
| Condition | annealed, Hardened & tempered |
| Section | 3.0 -12.0 mm thickness, 80 x 40 to 150 x 75mm section |
| Channel Bar | 5.0 – 6.0mm thickness |
| Surface | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline |
| Hollow Bar | 32mm OD x 16mm ID – 250mm OD x 200mm ID |
|
SS 440C |
Min |
Max |
|---|---|---|
|
Si |
– |
1.00 |
|
C |
0.95 |
1.20 |
|
Mo |
0.00 |
0.75 |
|
P |
– |
0.04 |
|
Ni |
– |
1.00 |
|
Mn |
– |
1.00 |
|
Cr |
16.00 |
18.00 |
|
S |
0.15 |
0.03 |
|
Element |
SS 440C |
|---|---|
|
Tensile (UTS)N/mm² |
1965 |
|
Temp°C |
20 |
|
Reductionof Area |
10 |
|
Elongation(50.8mm) %) |
2 |
|
0.2% YieldN/mm² |
1896 |
|
HardnessHRc |
57 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
JIS |
|---|---|---|---|
|
SS 440C |
S44004 |
1.4125 |
SUS 440C |
Stainless Steel 440C Bars and Rods are known for their high hardness, achieving up to 58-60 HRC when heat-treated. This makes them ideal for applications requiring excellent wear and abrasion resistance.
Stainless Steel 440C offers good corrosion resistance in mild environments, but for more aggressive conditions (like exposure to saltwater), it is recommended to use more corrosion-resistant stainless steel grades like 316 or 317.
Across various industries, Stainless Steel 440C Bars and Rods are widely utilized for their durability and high strength. They’re commonly found in the production of bearings, valve components, surgical instruments, nozzles, pump parts, and molds. Their superior hardness and wear resistance make them ideal for cutlery, tools, and precision mechanical parts. In the aerospace and automotive sectors, they are essential for high-performance components that require both strength and precise dimensions. With their robust characteristics, Stainless Steel 440C Bars and Rods are a dependable choice for critical engineering and industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
