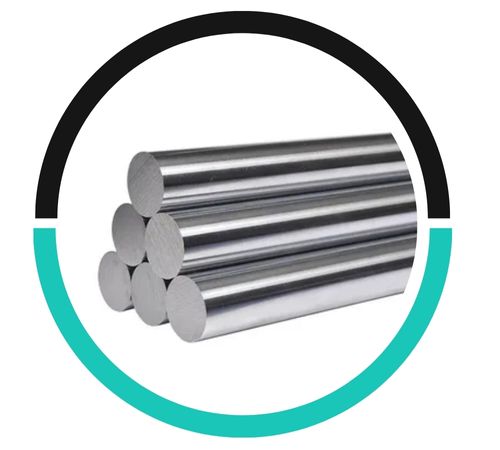

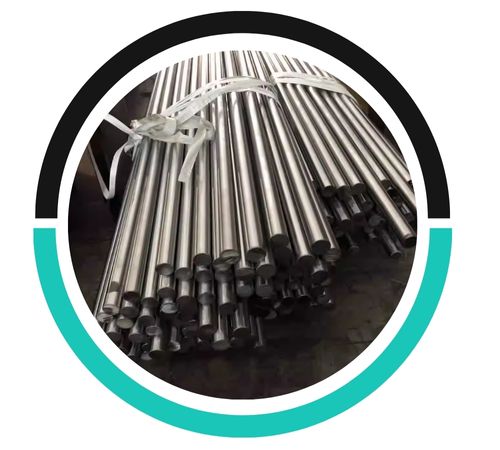

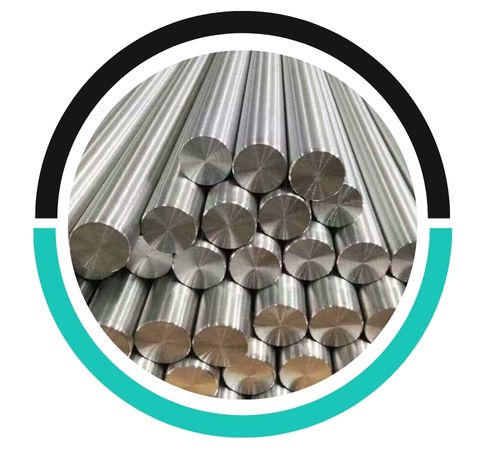

Kanish Metals stands out as a top-notch manufacturer and supplier of Stainless Steel 304 Bars and Rods in Dubai, UAE. They’re known for delivering high-quality stainless steel products that align with global standards. With a solid reputation for precision, reliability, and on-time delivery, Kanish Metals caters to a diverse array of industries, including construction, chemical processing, food production, and marine applications. SS 304 bars and rods are celebrated for their remarkable corrosion resistance, strength, and formability. Kanish Metals takes pride in ensuring that each product is crafted with meticulous attention to quality, making them a go-to supplier for stainless steel bars and rods throughout the UAE and beyond.
Stainless Steel 304 Bars and Rods are made up of 18–20% chromium, 8–10.5% nickel, and a maximum of 0.08% carbon. This well-balanced composition grants them excellent corrosion resistance, particularly in oxidizing environments, along with impressive mechanical properties. SS 304 boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. It’s easy to weld and form, maintaining outstanding toughness even in cryogenic temperatures. This alloy’s versatile performance is why it’s one of the most popular stainless steel grades used in both industrial and commercial settings.
| Specification | ASTM A479/ SA479 ASTM A276/ ASME SA276 |
|---|---|
| Grade | Stainless Steel 304 (UNS S30400) |
| Hex Bar size | 18 to 57mm (11/16″ – 2-3/4″) |
| Round bar size | OD 4mm to 500mm |
| Square bar size | 18mm to 47mm (11/16″- 1-3/4″) |
| Billet Size | 1/2″- 495mm Dia. |
| Rectangles Size | 33 x 30mm – 295 x 1066mm |
| Bright Bar | OD 4mm to 100mm |
| Tolerance | K12 H12, K10, H9, H11, H8, H13K9, H10, K11, or as per need |
| Flat bar size | 1/2” to 10” in thickness of 2 to 150mm |
| Angle bar size | 3*20*20~12*100*100 |
| Finish | centreless ground, Cold (bright) drawn, hot rolled, peeled, smooth turned, hot rolled annealed, slit rolled edge, Bright, Rough Turned, Grinding, Polish & Black |
| Form | Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc. |
| Technique | 440C Stainless Steel Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled |
| Condition | annealed, Hardened & tempered |
| Section | 3.0 -12.0 mm thickness, 80 x 40 to 150 x 75mm section |
| Channel Bar | 5.0 – 6.0mm thickness |
| Surface | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline |
| Hollow Bar | 32mm OD x 16mm ID – 250mm OD x 200mm ID |
| Grade | Mn | C | Si | S | P | Cr | Ni | Mo | N |
| SS 304 | 2 maximum | 0.08 maximum | 0.75 maximum | 0.030 maximum | 0.040 maximum | 18 – 20 | 8 – 11 | – | – |
| Density | Elongation | Tensile Strength | Melting Point | (0.2%Offset) Yield Strength |
| 8.0 g/cm3 | 35 % | MPa – 515 , Psi – 75000 | 1400 °C (2550 °F) | MPa – 205, Psi – 30000 |
|
Type |
SIZES (Inches) |
ISO Tolerance |
SIZES (mm) |
|---|---|---|---|
|
Peeled and Polished |
1.50″ to 6.00″ |
h11-DIN 1013 |
40.00 to 150.00 |
|
Cold Drawn and Ground |
5/6″ to 2.50″ |
h9-h8-h11-h10 |
10.00 to 75.00 |
|
Cold Drawn and Polish |
1/8″ to 3.00″ |
h9-h8-h11-h10 |
3.00 to 75.00 |
|
Peeled and Ground |
3/4″ to 2.00″ |
h10-h9-h11 |
20.00 to 50.00 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
BS |
JIS |
AFNOR |
GOST |
EN |
|
SS 304 |
S30400 |
1.4301 |
304S31 |
SUS 304 |
Z7CN18‐09 |
08Х18Н10 |
X5CrNi18-10 |
Stainless Steel 304 Bars and Rods offer excellent corrosion resistance, high tensile strength, and good machinability. They are also highly resistant to oxidation and can withstand various industrial and environmental conditions, making them suitable for a wide range of applications.
Stainless Steel 304 Bars and Rods are widely used in industries such as food processing, automotive, chemical, pharmaceutical, and construction. They are used for manufacturing parts like shafts, fasteners, pipes, and structural components due to their durability and corrosion resistance.
Yes, Stainless Steel 304 Bars and Rods perform well in high-temperature environments, with the ability to withstand temperatures up to 870°C (1600°F) in intermittent service. This makes them suitable for applications in heat exchangers, ovens, and other high-heat environments.
You’ll find Stainless Steel 304 Bars and Rods being utilized across various industries thanks to their strength, corrosion resistance, and adaptability. They’re commonly found in structural components, fasteners, shafts, food processing equipment, heat exchangers, marine hardware, and architectural fittings. SS 304 is also a favorite in the pharmaceutical and chemical processing sectors, where hygiene and chemical resistance are paramount. Its excellent weldability and ease of fabrication make it perfect for frames, supports, and machined parts. Whether indoors or outdoors, SS 304 bars and rods deliver long-lasting performance with minimal upkeep, making them ideal for both decorative and functional applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
