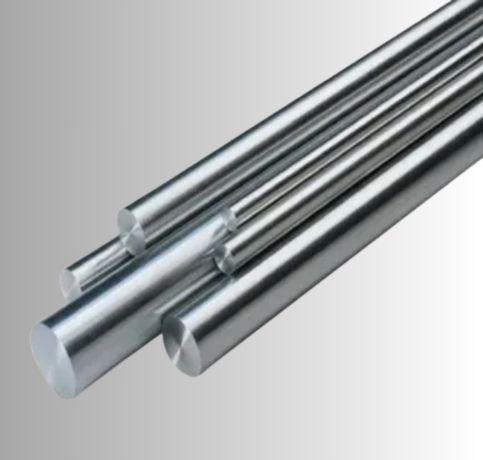

Kanish Metals stands out as a top manufacturer and supplier of Aluminium 5086 Bars and Rods in Dubai, UAE, offering high-quality products that adhere to international standards. Aluminium 5086 is a robust, non-heat-treatable alloy celebrated for its remarkable resistance to seawater, corrosion, and tough environments. Thanks to state-of-the-art production facilities and rigorous quality control, Kanish Metals guarantees exceptional precision and durability in every item they produce. These Aluminium 5086 Bars and Rods are in high demand across various sectors, including marine, aerospace, construction, and transportation, making them a trusted choice for critical engineering projects.
The composition of Aluminium 5086 Bars and Rods primarily includes aluminium, with magnesium as the key alloying element, along with small amounts of iron, silicon, manganese, and chromium. This distinctive blend provides outstanding corrosion resistance, weldability, and strength, particularly in marine settings. Mechanically, they boast high tensile strength, good elongation, and excellent fatigue resistance, making them ideal for challenging structural applications. Their ability to maintain strength after welding and in cryogenic conditions further boosts their performance in specialized fields.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| GRADE | Si | Ir | Cu | Mn | Mg | Cr | Zn | Ti | Others, each | Others, total | Al |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20-0.70 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Balance |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5086 bars are fully recyclable. Aluminium is a sustainable material that can be recycled repeatedly without losing its properties, making it an environmentally friendly option for various applications.
Yes, Aluminium 5086 bars and rods can be used for potable water applications due to their corrosion resistance and durability, making them suitable for marine environments and water treatment systems.
When installing Aluminium 5086 bars and rods, consider factors such as proper handling to avoid damage, ensuring compatibility with other materials, and protecting against corrosion by using appropriate coatings or finishes.
Aluminium 5086 Bars and Rods are widely utilized in shipbuilding, offshore platforms, and marine structures due to their exceptional resistance to seawater corrosion. They also find applications in the aerospace and defense industries for lightweight yet strong components. In transportation, they are used in vehicle frames, pressure vessels, tankers, and pipelines. The construction sector employs them for bridges, architectural frameworks, and load-bearing structures. Moreover, their excellent formability and welding characteristics make them perfect for crafting storage tanks, cryogenic vessels, and other specialized engineering equipment that demands durability and reliability.
Â
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
