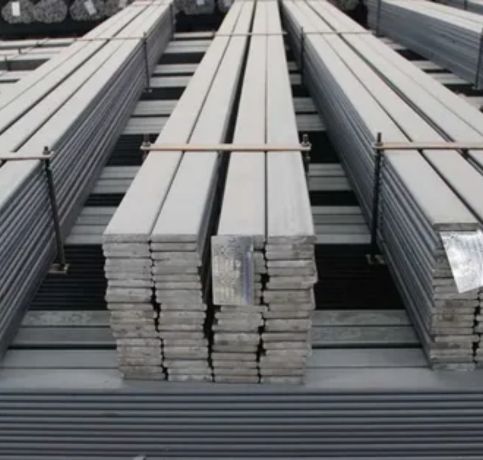

Kanish Metals stands out as a top manufacturer and supplier of Stainless Steel 416 Flat Bars in Dubai, UAE. They pride themselves on delivering high-quality products that are crafted for exceptional machinability, strength, and durability. Stainless Steel 416 is a martensitic stainless steel grade enriched with sulfur, making it perfect for applications that demand extensive machining while still offering moderate corrosion resistance. The flat bars made from this grade ensure precision, reliability, and long-lasting performance in critical industrial settings. Thanks to their advanced manufacturing techniques, rigorous quality control, and prompt delivery, Kanish Metals has earned a reputation as a trusted supplier of Stainless Steel 416 Flat Bars in the region.
These flat bars consist of 12–14% chromium, with sulfur added to boost machinability without sacrificing mechanical strength. They boast a tensile strength of around 550 MPa, a yield strength of 290 MPa, and an elongation of 20%. This martensitic stainless steel can be hardened through heat treatment to enhance wear resistance while still maintaining moderate corrosion resistance. Stainless Steel 416 Flat Bars offer excellent toughness, dimensional stability, and machinability, making them ideal for components that require precision engineering and high performance.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Flat Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
Stainless Steel 416 Flat Bar is commonly used in applications requiring moderate corrosion resistance, high strength, and machinability. It's used in shafts, valves, pumps, fasteners, and machinery components, particularly in the automotive, aerospace, and manufacturing industries.
The typical hardness level of Stainless Steel 416 Flat Bar ranges from 30 to 40 HRC (Rockwell Hardness Scale). The hardness can vary depending on the heat treatment process, with higher hardness achieved through quenching and tempering.
Common methods for machining Stainless Steel 416 Flat Bar include turning, milling, drilling, and grinding. Due to its high machinability, it can be easily processed using conventional tools, though cutting speeds and coolant usage should be optimized to reduce heat buildup.
You’ll find Stainless Steel 416 Flat Bars widely used in industries that demand high machinability, moderate corrosion resistance, and dependable performance. They’re perfect for applications like pump shafts, valve parts, gears, fasteners, motor shafts, and various mechanical components. Their outstanding wear resistance and machinability make them suitable for automotive, aerospace, petrochemical, and general engineering applications. Plus, they’re also utilized in food processing and pharmaceutical equipment where precision-machined components are crucial. Overall, Stainless Steel 416 Flat Bars deliver a cost-effective, durable, and high-performance solution for a broad spectrum of industrial and engineering needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
