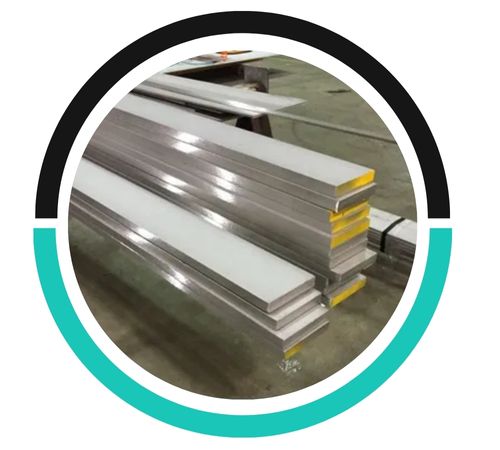

Kanish Metals has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel 317 Flat Bars in Dubai, UAE. They offer top-notch products that are crafted for exceptional corrosion resistance, mechanical strength, and long-lasting durability. Stainless Steel 317 is a molybdenum-enriched austenitic stainless steel grade, known for its outstanding resistance to pitting, crevice corrosion, and tough chemical environments. The flat bars made from this grade are designed to deliver precision, durability, and reliability, making them perfect for critical industrial applications. Thanks to their advanced manufacturing techniques, rigorous quality control, and prompt delivery, Kanish Metals has become a trusted supplier of Stainless Steel 317 Flat Bars across various industries in the region.
These flat bars consist of 18–20% chromium, 11–13% nickel, and 3–4% molybdenum, which significantly boosts their corrosion resistance and mechanical properties. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. The molybdenum content plays a key role in providing excellent resistance to oxidation, stress corrosion cracking, and high-temperature scaling. With their superior mechanical stability, toughness, and durability, these flat bars are well-suited for demanding industrial applications.
Standard ASTM A276, A479 / ASME SA276, SA479
Range 3.17 MM TO 350 MM DIA
Diameter 25mm to 152mm
Size Tolerance h8, h9(DIN 671), h10, h11, ASTM A484, DIN 1013
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.,
Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
Stainless Steel 317 is primarily composed of iron, chromium (about 18-20%), nickel (11-15%), and molybdenum (3-4%). It also contains small amounts of manganese, silicon, and carbon, offering excellent resistance to corrosion, especially in acidic environments.
Yes, Stainless Steel 317 Flat Bar is highly resistant to corrosion due to its high chromium and molybdenum content. It performs exceptionally well in aggressive environments, including exposure to chlorides and acidic conditions, making it suitable for harsh applications.
Yes, Stainless Steel 317 Flat Bar can be welded easily. Its composition, including high nickel and chromium, allows for good weldability. However, proper welding techniques and preheating may be necessary to prevent cracking or distortion in some cases.
Stainless Steel 317 Flat Bars find their place in industries that require high corrosion resistance, mechanical strength, and dimensional stability. They are perfect for use in chemical processing equipment, heat exchangers, marine components, pump shafts, valve bodies, and petrochemical plant applications. Their remarkable resistance to harsh environments makes them ideal for the oil and gas, power generation, and food processing sectors. Additionally, they are utilized in pharmaceutical and medical equipment, where hygiene and corrosion resistance are paramount. Overall, Stainless Steel 317 Flat Bars offer a dependable blend of durability, strength, and resilience against challenging environmental conditions, making them essential for demanding industrial and engineering tasks.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
