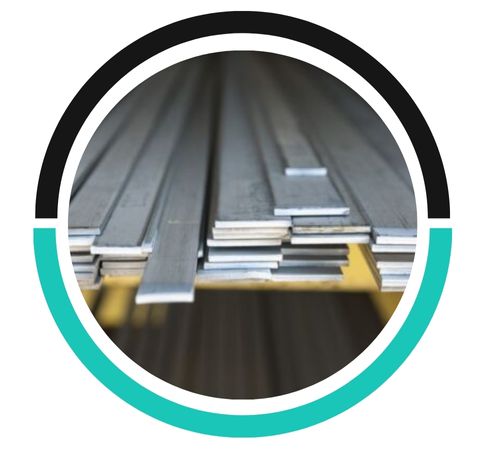

Kanish Metals is a well-respected manufacturer and supplier of Stainless Steel 316L Flat Bars, proudly based in Dubai, UAE. They specialize in delivering top-notch stainless steel products that cater to the diverse needs of various industries. With a keen emphasis on durability, corrosion resistance, and precision, Kanish Metals guarantees that their SS 316L flat bars adhere to international standards and specifications. They serve a range of sectors, including marine, pharmaceuticals, food processing, and chemicals. Renowned for their timely deliveries and commitment to customer satisfaction, Kanish Metals has become a go-to source for stainless steel flat bars that perform reliably even in tough and corrosive environments.
Stainless Steel 316L flat bars are made up of about 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a maximum of 0.03% carbon. This low carbon content boosts resistance to intergranular corrosion, particularly after welding. The alloy boasts a tensile strength of around 485 MPa, a yield strength of 170 MPa, and an elongation of about 40%. SS 316L is known for its excellent corrosion resistance, especially in environments rich in chlorides, along with solid mechanical properties. Its improved weldability and toughness make it a fantastic choice for applications that demand clean fabrication, strength, and long-lasting performance in corrosive conditions.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”
finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Stainless Steel 316L flat bars primarily consist of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, with a maximum carbon content of 0.03%. This composition enhances corrosion resistance, especially in chloride-rich environments, making it ideal for demanding applications.
Stainless Steel 316L flat bars are commonly used in industries such as chemical processing, marine, food processing, pharmaceuticals, and petrochemicals. Their high corrosion resistance makes them ideal for applications exposed to aggressive chemicals, saltwater, and high-temperature environments.
The low carbon content in 316L stainless steel reduces carbide precipitation during welding, improving its resistance to intergranular corrosion. This enhances its overall corrosion resistance, particularly in chloride environments, and makes it suitable for applications requiring high strength and durability.
You’ll find Stainless Steel 316L flat bars widely used in industries that require exceptional corrosion resistance and robust, clean construction. Common applications include marine hardware, chemical processing equipment, pharmaceutical machinery, food-grade processing systems, and heat exchangers. Thanks to its outstanding resistance to chlorides and acidic environments, it’s perfect for coastal and underwater structures. The low carbon content also makes it ideal for welding and fabrication without the worry of carbide precipitation. SS 316L flat bars are also utilized in architectural, medical, and wastewater systems where hygiene, strength, and corrosion resistance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
