Kanish Metals provides high-grade Titanium Grade 1 Forgings from Dubai, UAE, to sectors that require optimum corrosion resistance and strength. Titanium Grade 1 is characterized by high formability, exceptional ductility, and superior resistance to a wide variety of corrosive environments. With accuracy in forging processes and high-quality checks, Kanish Metals provides reliable and robust forgings for essential applications in various industries.
Titanium Grade 1 is mainly made up of commercially pure titanium with negligible impurities, which gives it high purity and resistance to corrosion. The mechanical properties of Grade 1 are tensile strength of approximately 240 MPa, yield strength of about 170 MPa, and high elongation of about 24%. The grade is ductile and soft, meaning that it can be molded and welded quite easily without losing strength.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | O | N | Fe | H | Ti | I |
| Min | – | – | – | – | – | 99.095 | – |
| max | 0.080 | 0.18 | 0.030 | 0.2 | 0.015 | 100 | 0.2 |
| Grades | Tensile KSI Min | Yield KSI Min/Max | % Elongation Min |
| Titanium Gr 1 | 35 | 25/45 | 24 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 1 | 3.7025 | R50250 |
Titanium Grade 1 forgings are commonly used in aerospace, chemical processing, marine, medical, and automotive industries due to their excellent corrosion resistance, lightweight, high strength, and biocompatibility properties.

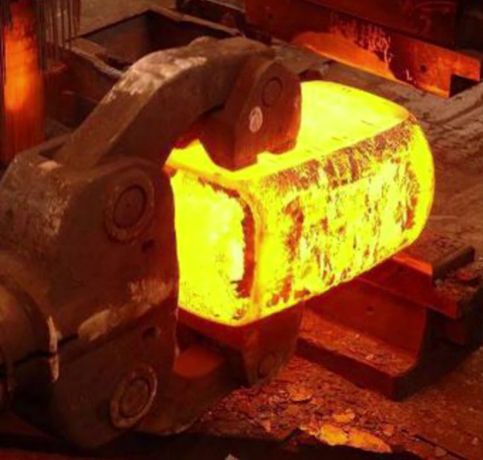

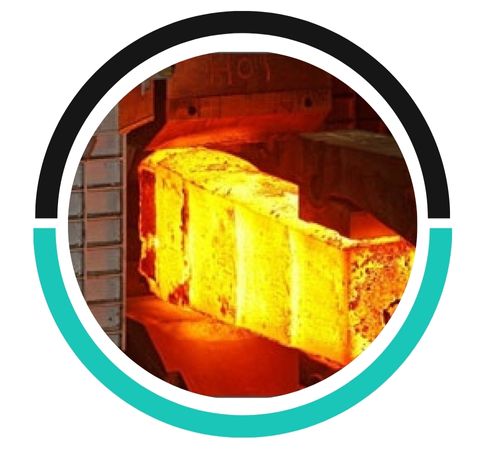

Titanium Grade 1 forgings are made by heating titanium billets, then shaping them using compressive forces like hammering or pressing, followed by precision machining to achieve the desired specifications.

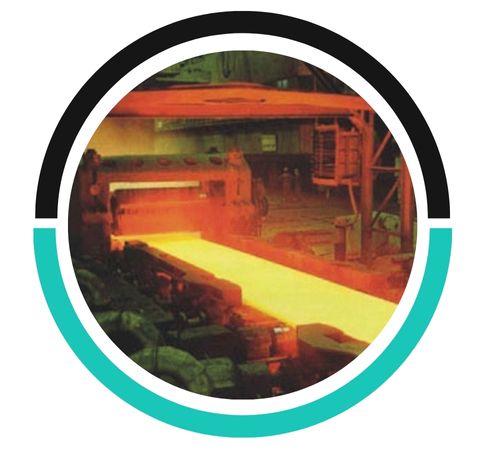

Open-die forging for Titanium Gr 1 involves compressing heated titanium between flat or contoured dies, allowing metal to deform freely, producing strong, customized components with excellent structural integrity.
Titanium Grade 1 Forgings have extensive applications in chemical processing equipment, marine hardware, aerospace components, and medical devices on account of being lightweight, strong, and resistant to corrosion. They are well suited for chlorides, oxidizing agents, and acidic environments. Titanium Grade 1 Forgings are also used in heat exchangers, pressure vessels, and structural parts where long life and resistance to harsh environments are necessary.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
