Kanish Metals stands out as a reliable manufacturer and supplier of Nickel Alloy 201 Forgings right here in Dubai, UAE. They offer top-notch products that are crafted for outstanding corrosion resistance, impressive strength, and long-lasting durability. Nickel Alloy 201 (UNS N02201) is a commercially pure nickel alloy with a lower carbon content than Alloy 200, which gives it exceptional resistance to intergranular corrosion in reducing environments and alkalis. Thanks to its remarkable mechanical properties and corrosion resistance, this alloy is perfect for critical applications in chemical processing, marine, and industrial equipment. With a focus on precision and strict quality standards, Kanish Metals ensures that their Nickel Alloy 201 Forgings deliver dimensional accuracy, toughness, and reliable performance over the long haul.
These forgings are made up of over 99% nickel, with just a hint of iron, copper, and manganese. They boast a tensile strength of around 480–550 MPa, a yield strength of 100–350 MPa, and an elongation of 30–50%. The low-carbon makeup enhances resistance to intergranular corrosion while still providing excellent ductility, toughness, and weldability, making this alloy incredibly versatile for demanding industrial applications.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

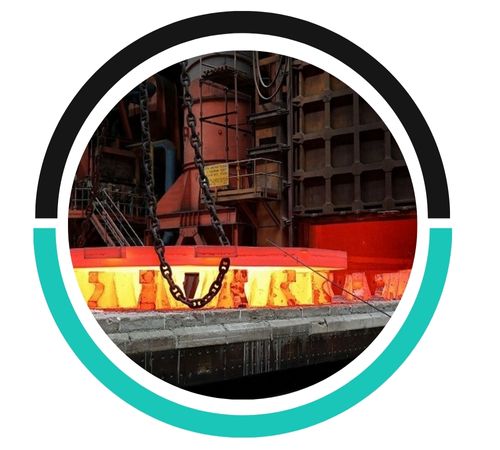

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Yes, Nickel Alloy 201 can be forged into custom shapes. Its excellent ductility and malleability make it ideal for creating tailored components to meet specific design and application requirements.
Post-forging operations for Nickel Alloy 201 typically include heat treatment to enhance mechanical properties, machining for precision shaping, and surface finishing to ensure corrosion resistance and optimal performance.
To determine if Nickel Alloy 201 forgings meet your needs, evaluate their chemical composition, mechanical properties, and corrosion resistance against your application requirements. Consulting with experts or suppliers can ensure the material's suitability.
Nickel Alloy 201 Forgings are in high demand across industries that need high-performance materials capable of handling tough chemical and industrial environments. They’re perfect for chemical processing equipment, heat exchangers, reactor vessels, piping systems, valves, and marine components. Their outstanding resistance to reducing acids, alkalis, and seawater makes them ideal for power plants, desalination facilities, and petrochemical operations. Plus, they find their place in food processing, pharmaceuticals, and industrial machinery where corrosion resistance, durability, and structural integrity are essential. Nickel Alloy 201 Forgings offer a reliable mix of mechanical strength, corrosion resistance, and toughness, making them a go-to choice for challenging engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
