Kanish Metals stands out as a reliable manufacturer and supplier of Nickel Alloy 200 Forgings right here in Dubai, UAE. They offer top-notch products that are crafted to deliver exceptional corrosion resistance, impressive strength, and long-lasting durability. Nickel Alloy 200 (UNS N02200) is a commercially pure nickel alloy celebrated for its remarkable resistance to reducing environments, alkalis, and hydrofluoric acid. Thanks to its excellent mechanical properties and corrosion resistance, it’s the go-to choice for critical applications in chemical processing, marine, and industrial equipment. With a commitment to precision and strict quality standards, Kanish Metals ensures that their Nickel Alloy 200 Forgings boast dimensional accuracy, toughness, and reliability for even the most demanding engineering tasks.
These forgings are made up of over 99% nickel, with just a hint of iron, copper, and manganese. They deliver a tensile strength ranging from 480 to 550 MPa, a yield strength between 100 and 350 MPa, and an elongation of 30 to 50%. The alloy shines in its ability to resist corrosion across a variety of reducing and mildly oxidizing environments while still maintaining good ductility, toughness, and weldability, making it incredibly versatile for industrial uses.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

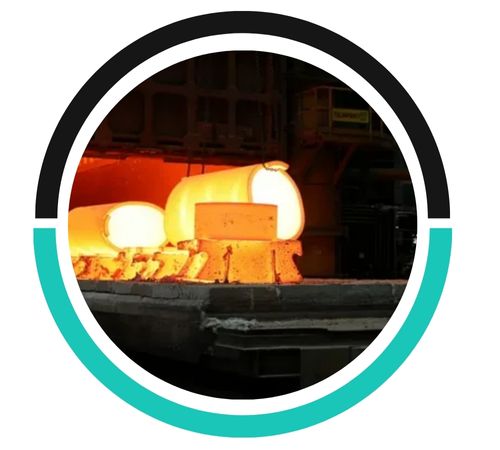

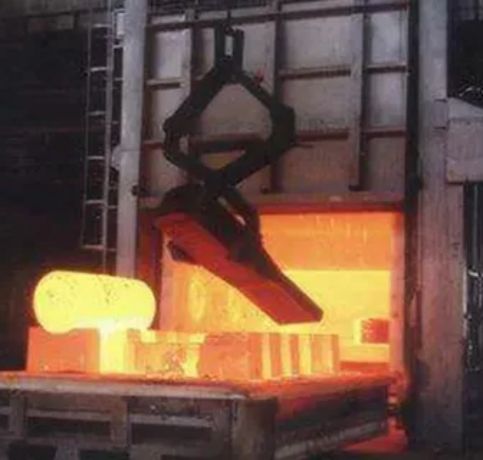

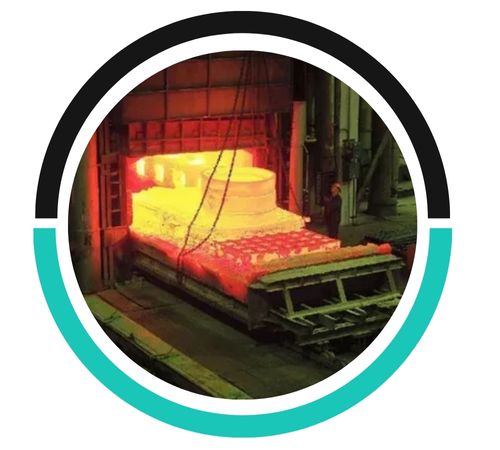

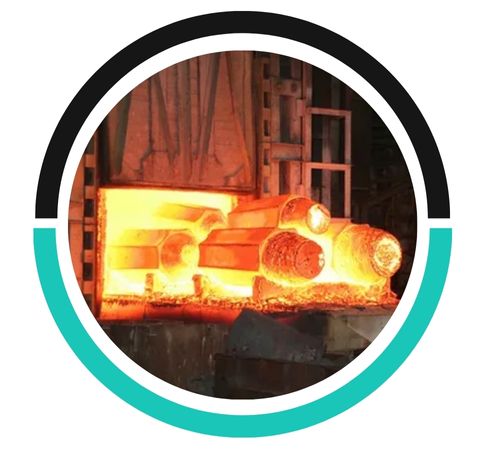

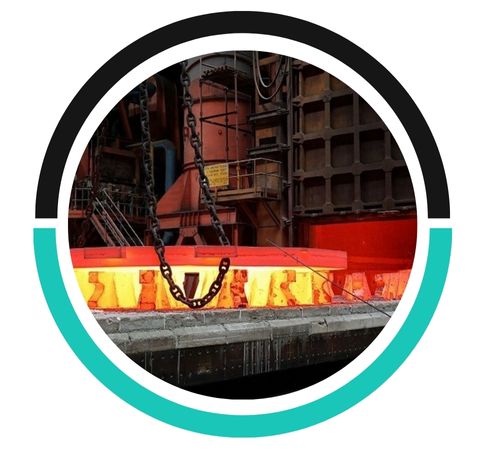

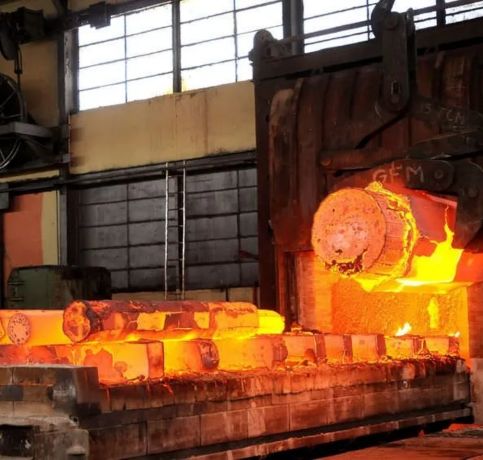

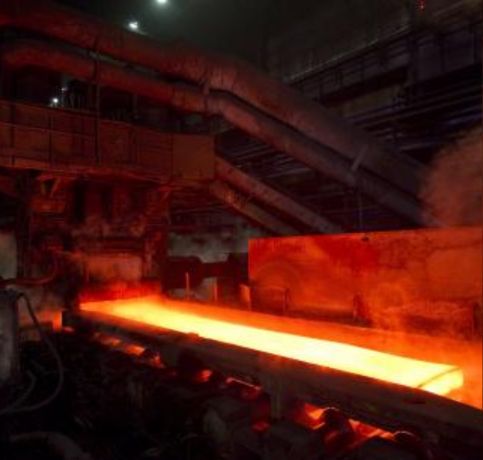

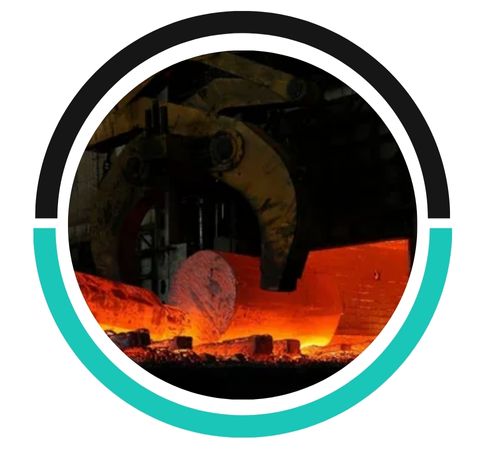

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
After forging Nickel Alloy 200, controlled cooling methods such as air cooling or furnace cooling are typically used to avoid rapid temperature changes and prevent distortion. Gradual cooling helps maintain the material's mechanical properties and prevent cracking.
Post-forging operations for Nickel Alloy 200 include annealing to relieve internal stresses and improve ductility, followed by machining or surface finishing to achieve precise dimensions and surface quality. These processes ensure the alloy's optimal performance and structural integrity.
The ideal temperature range for forging Nickel Alloy 200 is between 1,900°F (1,038°C) and 2,100°F (1,149°C). This range ensures proper malleability and helps achieve the desired mechanical properties during the forging process.
Nickel Alloy 200 Forgings find their place in industries that demand high-performance materials capable of enduring tough chemical and industrial conditions. They’re perfect for chemical processing equipment, heat exchangers, reactor vessels, piping systems, valves, and marine components. Their outstanding resistance to corrosion, especially in alkalis, acids, and reducing agents, makes them ideal for power plants, desalination facilities, and seawater applications. Plus, they’re widely used in the food processing, pharmaceutical, and petrochemical sectors, where durability, corrosion resistance, and structural integrity are paramount. Nickel Alloy 200 Forgings offer a dependable mix of mechanical strength, corrosion resistance, and toughness, making them a top choice for challenging engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
