Kanish Metals is a reliable Super Duplex Steel S32760 Forgings manufacturer and supplier in Dubai, UAE. With their high strength and corrosion resistance, our S32760 forgings are engineered to meet the toughest demands. These forgings find extensive usage in industries including oil and gas, marine, chemical, and power generation. We provide a full variety of sizes and bespoke solutions to suit the precise needs of our customers, with reliability and excellent performance for demanding applications.
Super Duplex Steel S32760 is a high-performance alloy containing around 25% chromium, 7% nickel, 4% molybdenum, and nitrogen. This blend gives superior resistance to general and localized corrosion, especially in chloride environments. S32760 possesses outstanding mechanical characteristics such as tensile strength of approximately 80-85 ksi and excellent impact and fatigue strength. Hardness of the material is usually between 250 and 300 HB, providing high strength without sacrificing weldability, which is suitable for harsh environments.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

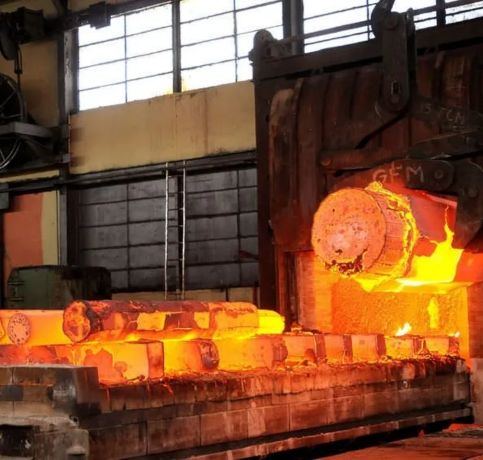

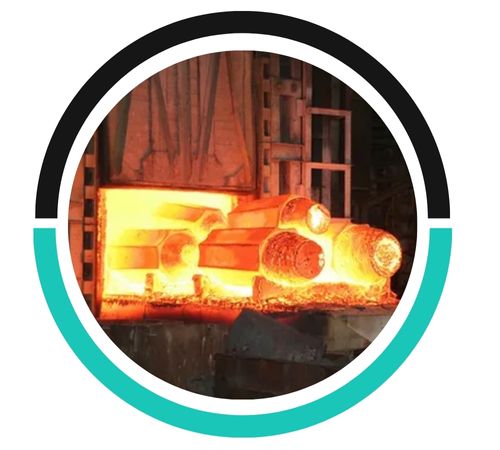

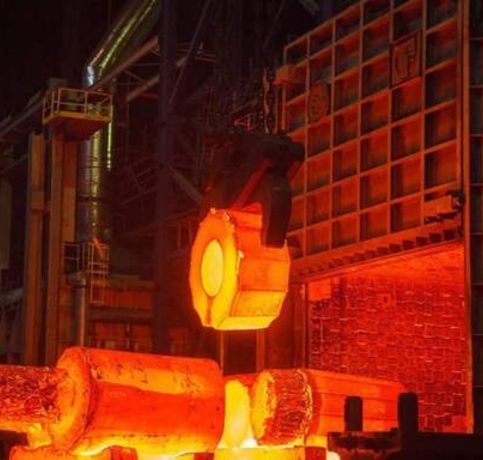

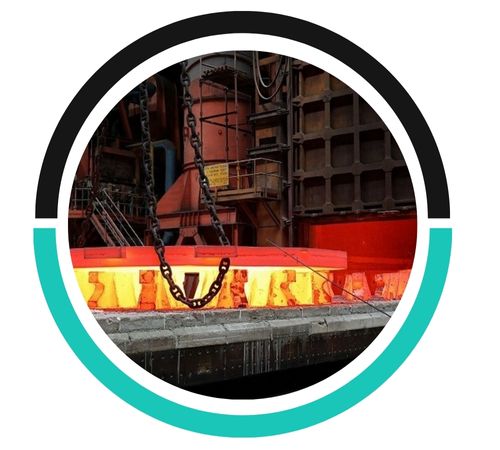

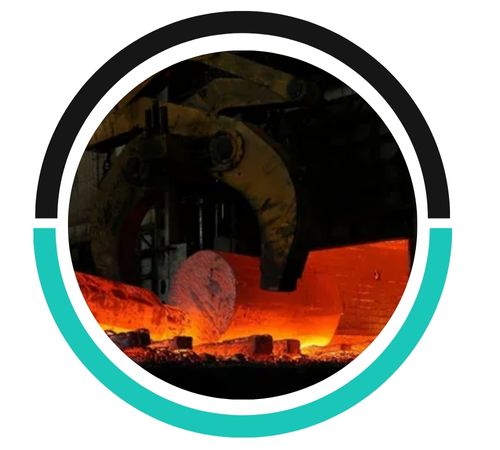

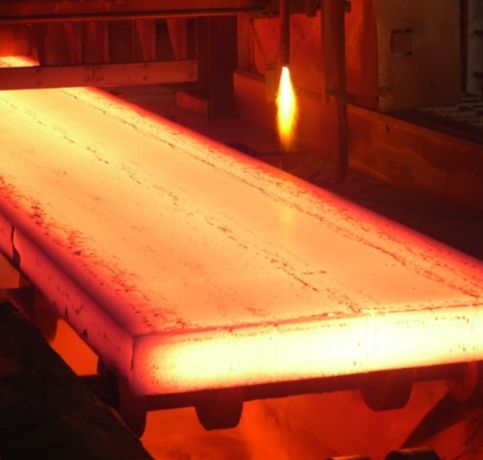

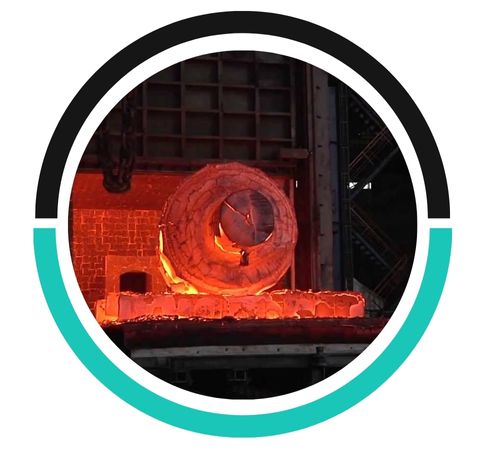

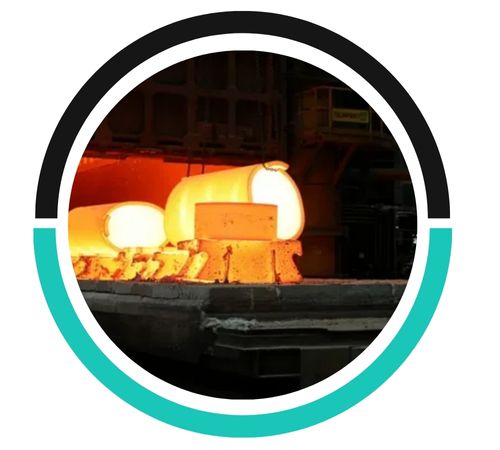

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4501 | S32760 |
Yes, Super Duplex Steel S32760 forgings are highly suitable for offshore and marine applications due to their excellent corrosion resistance, high strength, and resistance to pitting, crevice corrosion, and chloride stress cracking.
Welding processes compatible with Super Duplex Steel S32760 forgings include Tungsten Inert Gas (TIG), Metal Inert Gas (MIG), and Shielded Metal Arc Welding (SMAW), using matching filler materials to maintain corrosion resistance.
Super Duplex Steel S32760 forgings are governed by ASTM A182, ASTM A240, ASME SA-182, and EN 10088-3 standards, ensuring quality, corrosion resistance, and mechanical properties for demanding industrial applications.
Super Duplex Steel S32760 Forgings find applications in numerous fields where both strength and corrosion resistance are essential. These forgings find extensive usage in the oil and gas sector for subsea hardware, valves, and pressure vessels. In marine environments, S32760 is utilized on offshore platforms, pipelines, and seawater desalination units based on its superior seawater corrosion resistance. Additional uses involve heat exchangers, chemical processing equipment, and power generation, where the material is capable of operating under high temperatures, corrosive chemicals, and high pressure environments with superior performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
