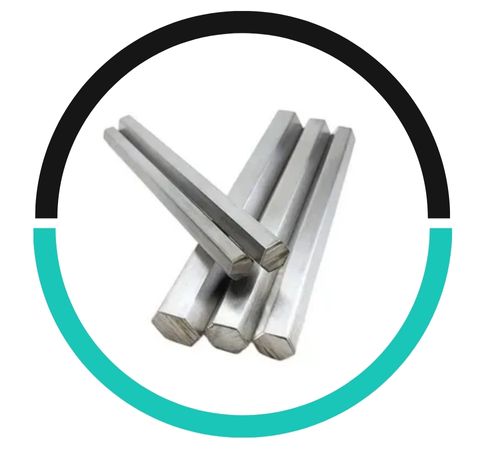

Kanish Metals stands out as a reliable manufacturer and supplier of Stainless Steel 317L Hex Bars and Rods in Dubai, UAE. They pride themselves on delivering top-notch products that are built to withstand corrosion, offer strength, and ensure durability. Stainless Steel 317L is a low-carbon, molybdenum-rich austenitic stainless steel grade, known for its impressive resistance to pitting, crevice corrosion, and harsh chemical environments. The hex bars and rods crafted from this material guarantee precision, reliability, and long-lasting performance in critical industrial settings. Thanks to their advanced manufacturing techniques, rigorous quality control, and prompt delivery, Kanish Metals has earned a reputation as a trusted supplier of Stainless Steel 317L Hex Bars and Rods across various industries in the region.
These hex bars and rods are made up of 18–20% chromium, 11–13% nickel, and 3–4% molybdenum, which significantly boosts their corrosion resistance and mechanical properties. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. The low-carbon content helps reduce carbide precipitation during welding, ensuring they maintain excellent corrosion resistance, toughness, and mechanical stability. Stainless Steel 317L Hex Bars and Rods are perfect for applications that require strength, durability, and long-term reliability, especially in aggressive and corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317l | 0.03 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317l | 8 | 1450 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 317L Hex Bars/Rods are commonly used in chemical processing, marine environments, pharmaceuticals, and food processing due to their excellent corrosion resistance and high strength. They are ideal for handling aggressive chemicals, including sulfuric acid, bleaching solutions, and pulp liquor. In construction, they are used for structural components and fittings.
SS 317L Hex Bars/Rods typically range from 6 mm to 100 mm in diameter, with lengths up to 6 meters. Tolerances generally conform to ±0.5 mm for diameter. These dimensions and tolerances ensure precision for machining, making them ideal for applications requiring high strength, corrosion resistance, and tight fit.
The high chromium (18-20%) and molybdenum (3-4%) content in SS 317L enhances its resistance to pitting and crevice corrosion by forming a passive oxide layer that protects against chloride-induced degradation. The low carbon content further reduces the risk of stress corrosion cracking, ensuring durability in harsh chloride environments.
These products are widely utilized in industries that prioritize high corrosion resistance, mechanical performance, and durability. They are particularly suited for chemical processing equipment, heat exchangers, marine components, pump shafts, valve bodies, and applications in petrochemical plants. Their outstanding resistance to chloride corrosion makes them ideal for the oil and gas, power generation, and food processing sectors. Moreover, they find use in pharmaceutical and medical equipment, where hygiene and corrosion resistance are paramount. Stainless Steel 317L Hex Bars and Rods offer a dependable blend of strength, durability, and corrosion resistance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
