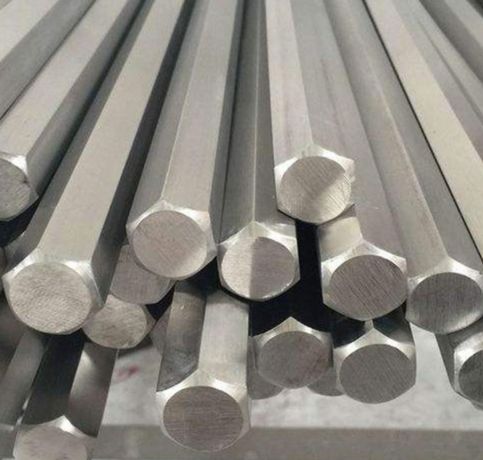

Kanish Metals stands out as a top manufacturer and supplier of Stainless Steel 17-4 PH Hex Bars and Rods in Dubai, UAE. They’re known for delivering high-quality products that boast remarkable strength, toughness, and resistance to corrosion. This particular stainless steel, known as 17-4 PH (UNS S17400), is a martensitic precipitation-hardening alloy that merges impressive mechanical properties with solid corrosion resistance across various environments. It’s celebrated for its high strength, hardness, and stability in dimensions, even after undergoing heat treatment. The hex bars and rods crafted from this alloy are made with precision, ensuring they are durable, accurate, and built to last. Thanks to their advanced facilities, rigorous quality standards, and prompt delivery, Kanish Metals has earned a reputation as a reliable supplier of Stainless Steel 17-4 PH Hex Bars and Rods on a global scale.
These hex bars and rods are made up of 15–17.5% chromium, 3–5% nickel, 3–5% copper, along with small amounts of niobium/columbium for that extra touch of precipitation hardening. Depending on how they’re heat-treated, they can achieve a tensile strength ranging from 930 to 1310 MPa, a yield strength between 725 and 1170 MPa, and an elongation of about 8 to 12%. This alloy is not only hard but also tough, showing great resistance to stress corrosion cracking while maintaining stability at service temperatures up to 600°F (316°C).
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
Stainless Steel 17-4 PH Hex Bars and Rods find their place in a variety of applications where high strength, wear resistance, and corrosion protection are essential. They’re perfect for aerospace components, petrochemical processing equipment, pump shafts, valves, fasteners, and marine hardware. Their exceptional fatigue and mechanical properties make them ideal for industries like defense, nuclear, and power generation. Plus, they’re also used in medical instruments, food processing equipment, and structural applications that demand long-lasting durability. With their outstanding balance of strength, corrosion resistance, and toughness, Stainless Steel 17-4 PH Hex Bars and Rods are a go-to choice for many industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
