Kanish Metals stands out as a reliable manufacturer and supplier of high-performance Nimonic 86 Bars and Rods, proudly based in Dubai, UAE. We focus on providing top-notch nickel-based alloys that are specifically designed to endure extreme temperatures and harsh environments. Our Nimonic 86 bars and rods are crafted with precision to meet the rigorous standards of industries like aerospace, power generation, and high-temperature manufacturing. With a strong commitment to quality, reliability, and customer satisfaction, Kanish Metals offers customized solutions and timely deliveries. Our dedication to excellence has made us a go-to partner for clients looking for durable and high-strength Nimonic alloy products throughout the UAE and beyond.
Nimonic 86 is a superalloy made from nickel and chromium, enhanced with molybdenum, aluminum, titanium, and cobalt. Its typical makeup consists of about 58% nickel, 27% chromium, 9% cobalt, 1.8% molybdenum, 1.4% aluminum, and 1.9% titanium. This alloy is known for its exceptional resistance to high-temperature oxidation and creep. In terms of mechanical properties, Nimonic 86 boasts a tensile strength of around 1000 MPa, a yield strength of 700 MPa, and impressive elongation characteristics. These features make it perfect for applications where outstanding mechanical strength, stability, and corrosion resistance are crucial under high temperatures.
| Grade | Nimonic 86 – UNS |
|---|---|
| Specification | ASTM UNS |
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS ASTM B166, ASTM B160, ASTM B164, ASTM B446, ASTM B637, ASTM B408, ASTM B425, ASTM B574, ASTM B335, ASTM B473, ASTM B649 |
| Nimonic 86 Round bar size | Diameter: 3mm~800mm |
| Nimonic 86 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nimonic 86 Square bar size | 4mm*4mm~100mm*100mm |

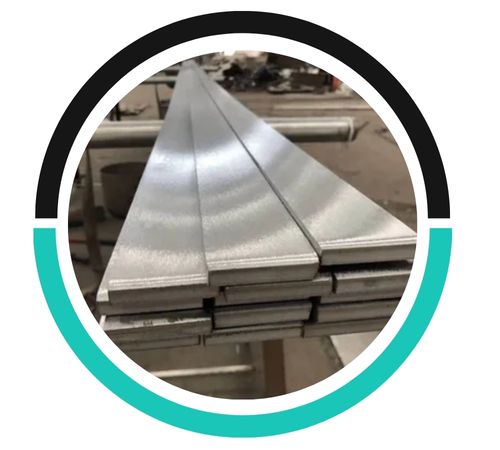

| Nimonic 86 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 86 Hex Bar size | 2mm~100mm |
| Nimonic 86 Billet Size | 1/2″ to 495mm Diameter |
| Nimonic 86 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 86 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 86 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Weight% | Ni | Cr | Mo | Ce | C |
|---|---|---|---|---|---|
| Alloy 86 | 65 | 25.0 | 10.0 | 0.03 | 0.05 max |
| Material | Treatment | Temperature °C | UltimateTensile Strength MPa | Yield Strength (0.2% Offset) MPa | Elongation on 5.65 √ 50(%) |
|---|---|---|---|---|---|
| Alloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 300 | 251 | 692 | 49 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 500 | 243 | 661 | 54 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 700 | 239 | 557 | 56 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 850 | 173 | 319 | 69 |
Nimonic 86 rods are available in various sizes ranging from 6mm to 100mm in diameter, with finishes including hot-rolled, cold-drawn, and polished options for enhanced surface quality.
Yes, Nimonic 86 rods can be supplied in both polished and matte finishes, depending on the supplier and specific requirements for your application or aesthetic preferences.
Nimonic 86 rods typically come in standard sizes ranging from 0.25 inches to 3 inches in diameter, with lengths varying between 3 feet to 12 feet, depending on the supplier.
Nimonic 86 Bars and Rods are utilized in demanding applications where heat, oxidation, and mechanical stress resistance are vital. In the aerospace sector, they are found in turbine blades, jet engines, and exhaust components due to their ability to withstand high temperatures. The power generation industry employs them in gas turbines, combustion chambers, and heat exchangers. In chemical processing, Nimonic 86 stands up to aggressive environments in reactors and pressure vessels. Additionally, they are used in automotive turbocharger components, nuclear applications, and parts for industrial furnaces, delivering unmatched performance in conditions that require long-lasting durability under extreme circumstances.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
