Kanish Metals stands out as a reliable manufacturer and supplier of Nimonic 115 Bars and Rods in Dubai, UAE. They offer top-notch products that are crafted for outstanding strength, high-temperature performance, and resistance to corrosion. Nimonic 115 (UNS N115) is a nickel-based superalloy specifically designed for tough environments, boasting excellent creep resistance, oxidation resistance, and thermal stability at temperatures soaring up to 1000°C. Thanks to its remarkable mechanical properties, it’s the go-to choice for aerospace, gas turbine, power generation, and chemical processing applications. With a commitment to precision and rigorous quality control, Kanish Metals ensures that their Nimonic 115 Bars and Rods deliver dimensional accuracy, toughness, and dependable long-term performance for critical engineering projects.
These Bars and Rods are made up of about 65–70% nickel, 19–21% chromium, 3–5% titanium, 1.5–2.5% aluminum, along with trace amounts of cobalt, molybdenum, and carbon. They offer impressive tensile strength ranging from 1000–1050 MPa, yield strength between 650–700 MPa, and an elongation of 20–25%. The alloy is known for its excellent creep rupture strength, high-temperature stability, and oxidation resistance, all while maintaining good weldability and machinability.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |
| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

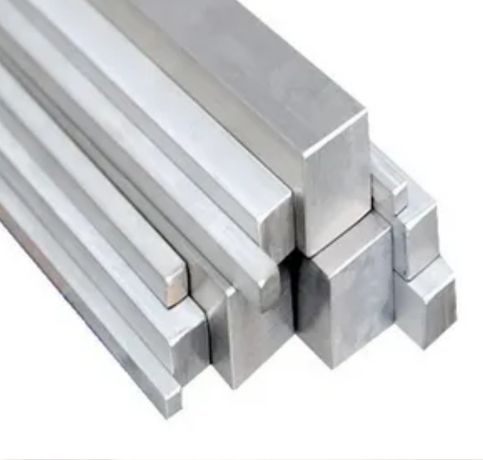

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

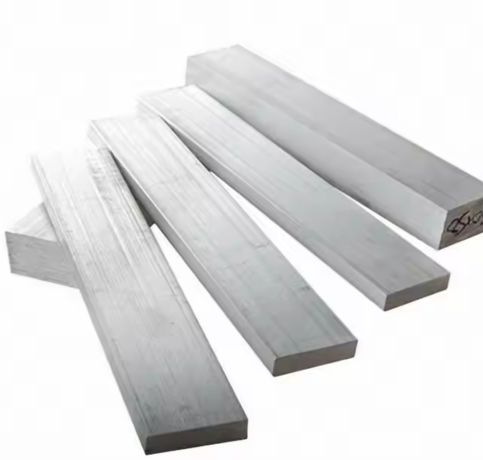

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
Nimonic 115 Bars and Rods find their place in industries that demand materials capable of enduring extreme temperatures and mechanical stress. They are perfect for aerospace components, turbine blades, discs, combustion chambers, and gas turbine engines. Their exceptional creep and oxidation resistance also make them suitable for power generation plants, chemical processing equipment, and components in high-temperature furnaces. Moreover, they are utilized in marine and high-performance automotive applications where long-lasting durability in harsh conditions is crucial. Nimonic 115 Bars and Rods offer a dependable mix of strength, high-temperature stability, and corrosion resistance, making them a top choice for essential industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
