Nimonic 80A Bars and Rods

Kanish Metals stands out as a reliable manufacturer and supplier of Nimonic 80A Bars and Rods in Dubai, UAE. They offer top-notch products that are crafted for outstanding strength and performance, even in the toughest environments. Nimonic 80A (UNS N07080) is a nickel-chromium alloy that gets its strength from the addition of titanium, aluminum, and carbon, giving it remarkable resistance to high-temperature creep, oxidation, and corrosion. This alloy is well-known for maintaining its mechanical properties at elevated temperatures, reaching up to 815°C. With a focus on precision and rigorous quality control, Kanish Metals ensures that their Nimonic 80A Bars and Rods are durable, dimensionally accurate, and reliable for demanding industrial uses.

Nimonic 80 A Rods Price in Ajman, Pure Nimonic 80 A Round Bars UAE, Nimonic 80 A Rectangular Bars Supplier in Sharjah, Nimonic 80 A Rectangular Rods Exporter in UAE, UNS N07080 Pure Nimonic 80 A Round Bars Stockist in Dubai, DIN 2.4631 Nimonic 80 A Hex Bars Supplier in UAE, Nimonic 80 A Cold Drawn Round Bars Distributor in Sharjah, Nimonic 80 A Rods Stockist Ajman

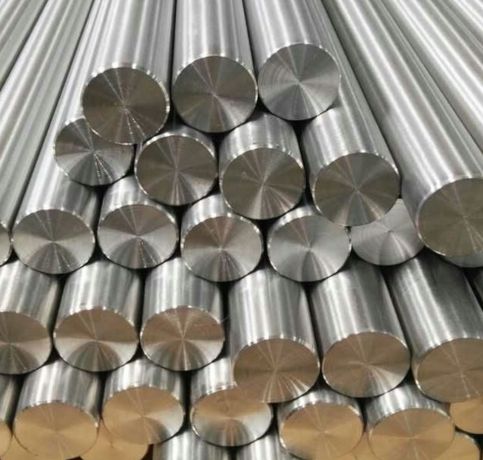

Nimonic 80A Round Bars

Nimonic 80A Rectangular Bars

Nimonic 80A Square Rods

What is Nimonic 80A Bars and Rods?

These Bars and Rods are made up of about 70% nickel, 18–21% chromium, 1.8–2.7% titanium, 1.0–1.8% aluminum, along with small amounts of carbon and iron. They boast a tensile strength of around 925 MPa, a yield strength of 600 MPa, and an elongation of 20–25%. This alloy excels in creep resistance, fatigue strength, and oxidation resistance at high temperatures, all while remaining stable over long-term service.

Nimonic 80A Bars Price List in Sharjah, Nimonic 80A Round Bars Exporter Stockist in Jebel Ali, Stockist of Nimonic 80A Round Bars in Jebel Ali, Pure Nimonic 80A Bars Weight Chart, Nimonic N07080 Rods Dealer in Abu Dhabi, Nimonic 80A Round Bars Manufacturer in Abu Dhabi, Nimonic 80A Square Bars Supplier in Al Ain, Pure Nimonic 80A Flat Bars Price List in Dubai, Nimonic 80A Rectangular Bars Supplier in Ajman

Nimonic 80A Bars and Rods Specification

Standards	Designation
ASTM	B637

Length	Diameter
2-12m	6mm-500mm

Type	Certification
Nimonic 80A Round Bar	ISO 9001:2008

Chemical Compositions of Nimonic 80A Bars

Weight %	Ni	Cr	Ti	Al	C	Si	Cu	Fe	Mn	Co	B	Zr	S
Alloy 80A	Bal	18.0-21.0	1.8-2.7	1.0-1.8	0.10 max	1.0 max	0.2 max	3.0 max	1.0 max	2.0 max	0.008 max	0.15 max	0.015 max

Nimonic 80A Bars Mechanical Properties

Material	Condition	Ultimate Tensile Strength ksi	Yield Strength ksi	Elongation on 4D (min)	Hardness min
Alloy 80A	Solution Annealed & Precipatation Treated (aged)	145	90	20	300 HV

Physical Properties of Nimonic 80A Bar

Density	8.19 g/cm3
Melting point	1320-1365°C

You Need Our Support, to Have Any Projects?

Test Certificate

Why Kanish Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Nimonic 80A Bars and Rods Types

Nimonic 80 A Round Bars Size Chart, Nimonic 80 A Polished Rods Dealer in Abu Dhabi, Nimonic Bars 80 A Supplier in UAE, Nimonic 80 A Hollow Rods Price List in Dubai, Pure Nimonic 80 A Rectangular Bars Supplier in Jebel Ali, Nimonic 80 A Hexagonal Bars Exporter in Abu Dhabi, Nimonic 80 A T-Bars Exporter in UAE, Pure Nimonic 80 A Flat Rods Exporter in Al Ain, Nimonic 80 A Flat Bars UAE, Nimonic N07080 Hollow Round Bar Manufacturer in Ajman

Frequently Asked Questions (FAQ)

Are Nimonic 80A Rod Susceptible To Galvanic Corrosion?

Yes, Nimonic 80A, a nickel-based alloy, can be susceptible to galvanic corrosion when in contact with materials that have significantly different electrochemical potentials, especially in the presence of an electrolyte.

Can Nimonic 80A Bar Be Welded?

Yes, Nimonic 80A bar can be welded. It is commonly welded using techniques like TIG or MIG welding, with preheating and post-weld heat treatment to prevent cracking.

What Sizes and Finishes Are Available for Nimonic 80A Bar ?

Nimonic 80A bars are available in various sizes, typically from 6mm to 250mm in diameter, and lengths up to 6 meters. Common finishes include bright, polished, and cold-drawn.

Nimonic 80A Bar and Rod Uses

Nimonic 80A Bars and Rods find their place in industries that require high strength, heat resistance, and corrosion protection. They’re perfect for aerospace components like turbine blades, discs, and fasteners, as well as in gas turbine engines and power generation facilities. Their outstanding resistance to oxidation and creep makes them ideal for furnace components, nuclear reactors, petrochemical processing, and marine applications. Plus, they’re used in high-performance automotive exhaust systems and other engineering projects that demand durability in extreme temperatures. Nimonic 80A Bars and Rods strike a great balance between mechanical strength, oxidation resistance, and long-term stability, making them a go-to choice for critical high-temperature applications.
