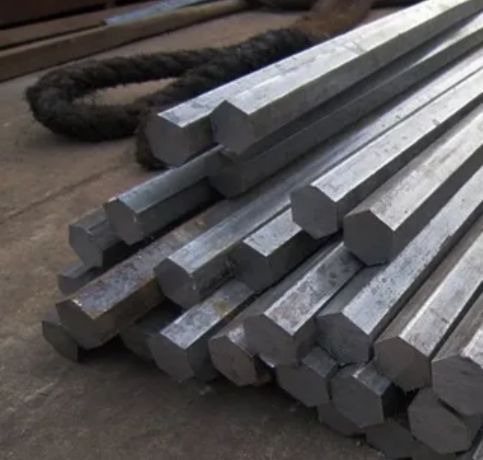

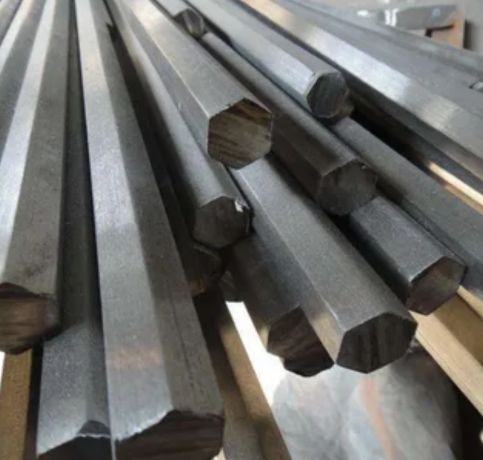

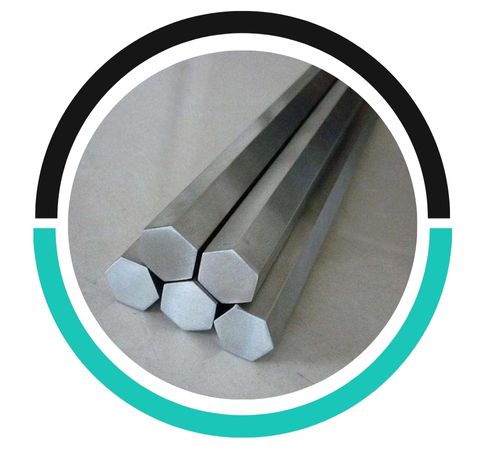

Kanish Metals is one of the leading suppliers of Alloy Steel Hex Bars in Dubai, UAE. Reputed for their high strength, hardness, and resistance to wear, these bars are constructed from high-strength alloy steel and utilized in severe applications in different industries. Alloy Steel Hex Bars come in an assortment of sizes and grades to address the needs of diverse industries. For construction, automotive, or heavy machinery uses, Kanish Metals provides every hex bar to the highest quality and performance standards, offering dependable solutions for commercial and industrial requirements.
Alloy Steel Hex Bars are constructed from alloys of carbon, manganese, chromium, and molybdenum with minimal additions of vanadium or nickel. These bars provide tensile strength between 600 to 1100 MPa, yield strength between 350 to 850 MPa, and hardness of up to 55 HRC. The alloy exhibits superior toughness, resistance to fatigue, and high-temperature resistance. Alloy Steel Hex Bars also possess higher wear resistance and machinability and are thus capable of producing precision components in harsh environments.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Alloy steel hex bars are manufactured by hot rolling or forging alloy steel billets, followed by precision machining, annealing, and surface finishing to achieve the desired size, strength, and quality.
The best finishes for corrosion resistance in alloy steel hex bars and rods include zinc plating, chrome plating, electropolishing, and black oxide coating, as well as applying epoxy or powder coatings for additional protection.
Alloy Steel Hex Bars find extensive application in businesses dealing with high-strength, high-wear materials. They find application in bolt manufacturing, nuts, gears, and shafts, apart from components found within automotive and aerospace industries. Hex bars are also utilized on a large scale to manufacture heavy machinery, oil and gas equipment, and power generation components. Their distinctive shape makes them easy to fabricate and machine, which makes them particularly well-suited for applications in construction and the structural industry where there is a demand for high mechanical performance. They are also utilized in tooling, fasteners, and precision machining sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
