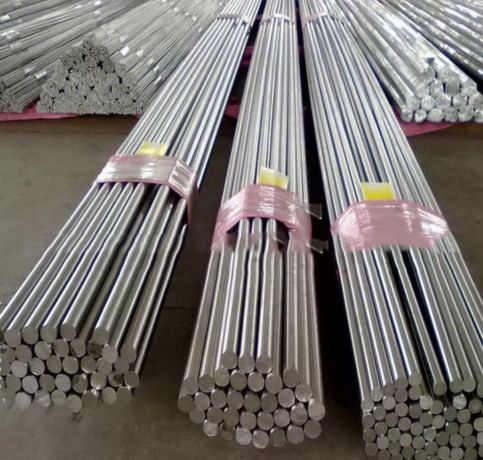

Kanish Metals is a reputable producer and supplier of Alloy Steel F5 bars and rods in Dubai, UAE, with high-quality products available for application under high-temperature and pressure conditions. With their extensive experience of working with alloy steel materials, Kanish Metals supplies F5 bars and rods according to high international standards and specifications. These are commonly employed in industries requiring strength, resistance to heat, and consistent reliability over a prolonged period. With its relentless emphasis on traceability of materials, dimensional accuracy, and punctual delivery, Kanish Metals has established itself as a go-to supplier for customers in the energy, petrochemical, and engineering industries.
Alloy Steel F5 rods and bars consist of a chromium-molybdenum alloy with around 5% chromium and 0.5% molybdenum content. This composition has good resistance to oxidation, fair corrosion resistance, and better high-temperature strength. The mechanical properties are usually characterized by a tensile strength of 485–655 MPa, yield strength of 275 MPa as a minimum, and excellent creep resistance. F5 alloy steel is quite amenable to heat treatment, providing better hardness and structural stability, and is therefore used in components that work under conditions of thermal and mechanical stress.
Size : 100 to 6000mm Length and 5 to 500mm Dia.
Standard Specification : ASME SA182/ ASTM A182
Diameter : 10 To 200 mm
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Length : 1000 To 6000 mm Long
Form : Square, Round, Rectangle, Hex (A/F), Ingot, Billet, Forging Etc
Thickness : 0.5 to 500mm Diameter
Finish : NO.4 Finish, Matt Finish, BA Finish, Black, Bright Polished, Rough Turned
| Grade | Mn | Others | C | Si | Cr | Mo | P |
| ASTM A182 F5 | 0.30-0.60 | – | 0.15 Max | 0.50 Max | 4.0-6.0 | 0.44-0.65 | 0.035 Max |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
| ASTM A182 F5 | 415 | 30 | 205 | – |
| STANDARD | UNS | WERKSTOFF NR. |
| ASTM A182 F5 | K41545 | 1.7362 |
|
SHAPE |
POUNDS PER FOOT |
|---|---|
|
Flat |
Thickness (in.) x Width (in.) x 3.4 |
|

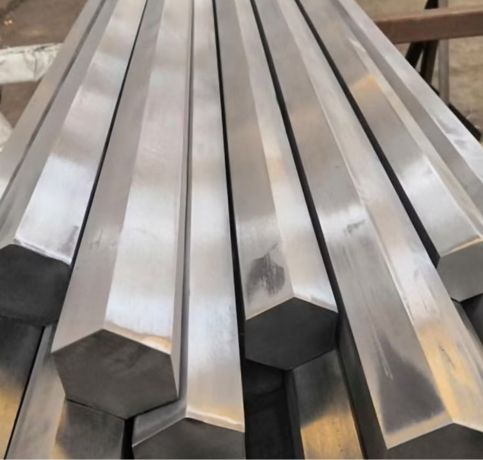

Hexagon |
D2 x 2.945 |
|

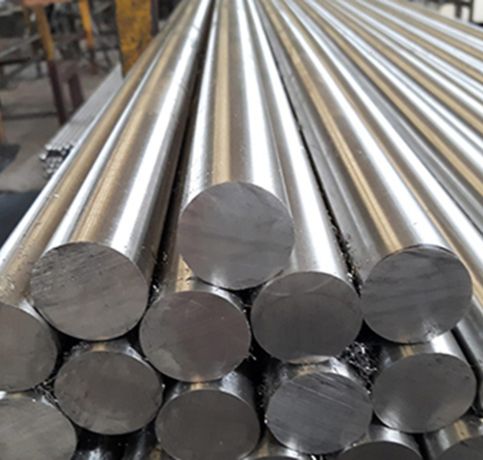

Round |
D2 x 2.67 |
|

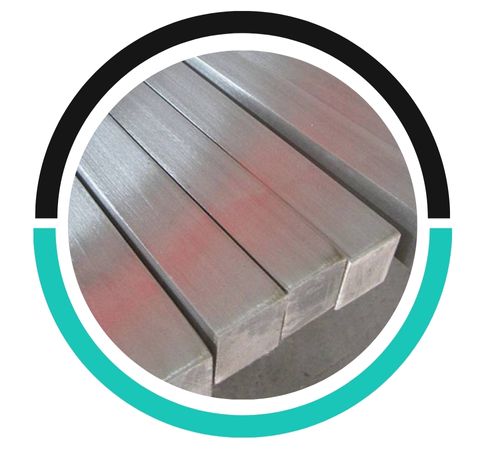

Square |
D2 x 3.4 |
Alloy Steel F5 Bars and Rods are widely used in aerospace, power generation, and petrochemical industries for high-temperature applications like turbine blades and heat exchangers.
These bars offer exceptional strength, high-temperature stability, and resistance to oxidation, making them ideal for demanding environments.
Alloy Steel F5 rods and bars are extensively used in power plants, refineries, petrochemical processing units, and other high-temperature service conditions. They find general use in the production of pressure vessels, boiler parts, piping systems, and heat exchanger components. Due to the ability of the alloy to sustain thermal fatigue and oxidation, they find application in steam service and superheaters. F5 is also employed in the chemical industry for reactor components and process piping when resistance to high temperatures and mild corrosive environments is desired. Its toughness and strength ensure consistent performance in harsh operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
