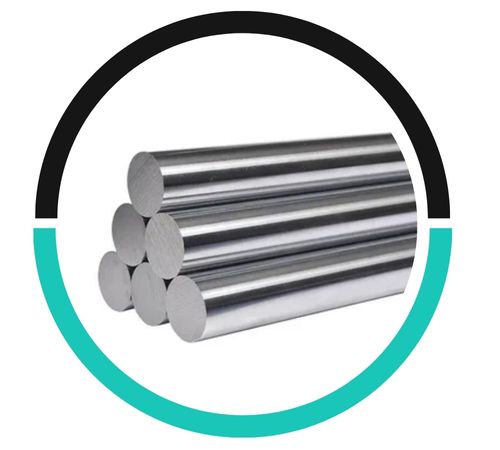

Kanish Metals stands out as a top manufacturer and supplier of Alloy Steel F9 Bars and Rods in Dubai, UAE. They pride themselves on delivering high-quality materials that meet global industry standards. Renowned for their precision manufacturing and durability, Kanish Metals focuses on customer satisfaction, providing Alloy Steel F9 Bars that excel in high-temperature and high-pressure settings. With a state-of-the-art facility and a skilled team, they guarantee consistent mechanical performance and precise dimensions in every product. Catering to sectors like oil and gas, power generation, and petrochemicals, Kanish Metals is a trusted name for quality, timely delivery, and customized solutions in challenging engineering environments.
Kanish Metals’ Alloy Steel F9 Bars and Rods are primarily made up of chromium (9%) and molybdenum (1%), which significantly boost their strength, hardness, and resistance to corrosion, especially at high temperatures. These bars showcase impressive mechanical properties, with tensile strength ranging from 585 to 760 MPa and yield strength around 415 MPa. Their hardness typically lies between 170 and 230 HB. Designed to comply with ASTM A182 and A335 standards, Alloy Steel F9 Bars also provide good weldability and formability. These features make them perfect for environments that demand thermal stability and pressure resistance.
| Steel Round Bars type | F9 Round bars Die Steel Bar |
|---|---|
| Spring steel | 65Mn, 1566, 60Si2Mn, 9260, etc. |
| Standards | ASTM A689, JIS G4801, DIN 17221, GB/T 18254, ASTM A295, JIS G4805, etc. |
| Cold heading steel | ML25, ML35, etc. |
| Alloy structural steel | 40CrNiMo, SAE4330, 42CrMo, 15Cr2Ni2, 40CrNi2Mo, 35CrMoV,12Cr1MoV, ASTM4130, SCM420, 40CrV, etc. |
| Bearing steel | GCr15, SAE52100, GCr15SiMn, 100CrMnSi6-4, SJU2, etc. |
| Available Material Grade | 42CrMo4/SCM440/AISI 4140/DIN 1.7225, 4130 / 1.7218, 4140 / 1.7225, 4340 / 1.6582, 5140 / 1.7035, 8620 / 1.6523, EN19 / EN24H13 alloy steel round bar, 42 Crmo4 Alloy Steel Round Bar, AISI 4140 alloy steel round bar , 42CrMo4 alloy steel rods
|
| Military steel | 20Cr2Ni4A, 18Cr2Ni4WA, 23CrNiMo7-4-7, etc. |
| F9 Round bars Diameter | 5mm-500mm (Customized size is acceptable) |
| F9 Round bars Length | 1m-9m or according to the customer’s requirement. |
| F9 Round bars Range | Range – 3.17mm to 350mm dia |
| F9 Round bars Technique | Forged/Hot Rolled/Cold Drawn/Peeled |
| F9 Round bars Surface | bright round bar, pickled round bar, black round bar |
| F9 Round bars Type | Round bar, rod, square bar, flat bar, hexagon bar, angle bar, channel bar, threaded bar |
| Package Details | Standard seaworthy package(wooden boxes package, pvc package, or other package) |
| Other processing service | Hot dipped Galvanized, pre-galvanized, Color painting,coated, cutting, bending,punching |
| Test Certificate | Mill Test Certificate as per EN 10204 / 3.1B |
| Grade | C | Mn | Si | P | S | Cr | Mo |
| Alloy Steel F9 | 0.15 max | 0.3-0.6 | 0.5-1 | 0.03 | 0.03 | 8-10 | 0.9-1.1 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 380 | 585 | 20 % |
|
SHAPE |
POUNDS PER FOOT |
|---|---|
|
Round |
D2 x 2.67 |
|
Hexagon |
D2 x 2.945 |
|
Square |
D2 x 3.4 |
|
Flat |
Thickness (in.) x Width (in.) x 3.4 |
Alloy Steel F9 Bars and Rods find extensive applications in high-pressure and high-temperature settings due to their remarkable strength and heat resistance. In the oil and gas sector, they are essential for heat exchangers, pressure vessels, and piping systems. Power plants depend on them for components like boilers, steam lines, and turbine parts. Additionally, they are widely utilized in refineries and chemical processing facilities for creating fittings, valves, and flanges that can endure corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
