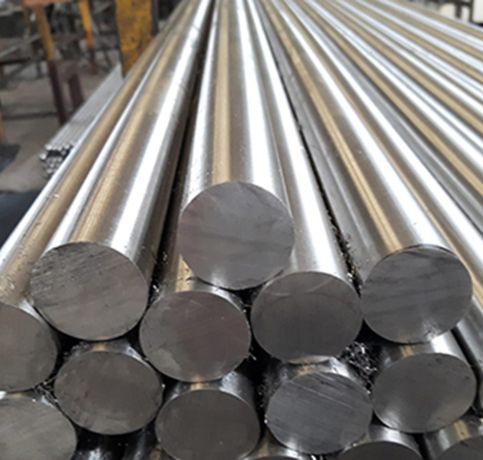

Kanish Metals is a top-notch manufacturer and supplier of OHNS Round Bars based in Dubai, UAE. We take pride in providing high-quality tool steel products to a diverse range of industries. Our OHNS (Oil-Hardening Non-Shrinking Steel) round bars are crafted with precision and meet international quality standards, ensuring outstanding toughness, dimensional stability, and wear resistance. Perfect for high-performance industrial tools and dies, our bars are produced using cutting-edge processes and undergo rigorous quality checks. With a commitment to reliability, durability, and customer satisfaction, Kanish Metals is your go-to source for OHNS steel solutions in the Middle East and beyond.
OHNS Round Bars are crafted from premium tool steel, typically featuring Carbon (0.90–1.10%), Manganese (1.00–1.20%), Chromium (0.50–1.00%), Vanadium (0.15–0.30%), and Tungsten (0.50–1.00%). These elements contribute to the exceptional hardness, toughness, and abrasion resistance of OHNS. With a tensile strength ranging from 700–850 MPa, it maintains stability during hardening thanks to its low distortion. The oil-hardening property and non-shrinking characteristics make OHNS steel an excellent choice for tools that require sharp edges, consistent dimensions, and a long service life even under high-stress conditions.
| Grade | OHNS Round Bar |
|---|---|
| Specification | aaaaaaaaaaaaa |
| OHNS Square bar size | 4 to 100mm |
| OHNS Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| OHNS High Speed Steel Hex Bar size | 2-100mm A/F |
| OHNS Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| OHNS Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
| OHNS High Speed Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| OHNS Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| OHNS Steel Section | 3.0 to 12.0mm thickness |
| OHNS High Speed Steel Round bar size | Diameter: 3-~800mm |
| OHNS Billet Size | 1/2″ to 495mm Diameter |
| OHNS Steel Round Bar Standard Dimensions | Diameter / Height: |
| OHNS Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| OHNS Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| OHNS High Speed Steel Technique | OHNS Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| OHNS Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | OHNS Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our OHNS Round bar conforms to NACE MR0175/ISO 15156 | |
| C | Si | Mn | P | S | Cr | W |
| 0.85-1.00 | 0.15-0.35 | 1.00-1.20 | 0.030max | 0.030max | 0.50-0.70 | 0.50-0.70 |
| Maximum Stress(N/mm²) | Yield Stress(N/mm²) | Elongation | Impact Strength (joule) | Hardness value (BHN) |
| 950 | 465 | 10% | 25 | 288 |
| STANDARDS | 100MnCrW4 | O1 | DIN 2510 | AISI O1 | AFNOR 90MWCV5 | JIS SKS3 |
OHNS Round Bars find extensive use in the tool and die-making industries, thanks to their remarkable hardening properties and dimensional stability. They are perfect for crafting tools like punches, dies, shear blades, cutting tools, forming dies, broaches, and woodworking tools. OHNS is also a favorite in mold-making and precision engineering, where high wear resistance and edge retention are vital. In the automotive and heavy machinery sectors, OHNS bars are utilized in components that face repeated stress and impact. Their non-shrinking nature during heat treatment guarantees accurate and stable components, making them indispensable in critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
