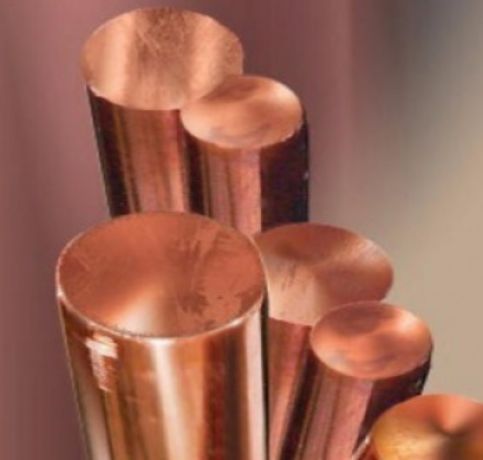

Kanish Metals, located in Dubai, UAE, stands out as a top manufacturer and supplier of premium Copper C11400 Bars and Rods, designed to meet a wide range of industrial needs. Known for their precision and durability, these copper products are made using cutting-edge metallurgical techniques to guarantee consistent performance. Kanish Metals places a strong emphasis on quality control and timely delivery, serving clients in the construction, electrical, and manufacturing sectors. With a solid reputation for excellence and reliability, the company offers tailored solutions to fit specific project requirements, making Copper C11400 Bars and Rods the go-to choice for industries looking for high-quality copper products in the UAE and beyond.
Copper C11400, often referred to as electrolytic tough pitch (ETP) copper, is made up of 99.9% pure copper with just a hint of oxygen. It boasts outstanding electrical and thermal conductivity, impressive ductility, and excellent corrosion resistance. The mechanical properties include a good tensile strength, typically between 210 and 250 MPa, and an elongation of 30% to 50%, which makes it incredibly malleable for shaping and bending. This unique blend of strength and softness allows it to be easily machined and drawn into rods or bars without losing structural integrity, all while maintaining exceptional conductivity and performance in demanding industrial settings.
| Specification | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Size Range | 3.17 MM TO 350 MM DIA |
| Length | Random, Fix & Cut Length |

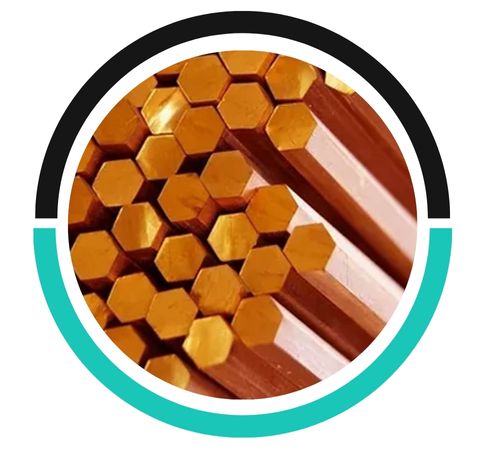

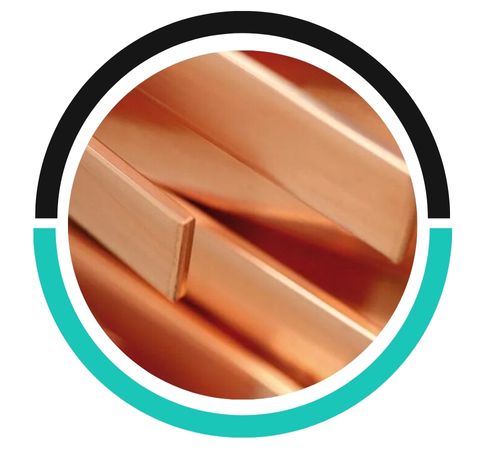

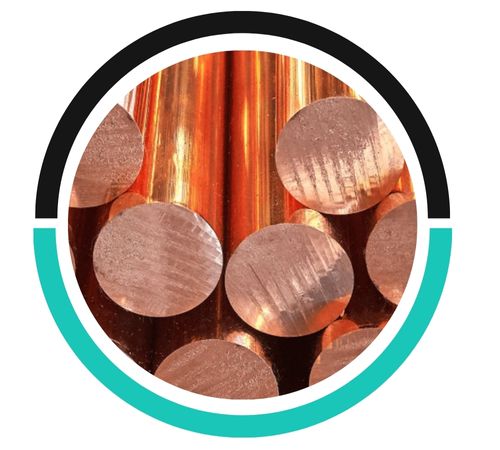

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Melting Point – Liquidus°F | 1980 |
|---|---|
| Densitylb/cu in. at 68°F | 0.322 (1) |
| Specific Gravity | 8.91 (2) |
| Electrical Conductivity% IACS at 68°F | 100 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 224 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
Copper C11400 Bars and Rods have good thermal conductivity but are not ideal for high-temperature applications. They are best used at temperatures up to 200°C to prevent softening and degradation.
Yes, Copper C11400 Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly option for sustainable industrial use and reducing environmental impact.
Copper C11400 Bars and Rods are naturally resistant to corrosion in many environments. However, in harsh conditions such as marine or acidic environments, additional protective coatings may be recommended.
Copper C11400 Bars and Rods find extensive use in the electrical, construction, and manufacturing industries. They are crucial components in wiring, busbars, connectors, and switchgear due to their superior conductivity. Their resistance to corrosion makes them ideal for plumbing, heat exchangers, and architectural applications like roofing and cladding. Additionally, they are utilized in industrial machinery, transformers, and electronic devices. These bars and rods can be shaped into complex designs for custom engineering projects. Their versatility, combined with high strength and durability, makes Copper C11400 Bars and Rods an excellent choice for various projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
