Copper C10300 Bars/Rods

Kanish Metals stands out as a reliable manufacturer and supplier of Copper C10300 Bars and Rods in Dubai, UAE, providing top-notch solutions for a variety of industrial needs. Renowned for its excellent conductivity, corrosion resistance, and durability, Copper C10300 is a go-to choice across many sectors. Thanks to cutting-edge technology and rigorous quality standards, Kanish Metals guarantees outstanding performance and dependability in every product. Our Copper C10300 Bars and Rods come in a range of sizes and specifications, tailored to meet the demands of global markets. We prioritize delivering products that blend strength, precision, and longevity, effectively serving electrical, thermal, and mechanical applications.

C10300 Copper Round Bars UAE, Copper C10300 Hexagonal Bars Supplier in Sharjah, C10300 Copper Bus Bars Exporter in UAE, Copper C10300 Hex Bars Stockist in Dubai, C10300 Copper Alloy Rectangular Bars Supplier in UAE,Copper C10300 Square Bars Distributor in Sharjah, 3/16" Copper C10300 Rod Stockist Ajman, C10300 3/8" Copper Alloy Round Rod Price in Ajman, Copper Flat Bars UAE

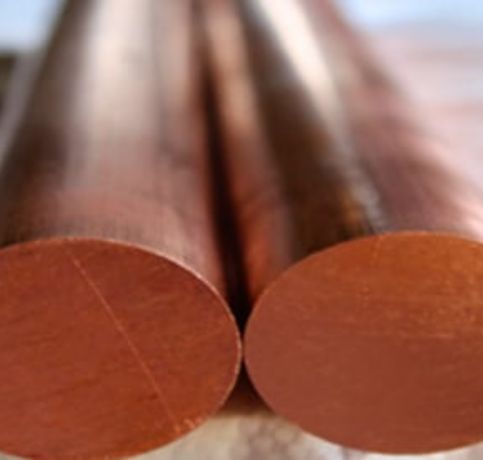

Copper C10300 Forging Rod

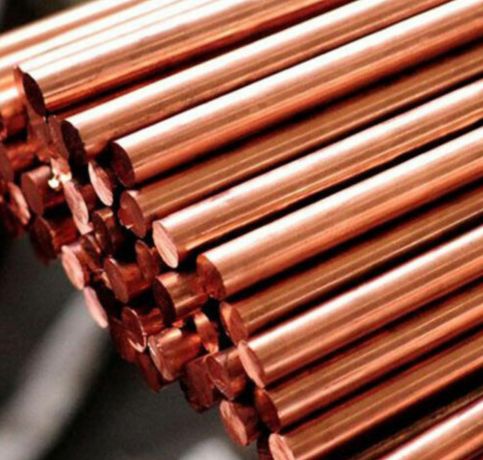

Copper C10300 Bus Bars

C10300 Copper Bright Rods

What is Copper C10300 Bars and Rods

These Copper C10300 Bars and Rods are made from high-purity copper with minimal impurities, ensuring remarkable electrical and thermal conductivity. This alloy features low oxygen content, which boosts its corrosion resistance and weldability. On the mechanical side, it boasts good tensile strength, ductility, and excellent formability, making it perfect for machining and fabrication. The material can handle high thermal and electrical loads while maintaining its structural integrity. Its mechanical performance, combined with durability, makes Copper C10300 Bars and Rods ideal for both heavy-duty and precision applications in industrial and commercial settings.

C10300 Copper Forging Rod Price List in Dubai, Copper C10300 Threaded Bars Supplier in Jebel Ali, Copper C10300 Copper Hexagonal Bars Exporter in Abu Dhabi, C10300 Pure Copper Rods Exporter in UAE, C10300 Copper Round Bars Manufacturer in Ajman, Copper C10300 Round Bars Distributor in UAE, C10300 Copper Half Round Bars Dealer in Abu Dhabi, Stockist of C10300 Copper Forged Bar in Jebel Ali, 20mm Copper C10300 Round Bar Supplier in UAE, C10300 Oxygen Free Copper Rectangle Rods Exporter in Al Ain

Copper C10300 Bar/Rods Specifications

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10300

Copper C10300 Bar and Rods Thermal Properties

Treatment	Maximum*	Minimum*
* Temperature is measured in Fahrenheit.
Hot Working Temperature	1600	1400
Annealing	1200	700

Copper Alloy C10300 Rods Equivalent

Alloy Designation
DIN CEN/TS 13388	CW021A
EN	Cu-HCP
UNS	C10300

You Need Our Support, to Have Any Projects?

Copper C10300 Bars & Rods Physical Properties

Typical values in annealed temper at 20 °C
Thermal expansion coefficient	20 .. 300 °C	16.9	10-6/K
Density		8.92 g/cm³
Thermal conductivity		385	W/(m·K)
Modulus of elasticity	GPa	130	GPa
Specific heat capacity		0.385 J/(g·K)
Electrical conductivity	IACS	98 %
Electrical conductivity	MS/m	57	MS/m
Thermal coefficient of electrical resistance	(0 .. 100 °C)	3.7	10-3/K

Test Certificate

Why Kanish Metals?

Packaging

Copper C10300 Bar/Rods Mechanical Properties

Tensile Strength Rm	Hardness HV *	Temper	Yield Strength Minimum Rp0.2	Elongation Minimum A50mm	Bending 90° gw bw rel. Bending Radius R/T
Mechanical Properties (EN 1652)
MPa	HV		MPa %		Strip Thickness ≤ 0.50mm
≥ 360	≥ 110	R360	320	2	0	0.5
240 .. 300	65 .. 95	R240	180	8	0	0
220 .. 260	40 .. 65	R220	≤ 140 *	33	0	0
290 .. 360	90 .. 110	R290	250	4	0	0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10300 Bar/Rods Types

C10300 Wrought Copper Alloy Rod & Bar Size Chart, C10300 Copper Round Rods Price in Ajman, Copper C10300 Round Bars Supplier in Sharjah, C10300 Copper Bus Bar Stockist in Jebel Ali, Copper C10300 Half Round Bar Supplier in Dubai, C10300 Copper Forged Bar Dealer in Abu Dhabi, 20mm Copper C10300 Round Bar Manufacturer in Abu Dhabi, C10300 Copper Round Rods Supplier in Al Ain

Frequently Asked Questions (FAQ)

How Do I Select The Right Copper C10300 Bars and Rods For My Application?

To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.

Are Copper C10300 Bars and Rods are Recyclable?

Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.

Can Copper C10300 Bars and Rods Be Used For Potable Water Applications?

Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.

Copper C10300 Bar/Rods Uses

In the electrical and electronic industries, Copper C10300 Bars and Rods are widely used due to their exceptional conductivity and reliability. They’re perfect for crafting electrical connectors, conductors, bus bars, and switchgear components. In thermal applications, you’ll find them in heat exchangers, radiators, and cooling systems. Their impressive corrosion resistance makes them invaluable in marine and chemical environments. Plus, these rods and bars find their way into architectural designs, industrial machinery, and precision engineering components. With their versatile properties, Copper C10300 products guarantee efficiency, safety, and long-lasting performance across various applications.
