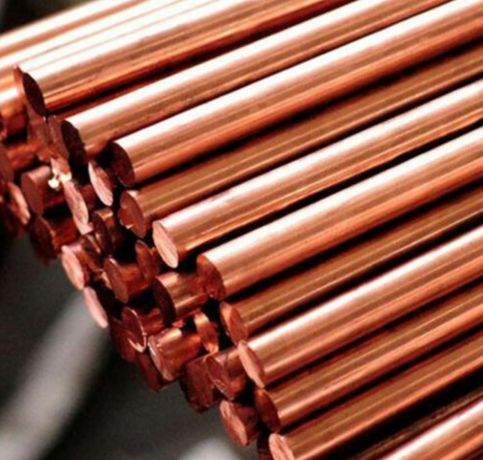

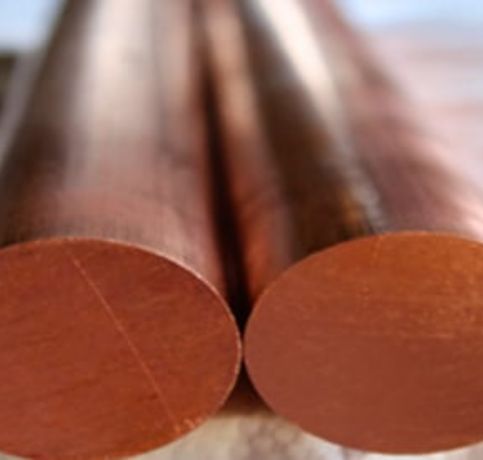

Kanish Metals stands out as a reliable manufacturer and supplier of top-notch Copper Bars and Rods in Dubai, UAE. Their products are known for their durability, strength, and exceptional performance. Thanks to their excellent thermal and electrical conductivity, copper bars and rods find extensive use in electrical, industrial, and architectural sectors. Kanish Metals prides itself on precision manufacturing, rigorous quality control, and compliance with international standards, ensuring that their copper products are dependable for critical applications. With a reputation for timely delivery and a customer-centric approach, the company offers copper bars and rods in a variety of sizes and specifications to cater to the diverse needs of industries both locally and globally.
These Copper Bars and Rods are primarily made from high-purity copper, often exceeding 99.9%, which guarantees outstanding conductivity and remarkable corrosion resistance. This composition gives them impressive ductility, malleability, and durability, making them easy to fabricate, weld, and machine. Mechanically, copper bars and rods boast excellent tensile strength, hardness, and toughness while remaining efficient in electrical and thermal applications. They are also resistant to wear and atmospheric degradation, making them ideal for long-term use in challenging environments. This perfect blend of mechanical integrity and conductivity makes copper bars and rods indispensable across various sectors.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|
| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |
| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
In the electrical and electronic industries, Copper Bars and Rods are highly sought after for their exceptional conductivity, making them perfect for conductors, bus bars, switchgear, connectors, and transformer components. Their corrosion resistance also makes them valuable in plumbing, heat exchangers, marine hardware, and chemical processing equipment. In construction, these copper products are utilized in architectural designs, roofing, and decorative features. Their ductility and machinability further enhance their suitability for industrial machinery, fasteners, and precision components. Overall, the versatility, durability, and performance of copper bars and rods make them a vital asset in numerous applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
