Kanish Metals is a well-respected manufacturer and supplier of **Carbon Steel EN-9 Bars** located in **Dubai, UAE**. We pride ourselves on delivering top-notch medium carbon steel products that are designed for both performance and durability. Our reputation for precision manufacturing and strict adherence to global standards means that our EN-9 bars provide exceptional strength and wear resistance, making them perfect for high-stress mechanical applications. You’ll find our products widely utilized in the automotive, construction, general engineering, and machinery manufacturing industries. At Kanish Metals, we’re dedicated to offering cost-effective, high-performance carbon steel solutions, ensuring timely delivery and outstanding customer support throughout the UAE and beyond.
**Carbon Steel EN-9 Bars** are crafted from a medium carbon steel alloy that contains about **0.50–0.60% carbon**, **0.70–1.00% manganese**, along with trace amounts of **silicon, sulfur, and phosphorus**. These bars boast **high tensile strength (600–800 MPa)** and a **yield strength of around 400–600 MPa**, which can vary based on heat treatment. EN-9 bars are known for their excellent wear resistance, moderate toughness, and enhanced machinability. They are well-suited for oil hardening and tempering processes, which boost their hardness and durability for demanding engineering applications. The blend of strength and hardness makes EN-9 perfect for components that face significant mechanical stress and friction.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |

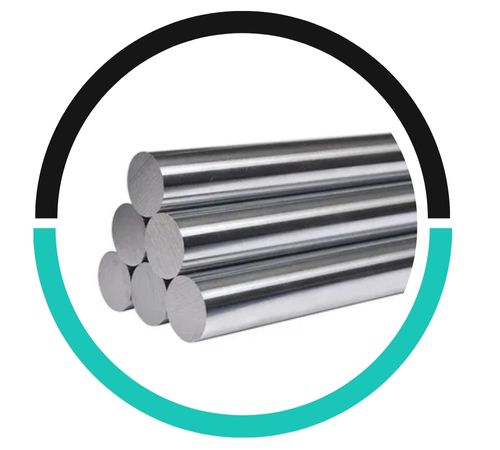

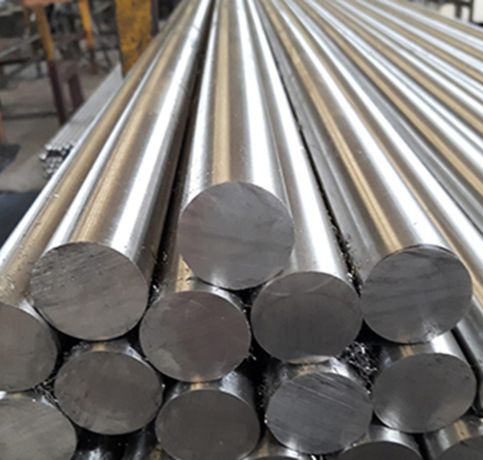

| Round Bar Size | Diameter: 3-~800mm |

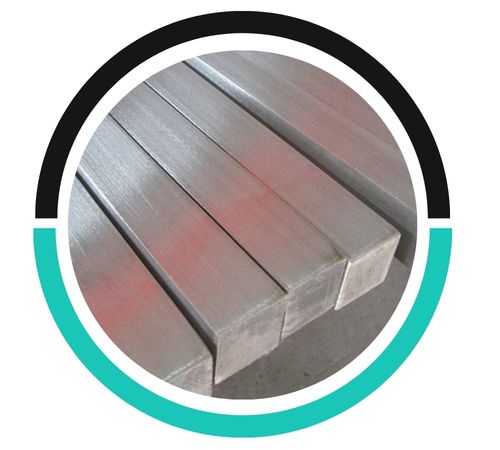

| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

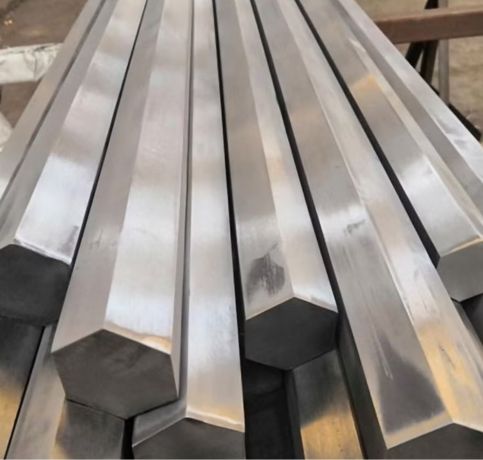

| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

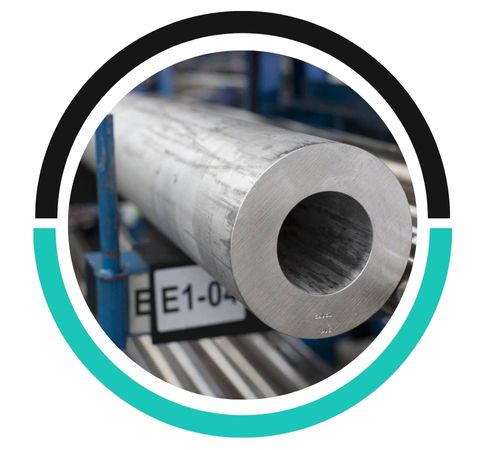

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |

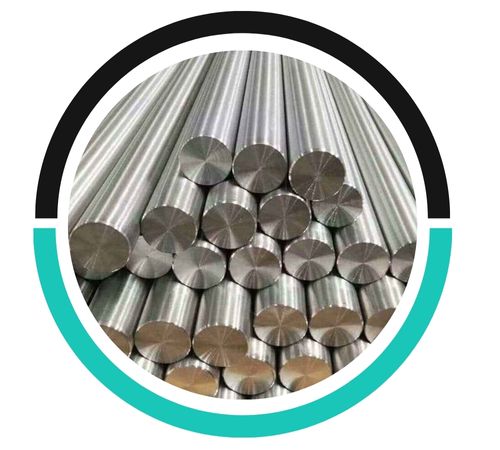

| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |

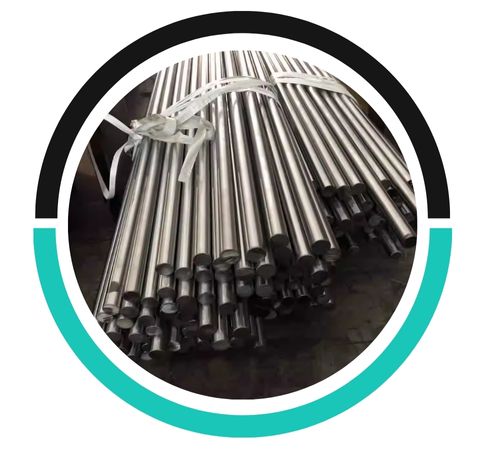

| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Carbon Steel EN-9 is commonly used for manufacturing bolts, nuts, fasteners, and structural components in heavy-duty applications like automotive and construction industries.
EN-9 offers excellent tensile strength, wear resistance, and hardenability, making it suitable for components subjected to mechanical stresses and heavy-duty environments.
Yes, Carbon Steel EN-9 can be heat-treated to enhance its hardness and strength, making it versatile for various engineering applications.
**Carbon Steel EN-9 Bars** find extensive use in applications that demand **high surface hardness and strength**. In the **automotive sector**, they’re commonly used to manufacture gears, axles, crankshafts, and drive shafts. The **construction industry** relies on them for heavy-duty fasteners, supports, and reinforcements. In **general engineering**, EN-9 bars are ideal for keys, studs, cams, rollers, and machine tools. Their capacity for heat treatment makes them particularly suitable for components that require both surface wear resistance and core toughness.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
