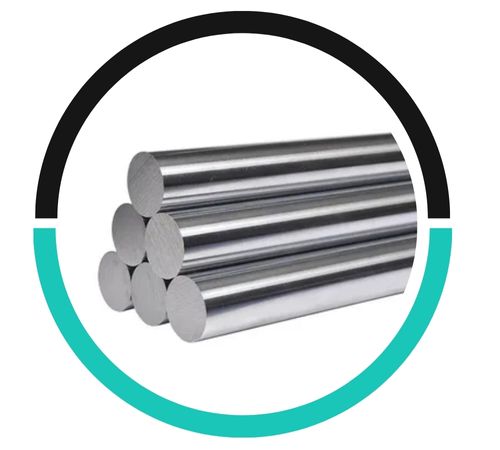

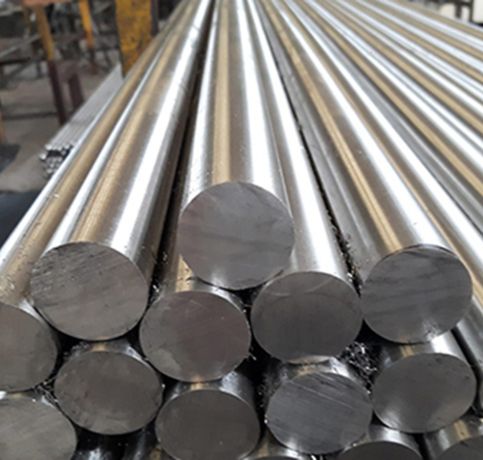

Kanish Metals is a leading manufacturer and supplier of Stainless Steel 904L Round Bars and Rods in Dubai, UAE. Characterized by its higher corrosion resistance and outstanding durability, Stainless Steel 904L is a high-strength alloy that is suitable for use in harsh environments. We offer 904L round bars and rods in different sizes and lengths to suit the specific demands of chemical processing, marine, pharmaceutical, and food processing industries. Our products are produced with rigorous quality measures so they provide consistent performance and long service life in demanding applications.
Stainless Steel 904L is a severely alloyed austenitic stainless steel that has about 20-23% chromium, 25-30% nickel, and 4-5% molybdenum with additions of copper and manganese. This chemistry gives excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, especially in aggressive media such as sulfuric acid and chloride solutions. The material also provides great formability and weldability due to which it is perfectly suited for intricate shapes and high-stress applications. With a tensile strength of approximately 80-100 ksi and hardness of about 220-300 HB, Stainless Steel 904L round bars and rods provide strength along with superior resistance to corrosion.
| Standards | ASTM / ASME |
| Designation | B 649, SB 649 |
| Grade | 904L Round Bars and Rods 904L Round Bars and Rods: ASTM B 649, ASME SB 649 |
EN/DIN | 1.4539 X1NiCrMoCu25-20-5 |
|---|---|
AFNOR | Z2CNDU25.20 |
UNS | N08904 |
AISI | 904L / F904L |
BS | 904S13 |
SS | 2562 |
OTHER | ASTM A182 ASTM A262 ASTM A479 ASTM B649 / ASME SB649 DIN 17440 EN10088-3 EN10272 NACE MR01-75 / ISO 15156 SEW 400-VdTÜV421 |
BRANDS | URANUS B6™ VLX904™ AL-904L™ CRONIFER 1925™ 2RK65™ |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of 904L Stainless Steel Bars 2000 mm up to 6000 mm available
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 904L.0 |
Yes, Stainless Steel 904L Round Bars/Rod can be easily welded, machined, and fabricated, offering excellent work ability due to its high nickel and chromium content, ensuring durability and resistance to corrosion.
Yes, Stainless Steel 904L Round Bars/Rod can be used at high temperatures, typically up to 1000°F (537°C), maintaining excellent corrosion resistance and strength in elevated thermal environments.
Yes, Stainless Steel 904L Round Bars/Rod can be fully recycled without losing quality. Stainless steel is highly recyclable, making it an eco-friendly material for various applications.
Stainless Steel 904L Round Bars and Rods find extensive usage in industries where there is a need for high resistance to corrosive environments. They are typically present in chemical processing facilities, especially for equipment subject to aggressive acids such as sulfuric acid, phosphoric acid, and hydrochloric acid. They are further utilized in the marine sector for seawater application, as well as in desalination facilities owing to their chloride-resistance corrosion. Moreover, 904L round bars and rods are employed in food processing, pharmaceutical, and power generation sectors, providing both resistance to hostile chemicals and high temperatures as well as strength. Such products are suitable for uses demanding exceptional corrosion resistance and long-term reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kanish Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
