Kanish Metals stands out as a top-notch manufacturer and supplier of high-quality Phosphorous Bronze Bars and Rods, proudly based in Dubai, UAE. We’re recognized for our commitment to precision, quality, and reliability, providing non-ferrous alloy products that adhere to global standards for strength, durability, and resistance to corrosion. Our Phosphorous Bronze bars and rods are perfect for applications that demand exceptional wear resistance, impressive fatigue strength, and excellent machinability. With a focus on our customers and cutting-edge manufacturing capabilities, Kanish Metals caters to a wide array of industries, including electrical, marine, and engineering sectors, offering tailored sizes and swift delivery both within the UAE and to international markets.
Phosphorous Bronze is mainly made up of copper (88–95%), tin (5–11%), and a touch of phosphorus (up to 0.35%). This unique blend boosts wear resistance, stiffness, and fatigue strength while enhancing corrosion resistance. Typically, the alloy boasts a tensile strength ranging from 350 to 700 MPa and a Brinell hardness between 80 and 200 HB, depending on its temper and grade. Phosphorous Bronze also showcases remarkable elasticity, good machinability, and high durability, making it an excellent choice for components that face repeated stress, friction, and tough environments.
| Specifications | AMS 4625, ASTM B139, ASME SB139 |

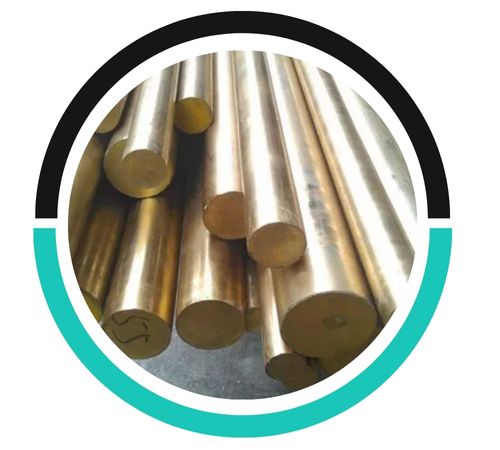

| Phosphor Bronze Round bar size | Diameter: 3mm~800mm |
| Phosphor Bronze Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Phosphor Bronze Square bar size | 4mm*4mm~100mm*100mm |
| Phosphor Bronze Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

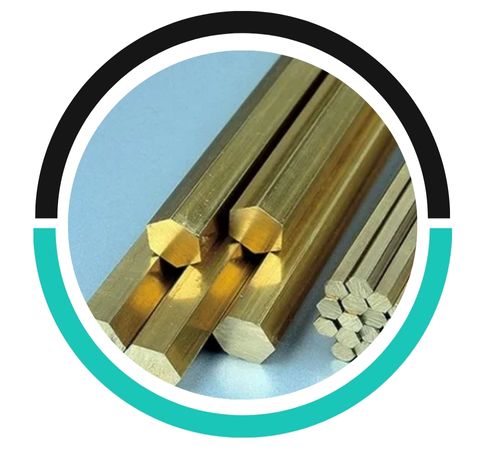

| Phosphor Bronze Hex Bar size | 2mm~100mm |
| Phosphor Bronze Billet Size | 1/2″ to 495mm Diameter |
| Phosphor Bronze Rectangles Size | 33mm x 30mm to 295mm x 1066mm |

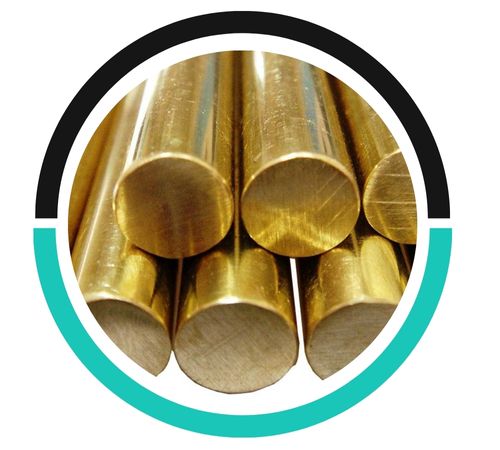

| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Length | 1000mm-6000mm |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Phosphor Bronze Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |

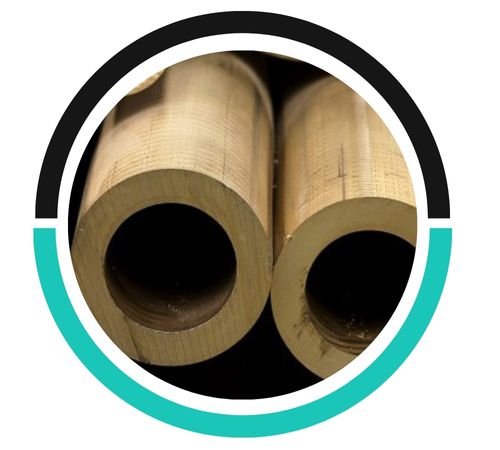

| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Alloy number | Sn | P | Pb | Zn | Cu+Sn+P |
| C5191 | 5.5-7.0 | 0.03-0.35 | ≥99.5 | ||
| C5441 | 3.0-4.5 | 0.01-0.50 | 3.5-4.5 | 1.5-4.5 | ≥99.5 |
| Grade B.S. 1400: 1985 | Nominal Composition | 2% PS N/mm Min | Tensile Strength N/mm Min | Elongation % Min | Brinell Hardness Min |
| PB1 | 89/10/01 | 130 | 250 | 5 | 60 |
| PB1 | 88/12 | 140 | 260 | 7 | 80 |
| PB1 | 90/10 | 130 | 250 | 5 | 60 |
| PB1 | 90.5/9.5 | 130 | 240 | 5 | 80 |
| LPB-1 | 87/8/2/3 | 80 | 175 | 7 | 60 |
| Pb2 | 88/12 | 120 | 195 | 5 | 60 |
| Pb2 PB | 88/12 95/5 | 145 130 | 295 240 | 5 5 | 80 80 |
Phosphorus bronze bars can be welded, but it requires care. The material tends to be brittle at high temperatures, so preheating and using appropriate filler materials are recommended for successful welding.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
Phosphorous bronze rods are available in diameters ranging from 1/8" to 12" and lengths up to 20 feet. Finishes include hot-rolled, cold-rolled, extruded, polished, and custom-machined.
You’ll find Phosphorous Bronze Bars and Rods utilized across various industries thanks to their outstanding mechanical and anti-corrosive properties. In the electrical sector, they’re commonly used for connectors, switches, and contact springs due to their impressive conductivity and fatigue strength. In marine and industrial engineering, these bars are ideal for bushings, bearings, gears, and shafts, where wear and corrosion resistance are crucial. They also find their place in musical instruments, automotive parts, and heavy-duty machinery components. The alloy’s superior machinability and resilience make it a go-to for precision parts in demanding mechanical systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
