Kanish Metals has built a solid reputation as a leading manufacturer and supplier of Nitronic XM-19 Bars and Rods in Dubai, UAE. Their products are celebrated for top-notch quality, exceptional corrosion resistance, strength, and durability. Nitronic XM-19 (UNS S20904) is a high-performance austenitic stainless steel alloy enriched with nitrogen, specifically engineered to resist pitting, stress corrosion cracking, and general corrosion, even in the toughest environments. Thanks to its impressive blend of mechanical properties and corrosion resistance, it’s a go-to choice for critical applications across various industries. Kanish Metals ensures that their Nitronic XM-19 Bars and Rods are manufactured with precision and rigorous quality control, guaranteeing dimensional accuracy, toughness, and long-lasting performance.
These bars and rods consist of 18–20% chromium, 12–14% nickel, 0.20–0.35% nitrogen, 1.25–2% manganese, along with trace amounts of silicon and carbon. They boast a tensile strength of around 860–900 MPa, yield strength of 450–500 MPa, and an elongation of 35%. The alloy is known for its remarkable mechanical stability, wear resistance, and outstanding ability to withstand stress corrosion cracking, even in environments rich in chlorides and oxidizing agents.
| Grade | Nitronic Alloy XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

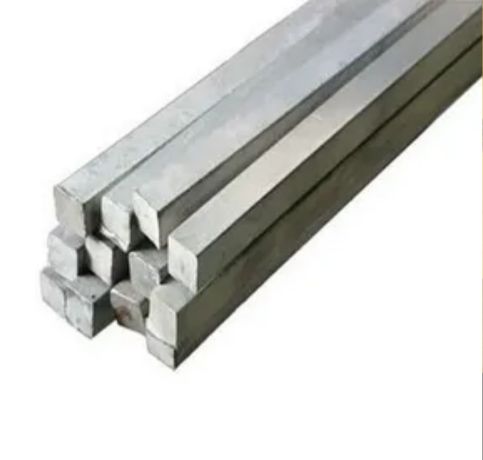

| Nitronic XM 19 Square bar size | 4 to 100mm |

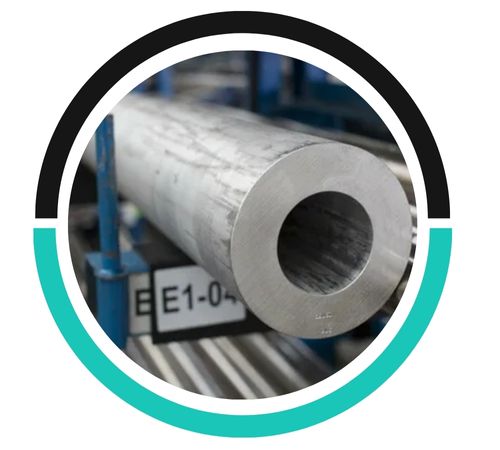

| Nitronic Alloy XM 19 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

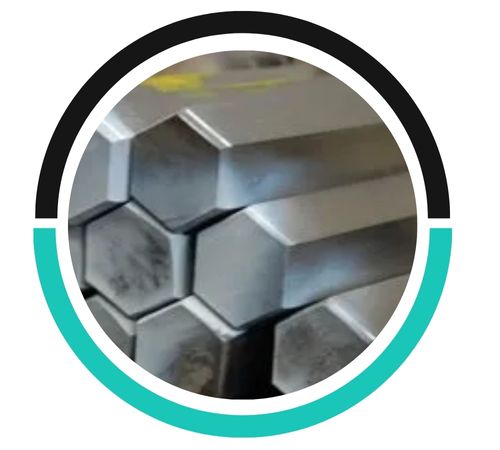

| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

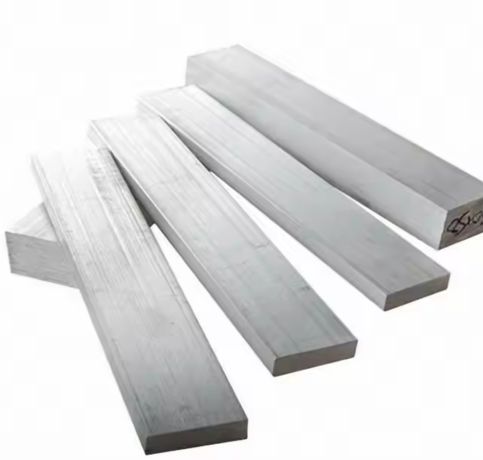

| Nitronic Alloy XM 19 Rectangles Size | 33 x 30mm to 295 x 1066mm |

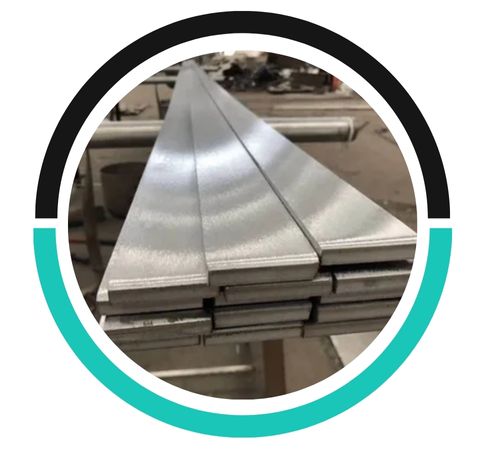

| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic XM 19 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy XM 19 Section | 3.0 to 12.0mm thickness |

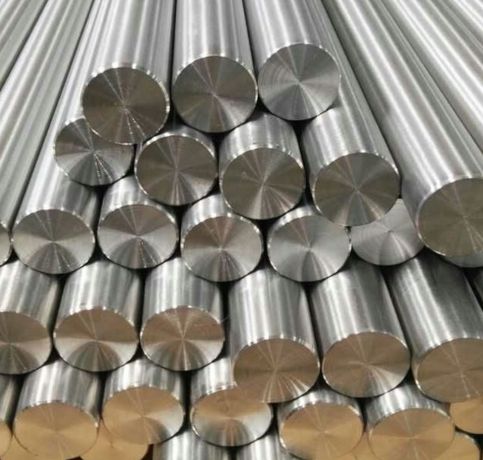

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic XM 19 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy XM 19 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic XM 19 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy XM 19 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic XM 19 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic XM 19 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic XM 19 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
Common diameters for Nitronic XM-19 rods typically range from 1/8 inch (3.175 mm) to 6 inches (152.4 mm), though custom sizes may also be available depending on the supplier.
Nitronic XM-19 rods typically come in standard sizes ranging from 1/8 inch to 6 inches in diameter, with lengths varying from 12 to 20 feet, depending on supplier and application.
Yes, Nitronic XM-19 bar can be welded. It is known for its excellent weldability, though proper procedures and filler materials are essential for maintaining its mechanical properties and corrosion resistance.
Nitronic XM-19 Bars and Rods find their place in industries that demand high strength, corrosion resistance, and reliability under challenging conditions. They are perfect for marine applications, chemical processing equipment, seawater systems, pump shafts, valves, and fasteners. Their robust performance under stress makes them ideal for use in nuclear power plants, aerospace components, and oil and gas sectors. Additionally, they are utilized in food processing, pharmaceutical, and desalination plants where hygiene, durability, and corrosion resistance are paramount. With their dependable combination of toughness, strength, and corrosion resistance, Nitronic XM-19 Bars and Rods are a top choice for critical industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
