Kanish Metals stands out as a trusted manufacturer and supplier of Nitronic 40 Bars and Rods, proudly catering to clients throughout Dubai, UAE. We specialize in high-performance stainless steel solutions that adhere to strict industry standards for strength, corrosion resistance, and versatility. Nitronic 40 is celebrated for its remarkable mechanical properties and resistance to oxidation, making it perfect for critical applications in aerospace, chemical processing, and marine environments. At Kanish Metals, we prioritize precision manufacturing, consistent quality, and timely delivery to meet the unique needs of every customer. Our dedication to excellence has established us as a reliable source for premium alloy products in the Middle East and beyond.
Nitronic 40 is a nitrogen-strengthened austenitic stainless steel alloy, containing about 19–21% chromium and 8.5–10.5% nickel, along with some manganese and nitrogen. This unique blend boosts its corrosion resistance and strength, even under high temperatures. On the mechanical side, Nitronic 40 boasts a tensile strength of around 750 MPa, a yield strength of 450 MPa, and an elongation of about 40%. It also retains good toughness and oxidation resistance in both cryogenic and high-temperature settings, making it well-suited for high-stress environments and demanding industrial applications.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

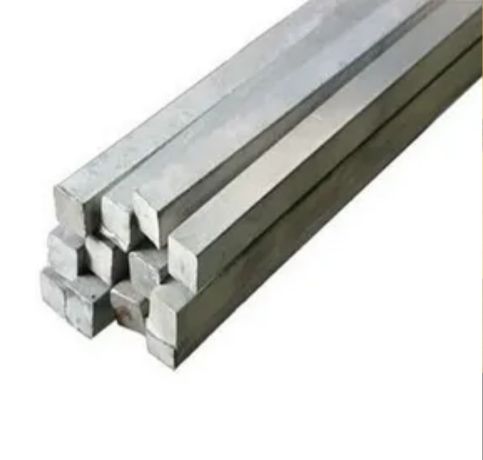

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

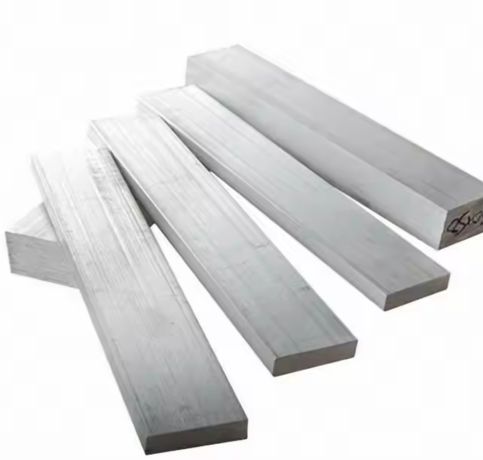

| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |

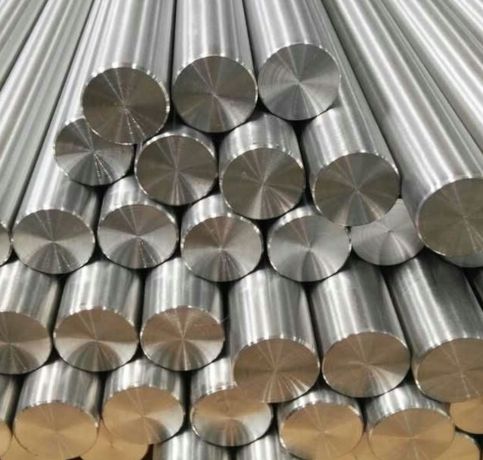

| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
Nitronic 40 Bars and Rods are essential in industries that require a perfect mix of strength, corrosion resistance, and thermal stability. In aerospace, they are used in structural components, fasteners, and hydraulic systems thanks to their impressive strength-to-weight ratio and oxidation resistance. In the chemical and petrochemical sectors, Nitronic 40 is ideal for heat exchangers, reactors, and pressure vessels that come into contact with corrosive substances. Additionally, it’s utilized in marine environments, cryogenic systems, and nuclear applications, where toughness and reliability are paramount. These attributes make Nitronic 40 a versatile and high-performing material for critical operations.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
