Inconel Flat Bars

Kanish Metals stands out as a reliable manufacturer and supplier of Inconel Flat Bars in Dubai, UAE. They pride themselves on delivering top-notch products that boast remarkable corrosion resistance, impressive strength, and outstanding performance even in high-temperature settings. Crafted from nickel-chromium-based superalloys, these Inconel Flat Bars are designed to endure tough chemical, marine, and high-heat environments. With a commitment to strict quality control, Kanish Metals ensures that each bar meets high standards for dimensional accuracy, toughness, and durability, making them perfect for industries like chemical processing, aerospace, marine, and power generation. They offer a variety of grades and sizes to cater to a wide range of engineering needs.

Inconel Flat Rods Exporter in UAE, Alloy Flat Bars Stockist in Dubai, Inconel Flat Bar Supplier in UAE, Inconel Cold Drawn Flat Bars Distributor in Sharjah, Alloy Flat Rods Stockist Ajman Inconel Flata Bars Price in Ajman, Inconel Flat Bar & Rods Jebel Ali, Inconel Bright Flat Bars Weight Calculator in Sharjah, Inconel Alloy Flat Bar Supplier in Jebel Ali, Alloy Cold Drawn Flat Rods Exporter in Abu Dhabi

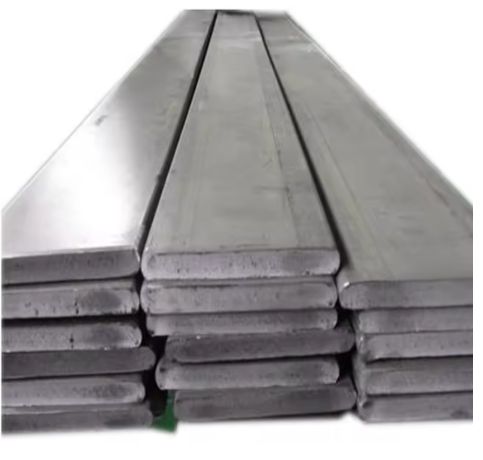

Custom-Finished Inconel Flat Bars

Black Inconel Alloy Flat Bars

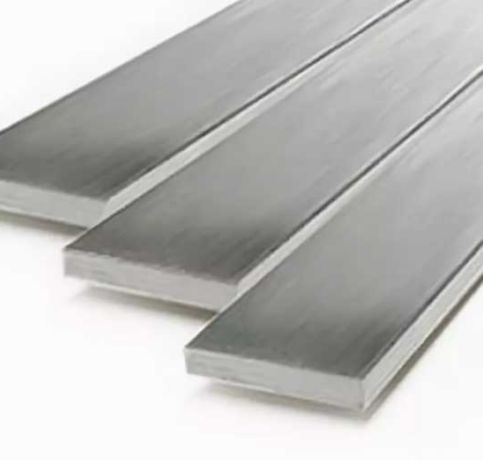

Ground Inconel Alloy Flat Rods

What is Inconel Hex Bars?

These Inconel Flat Bars primarily consist of nickel, with carefully controlled amounts of chromium, iron, molybdenum, and trace elements like titanium or cobalt, depending on the specific grade. They deliver tensile strengths between 750 and 1100 MPa, yield strengths from 350 to 700 MPa, and elongation rates of 20 to 40%, varying by alloy. Not only do they excel in corrosion and oxidation resistance, but they also maintain mechanical stability at high temperatures, all while being easy to weld and form for various industrial applications.

Inconel Polished Flat Bars Size Chart in UAE, Inconel Bright Flat Rods Exporter in Al Ain, Alloy Flat Bar Manufacturer in Ajman, Inconel Flat Bars Distributor in UAE, Inconel Alloy Flat Rods Dealer in Abu Dhabi, Inconel Flat Bars Supplier in Sharjah, Inconel Flat Bars Stockist in Jebel Ali

Inconel Flat Bars Specifications

Size range	12 mm – 46 mm (1/2 inch- 1 ¾ inch)
Flat Bar Size Range	Thickness: 2 -100mm / Width: 10 to 500mm
Manufacturing Technique	Hot Rolled, Cold Drawn, Cold Rolled, Forged
Crack Test	Magnetic Particle Inspection (MPI)
Length	2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement
Size Tolerances	h10 and h11
Chamfering	Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine
Surface Finish	Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black
Heat Treatment	Annealed, Solution Annealed
Tolerance	H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements

You Need Our Support, to Have Any Projects?

Test Certificate

Why Kanish Metals?

Packaging

Inconel Flat Bars Chemical Composition

	Ni	Cr	Fe	Mo	Nb+Ta	C	Mn	Si	Ph	S	Al	Ti	Co
Min	Bal	20	–	8	3.15	–	–	–	–	–	–	–	–
Max	–	23	5	10	4.15	0.10	0.50	0.50	0.015	0.015	0.40	0.40	1.0

Inconel Flat Bars Mechanical Properties

0.2% Proof Stress	Tensile Strength	Elongation	Reduction of area	Hardness
MPA	MPA	%	%	HRB
Min	Min	Min	Min	Min
414	827	30	40	145

Inconel Flat Bar Sizes

Flat Size	KG’s per Metre	Standard Length (m)
10 x 3	0.24	6.0
13 x 3	0.31	6.0
13 x 5	0.46	6.0
16 x 3	0.38	6.0
16 x 5	0.64	6.0
16 x 8	1.03	6.0
20 x 3	0.48	6.0
20 x 5	0.81	6.0
20 x 6	0.97	6.0
20 x 10	1.61	6.0
25 x 3	0.60	6.0
25 x 5	1.01	6.0
25 x 6	1.21	6.0
25 x 8	1.61	6.0
25 x 10	2.01	6.0
25 x 12	2.41	6.0
32 x 3	0.77	6.0
32 x 5	1.29	6.0
32 x 6	1.55	6.0
32 x 8	2.06	6.0
32 x 10	2.58	6.0
32 x 12	3.09	6.0
40 x 3	0.97	6.0
40 x 5	1.61	6.0
40 x 6	1.93	6.0
40 x 8	2.58	6.0
40 x 10	3.22	6.0
40 x 12	3.86	6.0
40 x 16	5.15	6.0
40 x 20	6.14	6.0
50 x 3	1.21	6.0
50 x 5	2.01	6.0
50 x 6	2.41	6.0
50 x 8	3.22	6.0
50 x 10	4.02	6.0
50 x 12	4.83	6.0
50 x 16	6.44	6.0
50 x 20	8.05	6.0
50 x 25	10.1	6.0
65 x 3	1.57	6.0
65 x 5	2.62	6.0
65 x 6	3.14	6.0
65 x 8	4.18	6.0
65 x 10	5.23	6.0
65 x 12	6.28	6.0
65 x 16	8.37	6.0
65 x 20	10.5	6.0
65 x 25	13.1	6.0
75 x 5	3.02	6.0
75 x 6	3.62	6.0
75 x 8	4.83	6.0
75 x 10	6.04	6.0
75 x 12	7.24	6.0
75 x 16	9.66	6.0
75 x 20	12.1	6.0
75 x 25	15.1	6.0
75 x 40	24.1	6.0
90 x 5	3.62	6.0
90 x 6	4.35	6.0
90 x 8	5.79	6.0
90 x 10	7.24	6.0
90 x 12	8.69	6.0
100 x 5	4.02	6.0
100 x 6	4.83	6.0
100 x 8	6.44	6.0
100 x 10	8.05	6.0
100 x 12	9.66	6.0
100 x 16	12.9	6.0
100 x 20	16.1	6.0
100 x 25	20.1	6.0
100 x 50	40.2	6.0
110 x 6	5.31	6.0
110 x 8	7.08	6.0
110 x 10	8.85	6.0
110 x 12	10.6	6.0
130 x 5	5.23	6.0
130 x 6	6.28	6.0
130 x 8	8.37	6.0
130 x 10	10.5	6.0
130 x 12	12.6	6.0
130 x 16	16.7	6.0
130 x 20	20.9	6.0
130 x 25	26.2	6.0
150 x 5	6.04	6.0
150 x 6	7.24	6.0
150 x 8	9.66	6.0
150 x 10	12.1	6.0
150 x 12	14.5	6.0
150 x 16	19.3	6.0
150 x 20	24.1	6.0
150 x 25	30.1	6.0
150 x 50	60.4	6.0
180 x 5	7.24	6.0
180 x 6	8.69	6.0
180 x 10	14.5	6.0
180 x 12	17.4	6.0
180 x 16	23.2	6.0
180 x 20	29.0	6.0
180 x 25	36.2	6.0
200 x 6	9.66	6.0
200 x 8	12.9	6.0
200 x 10	16.1	6.0
200 x 12	19.3	6.0
200 x 16	25.7	6.0
200 x 20	32.2	6.0
200 x 25	40.3	6.0
250 x 6	12.1	6.0
250 x 8	16.1	6.0
250 x 10	20.1	6.0
250 x 12	24.1	6.0
250 x 16	32.2	6.0
250 x 20	40.2	6.0
250 x 25	50.3	6.0
300 x 6	14.5	6.0
300 x 8	19.3	6.0
300 x 10	24.1	6.0
300 x 12	29.0	6.0
300 x 16	38.6	6.0
300 x 20	48.3	6.0
300 x 25	60.4	6.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Inconel Flat Bars and Rods Types

Inconel Flat Rods Dealer in Abu Dhabi, Inconel Flat Bars Manufacturer in Abu Dhabi, Inconel Cold Drawn Flat Bar Supplier in Al Ain, Inconel Flat Bars Size Chart, Inconel Rods Price in Ajman, Stockist of Inconel Flat Bars in Jebel Ali, Weight Calculator of Flat Rods Supplier in UAE, Alloy Flat Bar Price List in Dubai

Frequently Asked Questions (FAQ)

Are Inconel Flat Bars Customizable?

Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@kanishmetals.ae

How Do I Maintain Inconel Flat Bars?

To maintain Inconel Flat Bars, ensure proper storage in dry, cool environments to prevent oxidation. Regularly inspect for wear or damage, and clean with non-abrasive methods to preserve surface integrity.

Are Inconel Flat Bars Suitable For Cryogenic Applications?

Yes, Inconel Flat Bars are suitable for cryogenic applications. They retain their strength and resistance to brittleness at extremely low temperatures, making them ideal for use in cryogenic environments.

Inconel Flat Bars Uses

Inconel Flat Bars find their place in industries that demand materials capable of withstanding extreme conditions. They’re perfect for components in gas turbines, heat exchangers, chemical processing equipment, aerospace fasteners, marine hardware, and parts for high-temperature furnaces. Their exceptional resistance to pitting, stress corrosion cracking, and oxidation makes them ideal for use in nuclear power plants, petrochemical facilities, offshore oil and gas operations, and seawater systems. Plus, they’re utilized in high-performance automotive and industrial machinery components where durability, reliability, and thermal stability are essential. Inconel Flat Bars offer a dependable mix of strength, corrosion resistance, and high-temperature stability, making them a top choice for many applications.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
