Kanish Metals has earned a solid reputation as a reliable manufacturer and supplier of Hastelloy C22 Bars and Rods in Dubai, UAE. They pride themselves on delivering top-notch products that are built to endure even the harshest environments. These bars and rods are particularly known for their exceptional corrosion resistance, making them perfect for industries that face both oxidizing and reducing conditions. With a strong focus on quality, Kanish Metals guarantees durability, precision, and performance in every item they produce. Their Hastelloy C22 Bars and Rods are highly valued across various industrial sectors for their impressive mechanical strength and long-lasting service life.
The composition of Hastelloy C22 Bars and Rods includes nickel, chromium, and molybdenum, along with some tungsten and iron, which boosts their resistance to both oxidizing and reducing agents. This unique blend of materials offers remarkable protection against pitting, crevice corrosion, and stress-corrosion cracking. On the mechanical side, they showcase high tensile strength, good ductility, and excellent toughness, even in high-temperature settings. Their outstanding weldability and formability make them ideal for critical applications in tough operating conditions.
| Standard | ASTM B574, ASME SB574 |

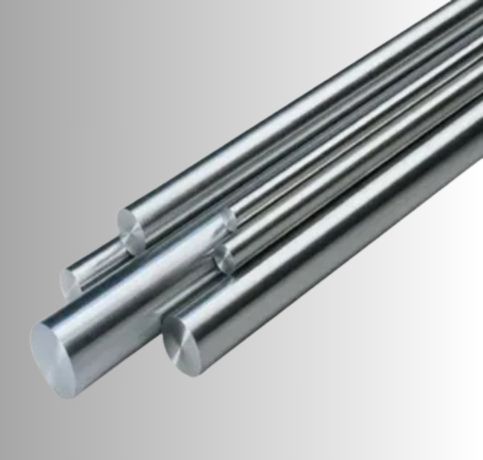

| Round Bar Size | 3mm~ 800mm |

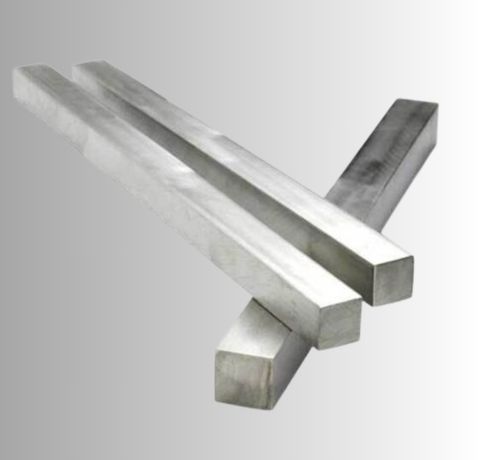

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

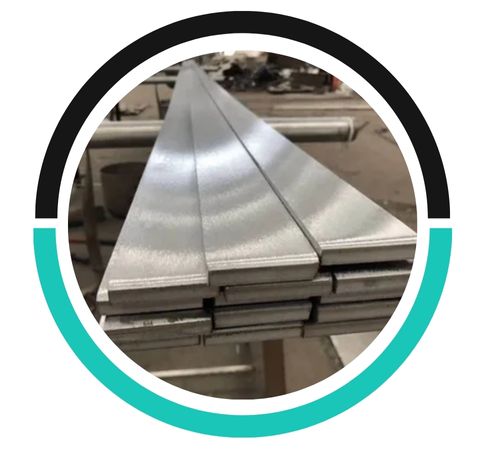

| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |

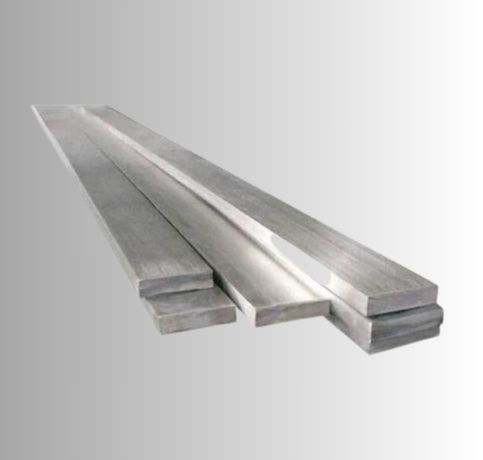

| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
| ALLOY C-22 (Ni/22Cr/13Mo/3Fe/3W) / INCONEL 622/C-22 Round Bar | Dimension |
|---|---|
| cold drawn, solution annealed | Dia=16.0 mm, Weight=1.75 kg/m |
| hot worked, solution annealed, peeled | Dia=20.0 mm, Weight=2.6 kg/m |
| hot worked, solution annealed, peeled | Dia=25.4 mm, Weight=4.5 kg/m |
| hot worked, solution annealed, peeled | Dia=30.0 mm, Weight=6.14 kg/m |
| hot worked, sol annealed, peeled | Dia=38.1 mm, Weight=10.1 kg/m |
| extruded, machined, solution annealed | Dia=45.0 mm, Weight=13.15 kg/m |
| hot worked, solution annealed, peeled | Dia=50.8 mm, Weight=18.0 kg/m |
| extruded, machined, solution annealed | Dia=70.0 mm, Weight=35.0 kg/m |
| solution annealed, peeled | Dia=82.55 mm, Weight=47.6 kg/m |
| hot worked, solution annealed, peeled | Dia=101.6 mm, Weight=72.1 kg/m |
| forged, solution annealed, peeled | Dia=115.0 mm, Weight=89.4 kg/m |
| forged, solution annealed, peeled | Dia=130.0 mm, Weight=113.9 kg/m |
| forged, solution annealed, peeled | Dia=150.0 mm, Weight=152.15 kg/m |
| forged, turned | Dia=165.1 mm, Weight=187 kg/m |
Yes, Hastelloy C22 Bars are highly corrosion-resistant, particularly against pitting, crevice corrosion, and stress corrosion cracking in harsh environments. They excel in resisting acids, oxidizing agents, and chloride-induced corrosion.
Yes, Hastelloy C22 rods can be customized in size and length to meet specific industrial requirements. Manufacturers often offer tailored dimensions to suit diverse applications.
Hastelloy C22 bars perform exceptionally well in high-temperature environments due to their superior resistance to oxidation and thermal stability. They maintain strength and corrosion resistance under extreme conditions.
Hastelloy C22 Bars and Rods find their place in various industries that demand superior corrosion resistance. They’re commonly used in chemical processing equipment, heat exchangers, scrubbers, and evaporators that handle aggressive media. In marine engineering, they shine in seawater systems thanks to their resistance to chloride-induced corrosion. The pharmaceutical and food processing industries rely on them for hygiene-sensitive applications, while power generation plants utilize them in flue gas scrubbers and waste treatment systems. Their ability to perform reliably in severe environments makes them a go-to choice for demanding industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
