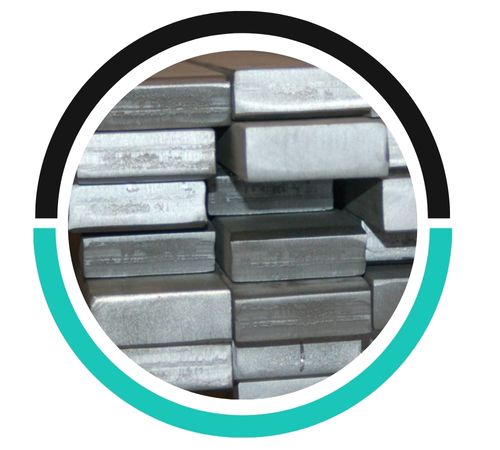

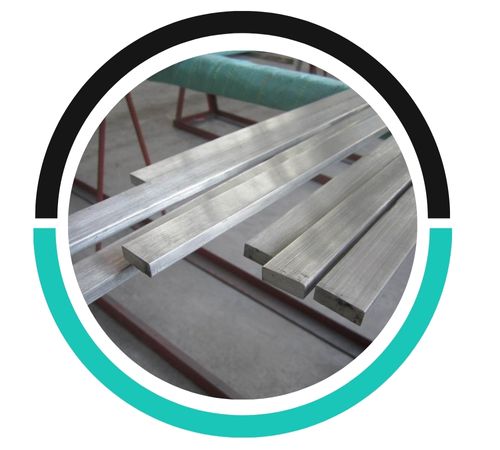

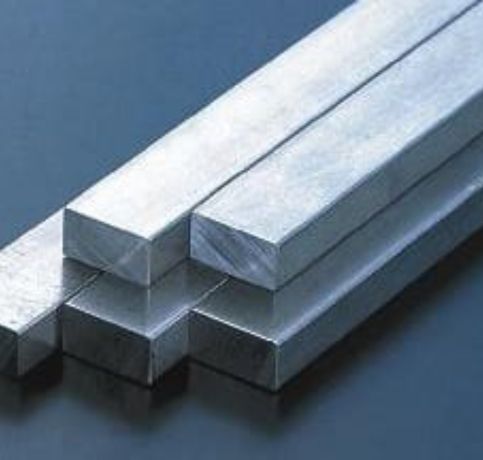

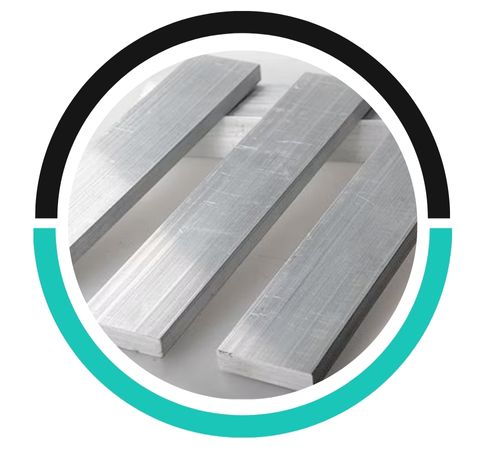

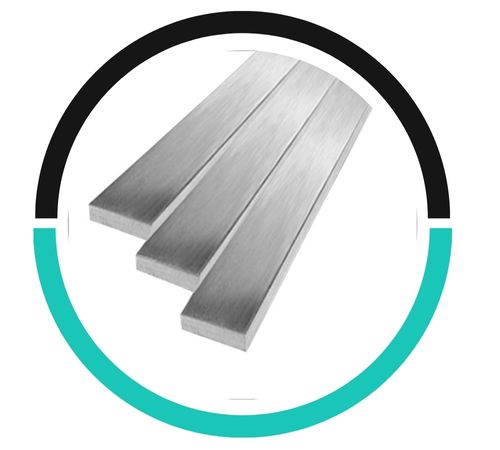

Kanish Metals stands out as a top manufacturer and supplier of **Duplex Steel Rectangular Bars** right from **Dubai, UAE**. We take pride in offering high-quality stainless steel products that are designed for exceptional strength and durability. Our focus is on providing corrosion-resistant and high-performance duplex steel bars that are perfect for tough industrial and structural applications. Crafted in line with international standards, our rectangular bars are celebrated for their remarkable strength, excellent weldability, and long-lasting service life. At Kanish Metals, we’re dedicated to fulfilling the varied needs of industries such as oil & gas, construction, marine, and chemical processing, ensuring timely deliveries and dependable products.
**Duplex Steel Rectangular Bars** are crafted from duplex stainless steel grades like **S31803 and S32205**, which include about **22% chromium, 5–6% nickel, 3% molybdenum**, and **0.14–0.20% nitrogen**. These bars feature a unique dual-phase microstructure of ferrite and austenite, which enhances their strength and resistance to corrosion. They boast a **tensile strength of 620–880 MPa**, **yield strength of at least 450 MPa**, and an **elongation of around 25%**. With their superior resistance to stress corrosion cracking, pitting, and crevice corrosion, duplex rectangular bars are perfect for use in aggressive and high-stress environments.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Rectangular
Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Duplex Steel Rectangular Bars can withstand moderate to high temperatures, but their performance may degrade at temperatures above 300°C (572°F). For extreme heat, other alloys like austenitic stainless steel are preferred.
Yes, Duplex Steel Rectangular Bar are highly recyclable. Their durable composition allows them to be melted down and repurposed in various applications without significant loss of material properties.
Duplex Steel Rectangular Bars have excellent natural corrosion resistance due to their alloy composition. However, in highly aggressive environments, additional coatings or treatments may be recommended for enhanced protection.
Across various industries, **Duplex Steel Rectangular Bars** are valued for their **strength, corrosion resistance, and structural integrity**. In the **oil and gas sector**, they find applications in offshore platforms, support frames, and pipe racks, thanks to their resilience against seawater and harsh chemicals. In **construction**, they are essential for load-bearing frameworks, bridges, and building reinforcements. The **marine industry** relies on their durability for shipbuilding and dock structures. In **chemical and petrochemical plants**, these bars are utilized for process equipment and storage tanks.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
