Kanish Metals stands out as a top-notch manufacturer and supplier of **Carbon Steel Hex Bars and Rods** right from **Dubai, UAE**. We specialize in crafting precision-engineered carbon steel products tailored for both industrial and structural needs. Our hex bars and rods are celebrated for their exceptional strength, excellent machinability, and precise dimensions, making them perfect for high-performance mechanical components. Adhering to international standards, Kanish Metals caters to various industries, including automotive, construction, general engineering, and fabrication. We pride ourselves on providing reliable, cost-effective solutions, ensuring prompt service and consistent product quality throughout the UAE and beyond.
**Carbon Steel Hex Bars and Rods** are crafted from medium carbon steel grades like **EN-8, EN-9, and C45**, which contain about **0.35–0.60% carbon** and **0.60–1.00% manganese**, along with trace amounts of **silicon, sulfur, and phosphorus**. These bars deliver **tensile strength between 550–800 MPa** and **yield strength ranging from 350–600 MPa**, depending on the specific grade and heat treatment. Hex bars are known for their excellent machinability, good wear resistance, and moderate toughness. They can also undergo heat treatment to boost surface hardness and mechanical strength, making them ideal for precision-machined components that face mechanical stress and friction.
Carbon Steel Hex Bar Range: 3.17 MM TO 350 MM DIA
Steel Low Carbon Hexagon Rod Size: 2mm ~ 100mm
High CS Hollow Hex Bar Thickness : 50 – 6000 mm Long
Carbon Steel Hexagonal Bright Bar Technique :

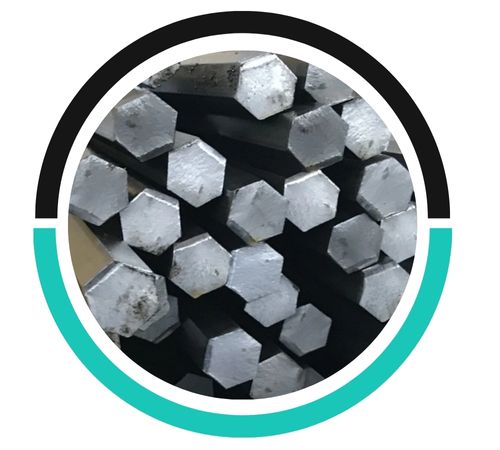

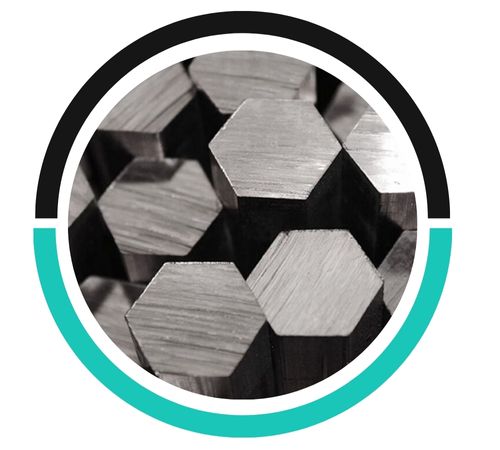

Black Carbon Steel Hot Rolled Hex Bar Benefits :
| Grade | Mn | Si | C | Cr | P | Ni | S | Mo | Cu | fe | Vanadium (max) | Niobium (max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EN19 | .50 to .80 | .10 to .35 | .35 to .45 | .90 to 1.40 | .04 | to | .04 | .20 to .40 | ||||
| EN-9 | .50 to .80 | .05 to .35 | .50 to .60 | .040 MAX | .040 MAX | |||||||
| A36 | 1.03% | .28% | .25 – .290 % | .04% | .05% | .20% | 98.00% | |||||
| A105 | .60-1.05 | .10- .35 | .35 | .3 | .035 | .4 | .04 | .12 | .4 | .08 | .02 | |
| A353 | .50 to 1.00 | .10 to .35 | .10 to .20 | .75 to 1.25 | Max .040 | 1.00 to 1.50 | Max .040 | .08 to .15 | ||||
| EN 47 | .50- .80% | .50% max | .45- .55% | .80-1.20% | .06% max | .06% max | ||||||
| EN 45 | .50 to .90% | 0/1 to .35 | .75 to .90% | .04% Max | .04% Max | |||||||
| EN24 | .45 – .70 | .10 – .35 | .36 – .44 | 1.00 – 1.40 | Max .035 | 1.30 – 1.70 | Max .040 | .20 – .35 | ||||
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
Yes, carbon steel hex bars can attract magnets because carbon steel is a ferromagnetic material, meaning it has magnetic properties and can be magnetized.
Yes, carbon steel hex bar can be recycled after use. It is highly recyclable and can be melted down and reused in the production of new steel products without losing quality.
Carbon steel hex bars and rods come in various grades, including mild steel, medium carbon steel, and high carbon steel. Common types include ASTM A36, A105, A529, A992, and 1045.
You’ll find **Carbon Steel Hex Bars and Rods** widely utilized across the **automotive, construction, machinery, and fabrication sectors** thanks to their **high strength and geometric precision**. In the **automotive industry**, they’re essential for bolts, shafts, studs, and other fasteners that require precise threading and robust strength. In **construction**, they play a vital role as connectors, tie rods, and reinforcements for frameworks. In **general engineering**, hex bars are indispensable in tool manufacturing, machine parts, and precision fixtures. Their unique shape allows for easy wrenching and assembly in various mechanical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
