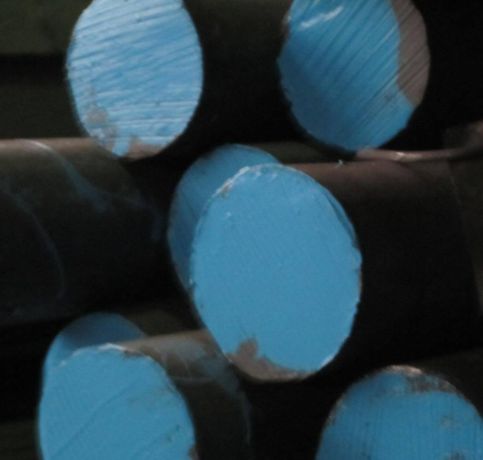

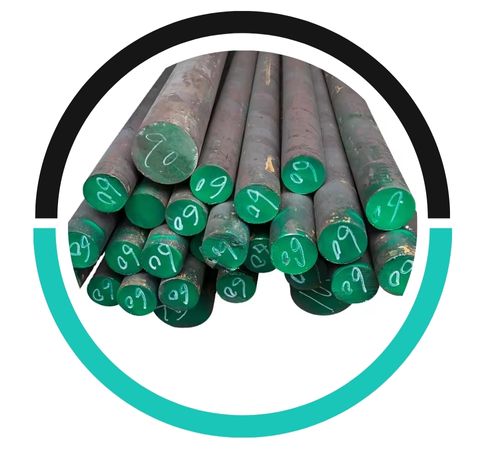

Kanish Metals is a reliable maker and supplier of Tool and Die Steel S7 bars in Dubai, UAE, providing high-quality steel bars designed for resistance to impact and durability in heavy-duty industrial applications. Renowned for their outstanding toughness and shock resistance, S7 steel bars are extensively employed in tooling and die sectors where high-impact strength is paramount. Kanish Metals guarantees each batch of S7 steel bars conforms to international quality standards of mechanical properties and dimensional accuracy. Operating in auto, aerospace, and heavy machinery industries, Kanish Metals provides consistent quality S7 steel bars with guaranteed delivery and first-rate customer service.
Tool and Die Steel S7 bars are produced using an air-hardening, shock-resistant alloy steel with approximately 0.5% carbon, 1.3% chromium, and other minor constituents such as molybdenum and vanadium. This composition offers good toughness, high impact strength, and wear resistance. S7 steel is heat-treatable to obtain hardness of up to 58 HRC while still possessing excellent shock absorption properties. It has good dimensional stability when heat-treated and provides excellent resistance to chipping and cracking when subjected to high impact or shock loads.
| ASTM A681-2008 | C | Si | Mn | P | S | Cr | V | Mo | ||||||
| S7/T41907 | 0.45 | 0.55 | 0.20 | 1.00 | 0.20 | 0.90 | 0.03 | 0.03 | 3.00 | 3.50 | – | 0.35 | 1.30 | 1.80 |
| DIN ISO 4957 | C | Si | Mn | P | S | Cr | V | Mo | ||||||
| 1.2355/50CrMoV13-15 | 0.45 | 0.55 | 0.20 | 0.80 | 0.50 | 0.90 | 0.03 | 0.02 | 3.00 | 3.50 | 0.15 | 0.35 | 1.30 | 1.70 |
| Properties | Metric |
| Hardness, Rockwell C (air cooled from 941°C, 649°C temper temperature) | 41 |
| Hardness, Rockwell C (air cooled from 941°C, 449°C temper temperature) | 53 |
| Hardness, Rockwell C (air cooled from 941°C, 149°C temper temperature) | 57 |
| Modulus of elasticity | 207 GPa |
| Charpy impact (V-notch; air cooled from 941°C; 425°C temper temperature) | 13.6 J |
| Charpy impact (V-notch; air cooled from 941°C; 649°C temper temperature) | 16.3 J |
| Charpy impact (V-notch; air cooled from 941°C; 200°C temper temperature) | 16.9 J |
| Machinability (1% carbon steel) | 70.0 – 75.0% |
| Poisson’s ratio | 0.27-0.30 |
| Country | USA | German |
| Standard | ASTM A681 | DIN EN ISO 4957 |
| Grades | S7/T41907 | 1.2355/50CrMoV13-15 |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Thermal expansion | 12.6 x 10-6/ºC | 20-200 | – |
The standard annealing temperature for Tool and Die Steel S7 bars is typically around 1,600°F to 1,650°F (871°C to 899°C), followed by slow cooling to relieve internal stresses.
Yes, Tool and Die Steel S7 bars are available in custom lengths and shapes, often tailored to specific customer requirements, ensuring versatility for various tooling and die applications.
Tool and Die Steel S7 bars are widely applied in applications involving toughness and resistance to shock. They are perfect for the production of punches, dies, shear blades, hammers, and chisels. The auto and heavy machinery industries depend on S7 steel bars for impact tools and parts that undergo abrupt stresses. They also find application in forging dies, cold-heading tools, and extrusion tooling, where shock and wear resistance is paramount. S7 steel bars deliver tough, high-performance solutions for industries requiring dependable impact-resistant tooling materials.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
